NUC - T1-AL50 Intel® Alder Lake/Raptor Lake-P/H Series

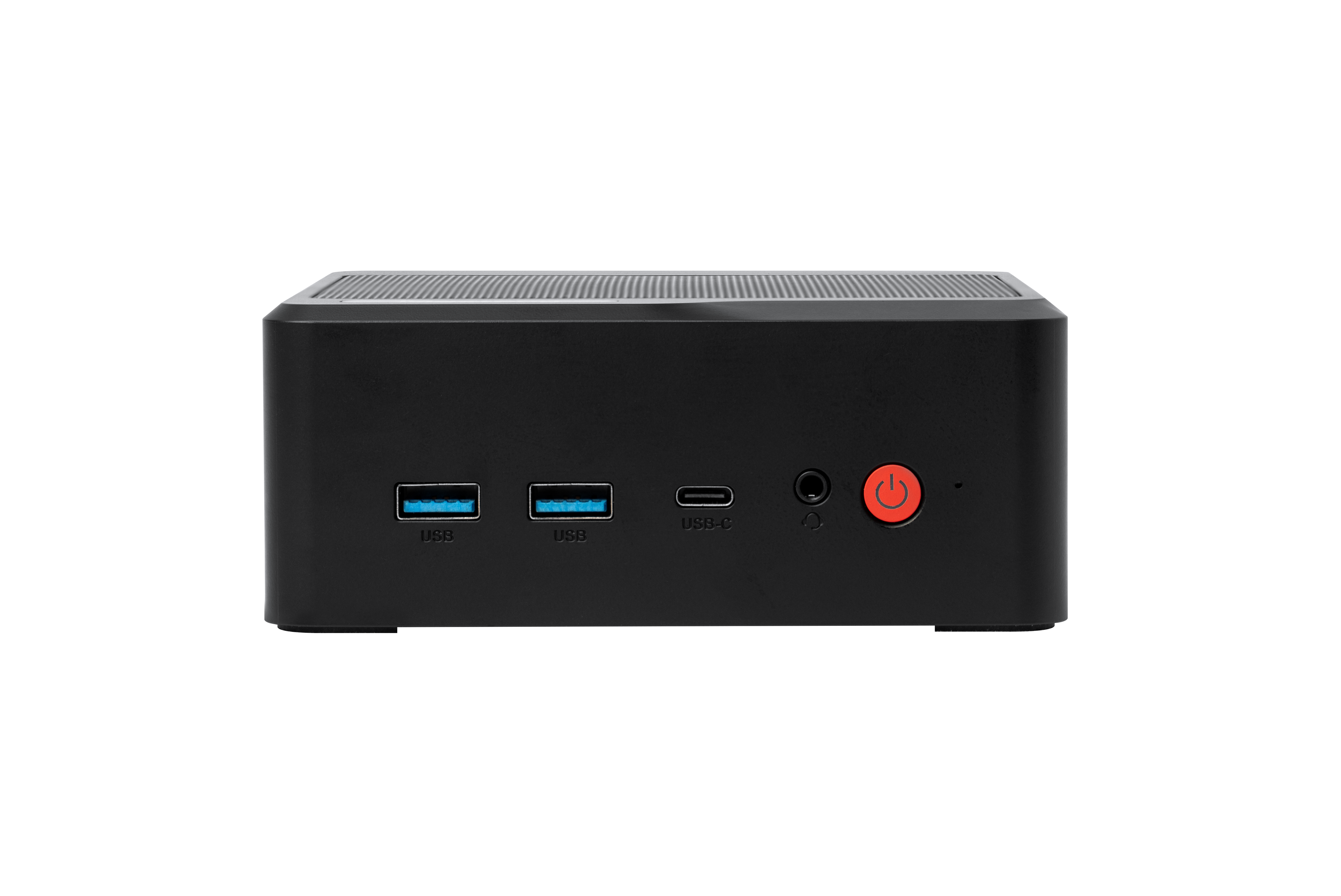

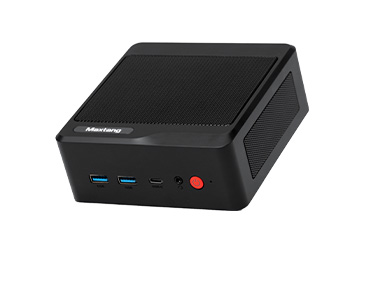

T1-AL50
Product Description

What Is the T1-AL50 Intel® Core™ NUC Designed For?

The Maxtang T1-AL50 is an ultra-compact NUC powered by 12th and 13th Gen Intel® Core™ Alder Lake and Raptor Lake-P/H Series processors, with configurations offering up to 14 cores and 20 threads. It supports up to 64GB of dual-channel SO-DIMM DDR4 memory, integrated Intel® graphics, and display connectivity through DisplayPort, HDMI, and Thunderbolt™ 4. Dual 2.5GbE LAN, four USB 3.2 ports, two M.2 storage slots, and an M.2 Key E slot for optional Wi-Fi and Bluetooth provide flexible integration for business computing, digital signage, meeting and collaboration systems, self-service kiosks, edge computing, and other space-constrained commercial deployments. The 127 mm × 127 mm × 50.5 mm chassis uses active cooling and supports Windows 10/11 64-bit and Linux 64-bit.

Features

    What Hardware and Connectivity Does the T1-AL50 Offer?

    T1-AL50

    • CPU: 12th/13th Gen Intel® Core™ Alder Lake/Raptor Lake-P/H Series

    • Memory: Dual Channel SO-DIMM DDR4 up to 64GB

    • Display: Intel® Iris® Xe Graphics eligible, displays via DP, HDMI, TBT4

    • I/O Ports: 1 x TBT4, 4 x USB3.2, 2 x LAN(2.5GbE), CTIA Audio Jack

    • Storage & Expansion: M.2 Key M Slot for 2280 NVMe SSD, M.2 Key M Slot for 2280 NVMe/SATA SSD, M.2 Key E Slot for 2230 WiFi&BT

    • Power: 19V/20V DC-in

Which 12th and 13th Gen Intel® Core™ Processors Power the T1-AL50?

Scalable Intel® Core™ P-Series and H-Series Performance
The T1-AL50 supports 12th and 13th Gen Intel® Core™ P-Series and H-Series processors, giving system integrators a choice between efficient 28W configurations and higher-performance 45W options. Available processors include the Core™ i5-1240P, i5-1340P, i7-1260P, i7-1360P, i5-13420H, i5-13500H, and i7-12700H. Depending on the selected processor, configurations provide up to 14 cores and 20 threads or P-core maximum frequencies up to 5.0GHz, making the platform suitable for business multitasking, interactive kiosks, conferencing, visual content playback, and commercial edge computing.

How Does the T1-AL50 Connect Multiple Displays?

Three Display Interfaces for Productive Workspaces
The T1-AL50 provides three display interfaces through one DisplayPort, one HDMI output, and one Thunderbolt™ 4 port. This flexible display connectivity supports productive workspaces, digital signage, meeting and collaboration systems, monitoring interfaces, and other commercial applications that require multiple display connection options from a compact NUC. The datasheet does not specify simultaneous-output combinations or maximum resolutions, so final display support should be confirmed for the selected processor and project configuration.

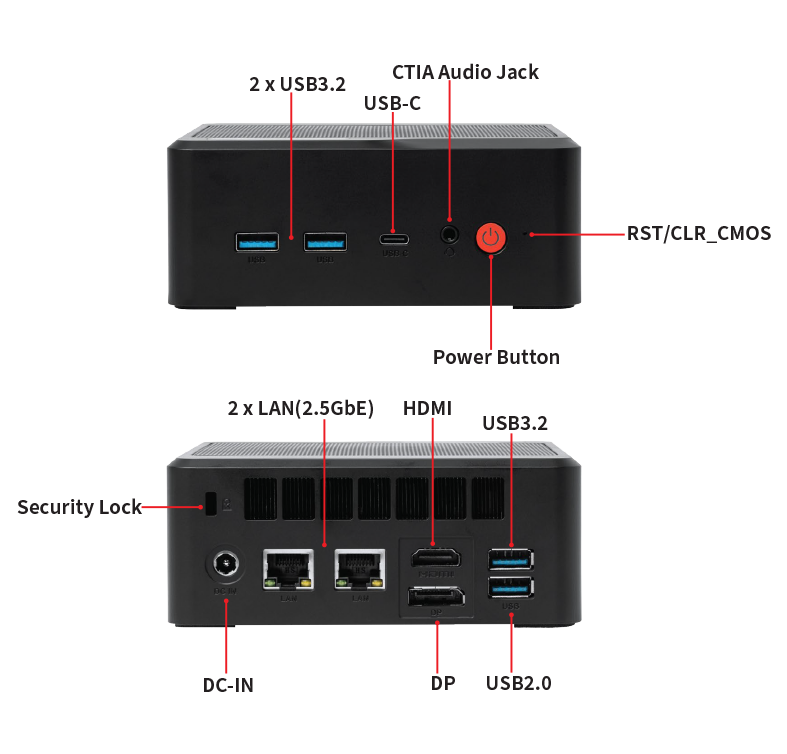

What Ports and Expansion Options Does the T1-AL50 Provide?

Rich I/O for Flexible System Integration
The T1-AL50 combines one Thunderbolt™ 4 port, four USB 3.2 ports, two 2.5GbE RJ45 LAN ports, HDMI, DisplayPort, and a CTIA 2-in-1 audio jack in a compact chassis. Two M.2 Key M 2280 slots support flexible NVMe and SATA storage configurations, while an M.2 Key E 2230 slot supports an optional Wi-Fi and Bluetooth module. This combination of high-speed networking, peripheral connectivity, display outputs, and internal expansion simplifies integration for business workstations, digital signage, self-service kiosks, meeting-room systems, and commercial edge deployments.
Technical Parameters

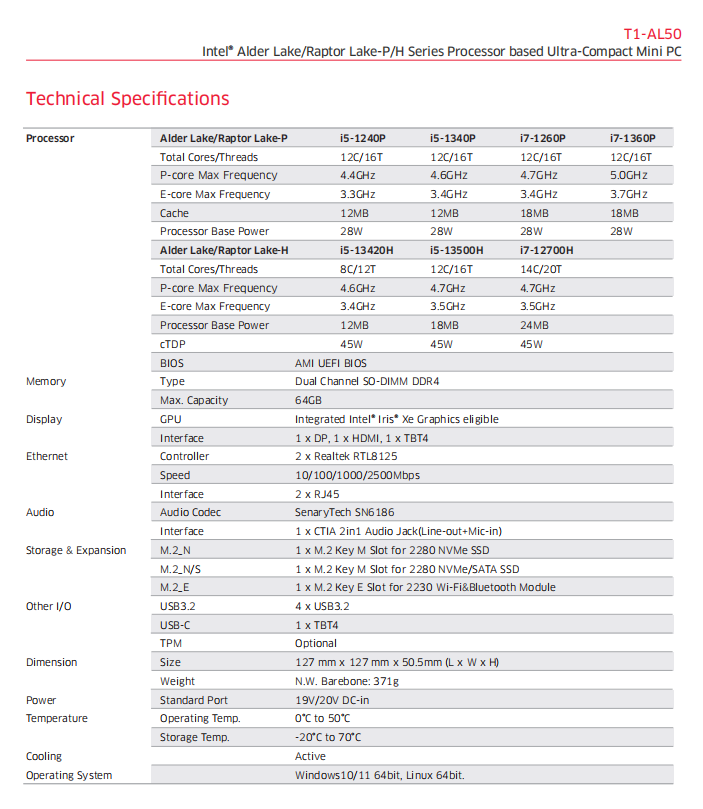

NUC T1-AL50 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processors does the T1-AL50 support?

    The T1-AL50 supports 12th and 13th Gen Intel® Core™ P-Series and H-Series processors, including the Core™ i5-1240P, i5-1340P, i7-1260P, i7-1360P, i5-13420H, i5-13500H, and i7-12700H.

  • How much memory does the T1-AL50 support?

    The T1-AL50 supports up to 64GB of dual-channel DDR4 memory through two SO-DIMM slots.

  • What display interfaces does the T1-AL50 provide?

    The T1-AL50 provides one HDMI output, one DisplayPort, and one Thunderbolt™ 4 port with display connectivity. Supported display combinations and maximum resolutions should be confirmed for the selected processor and project configuration.

  • What storage options are available?

    The T1-AL50 includes one M.2 Key M 2280 slot for an NVMe SSD and a second M.2 Key M 2280 slot that supports either an NVMe or SATA SSD.

  • What ports does the T1-AL50 include?

    The T1-AL50 includes one Thunderbolt™ 4 port, four USB 3.2 ports, two 2.5GbE RJ45 LAN ports, one HDMI output, one DisplayPort, and one CTIA 2-in-1 audio jack.

  • Does the T1-AL50 support high-speed Ethernet?

    Yes. The T1-AL50 provides two 2.5GbE RJ45 LAN ports for high-speed wired networking, separate network connections, and flexible commercial system integration.

  • Does the T1-AL50 support Wi-Fi and Bluetooth?

    Yes. The T1-AL50 includes an M.2 Key E 2230 slot for installing an optional Wi-Fi and Bluetooth module.

  • What are the dimensions of the T1-AL50?

    The T1-AL50 chassis measures 127 mm × 127 mm × 50.5 mm and weighs approximately 371g as a barebone system.

  • What is the operating temperature range of the T1-AL50?

    The T1-AL50 uses active cooling and operates from 0°C to 50°C. Its storage temperature range is -20°C to 70°C.

  • What operating systems does the T1-AL50 support?

    The T1-AL50 supports Windows 10/11 64-bit and Linux 64-bit.

  • What applications is the T1-AL50 designed for?

    The T1-AL50 is suitable for business workstations, digital signage, self-service kiosks, meeting and collaboration systems, interactive displays, commercial edge computing, and other space-constrained embedded applications.
Downloads
Datasheet_T1-AL50
