Product Description

NUC T0-FP750 V2.0 Product Description

The Maxtang T0-FP750 V2.0 NUC offers AMD Ryzen™ 5 6600H, Ryzen™ 9 6900HX, Ryzen™ 7 7735HS, Ryzen™ 7 7840HS, and Ryzen™ 7 8845HS processor options with integrated Radeon™ Graphics. It supports up to 64GB of dual-channel DDR5 memory, two M.2 2280 NVMe SSDs, and display connections through HDMI 2.0, DisplayPort 1.4, and USB4. One 2.5GbE LAN port and an M.2 2230 slot for optional Wi-Fi and Bluetooth expansion provide additional connectivity. With active cooling and a 127 × 135 × 55 mm chassis, the T0-FP750 V2.0 can be configured for office work, digital signage, education, and home entertainment.

Features

    NUC T0-FP750 Features

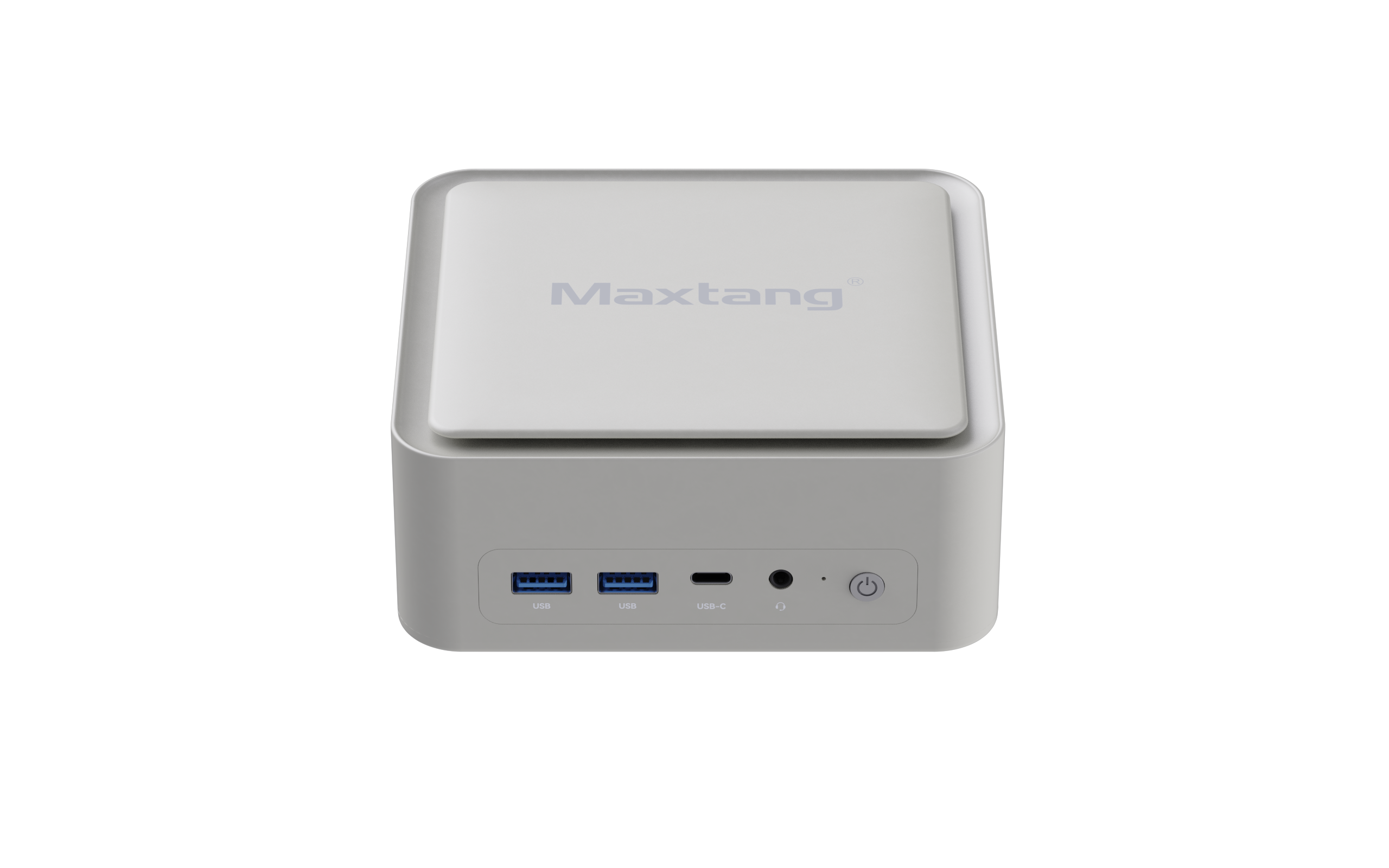

    T0-FP750 front picture.jpg
    • CPU: AMD Ryzen™ 6000/7000/8000 FP7r2 Series Processors

    • Memory: Dual Channel DDR5 for Memory up to 64GB

    • Display: AMD Radeon™ Graphics, Displays via HDMI+DP+USB4

    • I/O Ports: 2xUSB-C, 2xUSB3.2, 1xUSB2.0, 1xLAN(2.5GbE), Audio

    • Storage: 2xM.2 Slots for NVMe SSD

    • Expansion: 1xM.2_2230 Slot for WiFi and Bluetooth

    • Power: 19V/20V DC-in


AMD Ryzen Processor and Radeon Graphics Options for the T0-FP750 V2.0

Choose the Ryzen Configuration You Need
The T0-FP750 V2.0 offers five processor options across AMD Ryzen™ 6000, 7000, and 8000 Series: Ryzen™ 5 6600H, Ryzen™ 9 6900HX, Ryzen™ 7 7735HS, Ryzen™ 7 7840HS, and Ryzen™ 7 8845HS. Integrated Radeon™ graphics vary by processor, with 660M, 680M, and 780M options listed in the datasheet. The Ryzen™ 7 8845HS is the configuration listed with AI engine capabilities; select the processor according to your software and graphics requirements.

Where Can the T0-FP750 V2.0 NUC Be Used?

Flexible for Work, Displays and Entertainment
The T0-FP750 V2.0 can be configured for office workstations, classroom and meeting-room systems, digital signage, and home entertainment. HDMI 2.0, DisplayPort 1.4, and USB4 provide three display connection types, while dual M.2 NVMe storage and up to 64GB of DDR5 memory support applications that need local files and multitasking. Confirm the processor, graphics configuration, and required display resolutions for each deployment.
Gaming Entertainment
Home Entertainment
Students and Educators
Triple Display
Full function USB4.0

What I/O Ports Does the T0-FP750 V2.0 NUC Provide?

Rich I/O for Everyday Integration
The front panel provides two USB 3.2 Type-A ports, a USB-C port supporting USB 3.2 at 10Gbps, and a CTIA audio jack. On the rear, the T0-FP750 V2.0 provides HDMI 2.0, DisplayPort 1.4, a USB4 Type-C port with display support, one 2.5GbE RJ45 LAN port, one USB 2.0 Type-A port, and 19V/20V DC input. The front USB-C port is specified for USB 3.2 data only; it should not be described as having the same functions as the rear USB4 port.

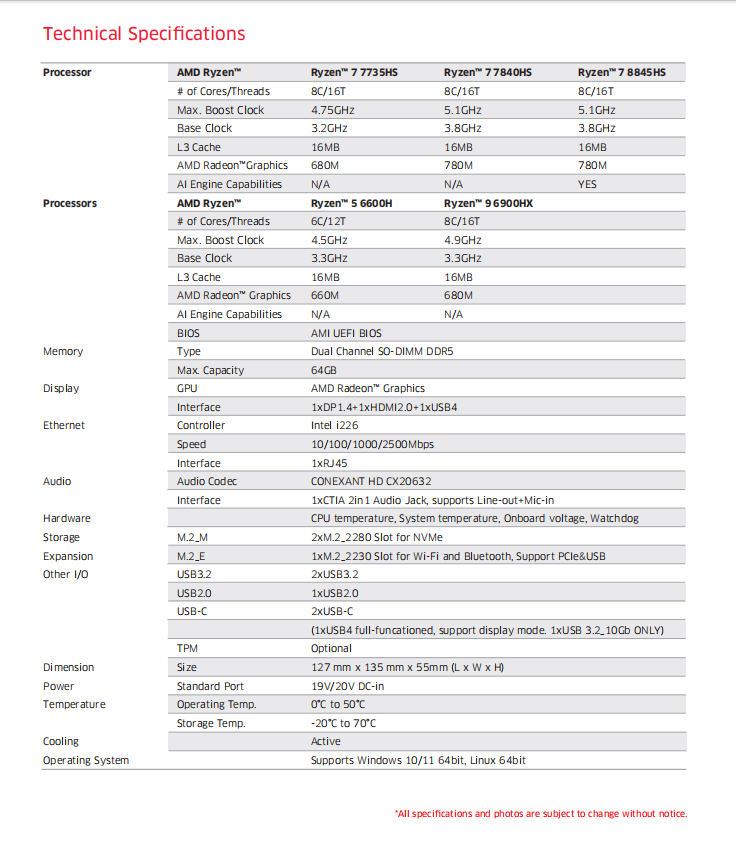

Technical Parameters

NUC T0-FP750 V2.0 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processors does the T0-FP750 V2.0 support?

    The datasheet lists AMD Ryzen™ 5 6600H, Ryzen™ 9 6900HX, Ryzen™ 7 7735HS, Ryzen™ 7 7840HS, and Ryzen™ 7 8845HS processor options.
  • Which configuration has AI engine capabilities?

    The Ryzen™ 7 8845HS configuration is listed with AI engine capabilities. The datasheet does not specify an NPU TOPS figure.
  • How much memory does the T0-FP750 V2.0 support?

    It supports up to 64GB of dual-channel SO-DIMM DDR5 memory.
  • What display connections are available?

    The T0-FP750 V2.0 provides one HDMI 2.0 port, one DisplayPort 1.4 port, and one USB4 port with display support. Confirm the required simultaneous resolution and refresh-rate combination for your project.
  • Do both USB-C ports support display output?

    No. The rear USB4 Type-C port is specified with display support. The front USB-C port is specified for USB 3.2 data at 10Gbps only.
  • Can memory and storage be upgraded?

    The T0-FP750 V2.0 uses SO-DIMM DDR5 memory supporting up to 64GB and provides two M.2 2280 slots for NVMe SSDs. Select compatible modules and drives for the required configuration.
  • Does the T0-FP750 V2.0 include Wi-Fi and Bluetooth?

    It has an M.2 2230 slot for a Wi-Fi and Bluetooth module. Confirm whether a wireless module is included in the configuration being ordered.
  • How many Ethernet ports does it have?

    It has one RJ45 Ethernet port using an Intel® i226 controller, with speeds up to 2.5Gbps.
  • What cooling method and operating temperature are specified?

    The T0-FP750 V2.0 uses active cooling and has a specified operating temperature range of 0°C to 50°C.
  • Which operating systems are supported?

    The datasheet lists Windows 10/11 64-bit and Linux 64-bit.
