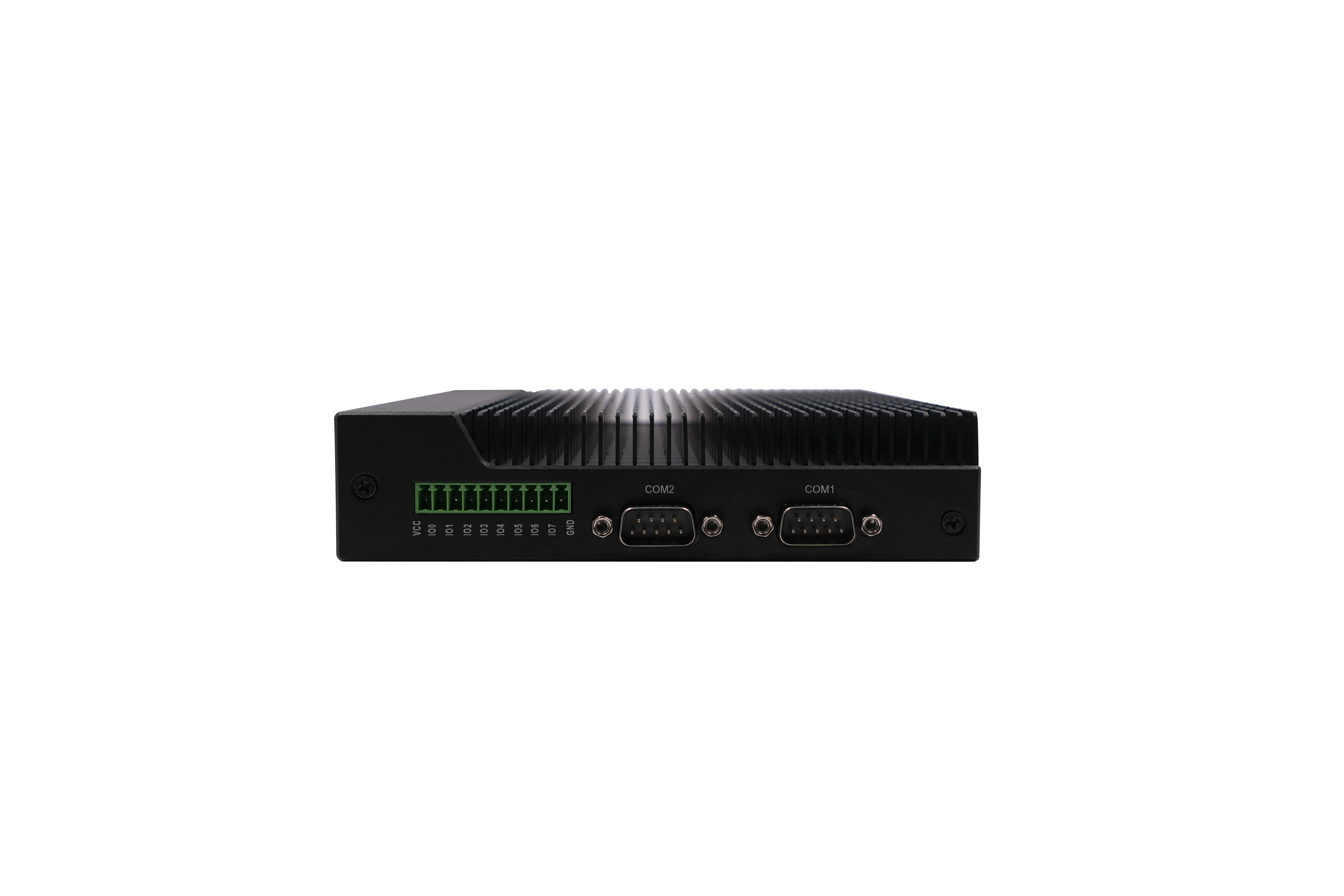

SXC-ALN30 is a compact, fanless embedded mini-PC powered by Intel® Alder Lake N processors, delivering reliable performance in industrial and commercial environments. With integrated Intel® UHD Graphics supporting up to three 4K HDMI displays, plus dual LAN, six USB, and two COM ports, it provides versatile connectivity for digital signage, automation, IoT, and edge computing.
Designed for durability, it operates in -20°C to 60°C wide-temperature ranges with 12V/19V DC-IN or optional 9–35V input. Featuring dual M.2 expansion slots for NVMe SSDs, Wi-Fi, or 4G modules, the SXC-ALN30 combines energy efficiency, scalability, and fanless reliability, making it an ideal solution for smart retail, factory control, and multimedia applications.
CPU: Intel® Alder Lake N Processor
Memory: Single Channel SO-DIMM DDR4 up to 16GB
GPU: Integrated Intel® UHD Graphics, Max three display screens
Ethernet: 10/100/1000Mbps
Storage: M.2 Key_M Slot for SATA/NVMe SSD, M.2 Key_B Slot for SATA/NVMe SSD or 4G Module
I/O Ports: 2xLAN, 2xCOM, 4xUSB3.2, 2xUSB2.0, 3xHDMI
Expansion: M.2_E Slot for Wi-Fi(support PCIe&USB), Nano SIM
Power: 12V/19V DC-IN(9-35V optional)
Support HDMI Hot-Plug Lock, RTC/W
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Datasheet_SXC-ALN30
