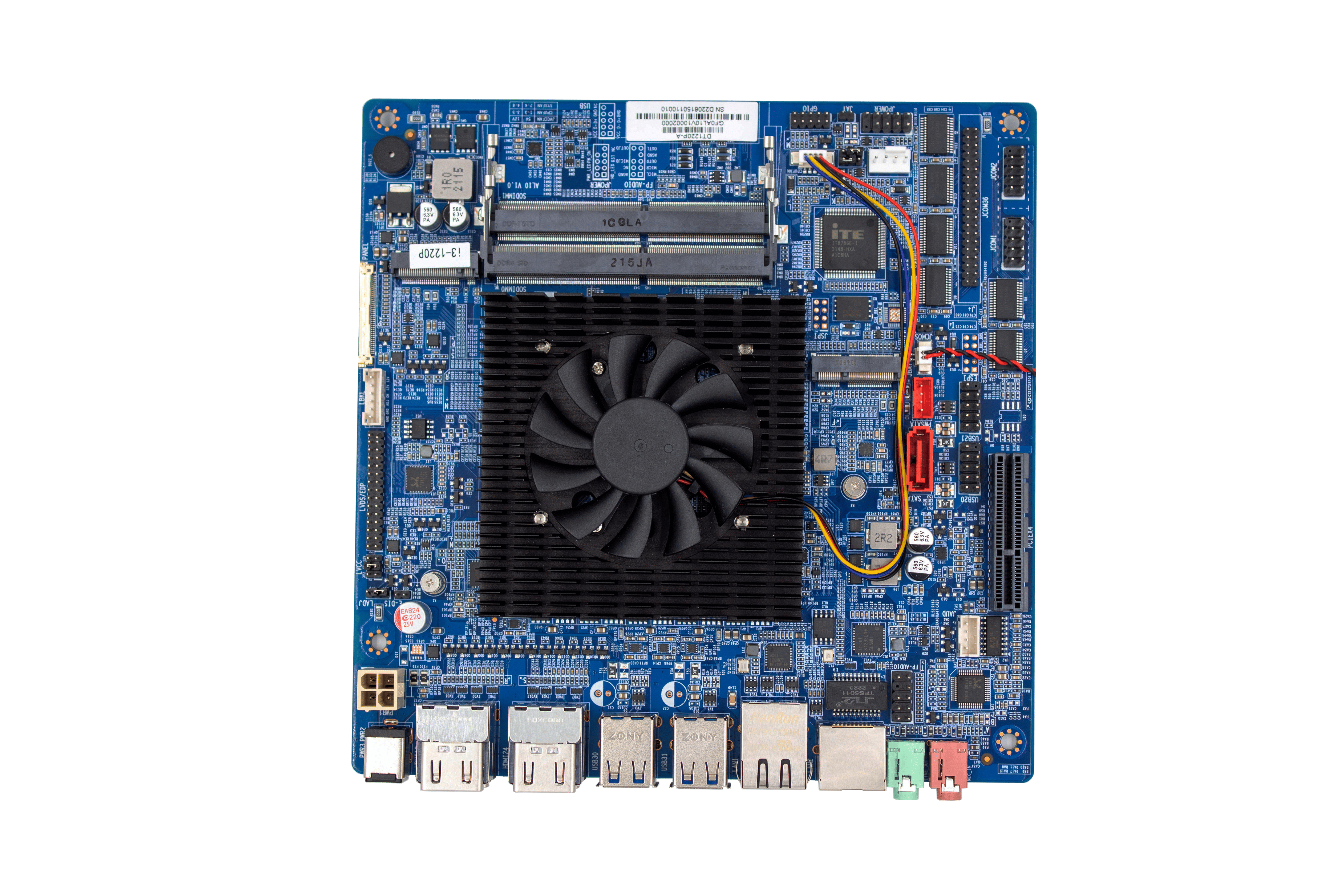

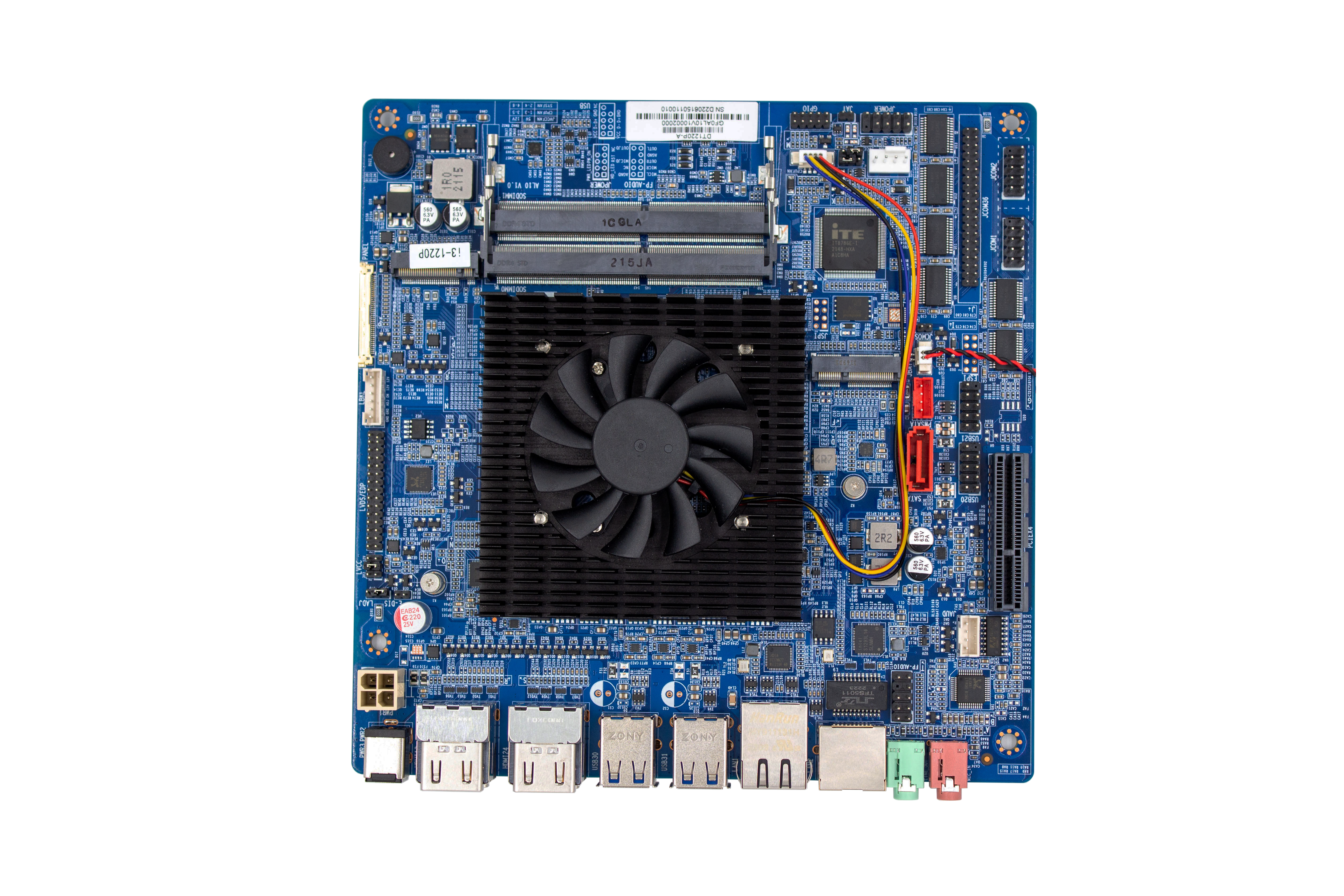

The RL-10 Mini-ITX motherboard is powered by the 13th Gen Intel® Raptor Lake processors, offering up to 14 cores and 20 threads for powerful performance. It supports 64GB of dual-channel DDR4 memory and features Intel® Iris Xe or UHD Graphics, enabling up to four 4K displays via HDMI®, LVDS/eDP, and eDP/DP outputs. Designed for industrial and embedded applications, the RL-10 includes 2x LAN (2.5GbE + 1GbE), 6x COM ports, 4x USB 3.2, and expansion slots for M.2 NVMe SSD and Wi-Fi/4G/5G, making it ideal for applications in digital signage, automation, and surveillance systems. With a wide operating temperature range and TPM 2.0 security, the RL-10 is built to deliver reliable and long-lasting performance in demanding environments.
CPU: Intel® Raptor Lake Series Processor
Memory: Dual channel SO-DIMM DDR4 up to 64GB
GPU: Intel Iris® Xe Graphics eligible/UHD Graphics depends on CPU
Ethernet Controller: Intel i225/i226 + Intel i219
Storage: 1xM.2 for NVMe 2280 SSD, 1xSATA
Expansion: M.2 for WiFi, PCIe 4X
Power: 19V DC-in
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
