NUC - MTN-FP850

MTN-FP850
Product Description

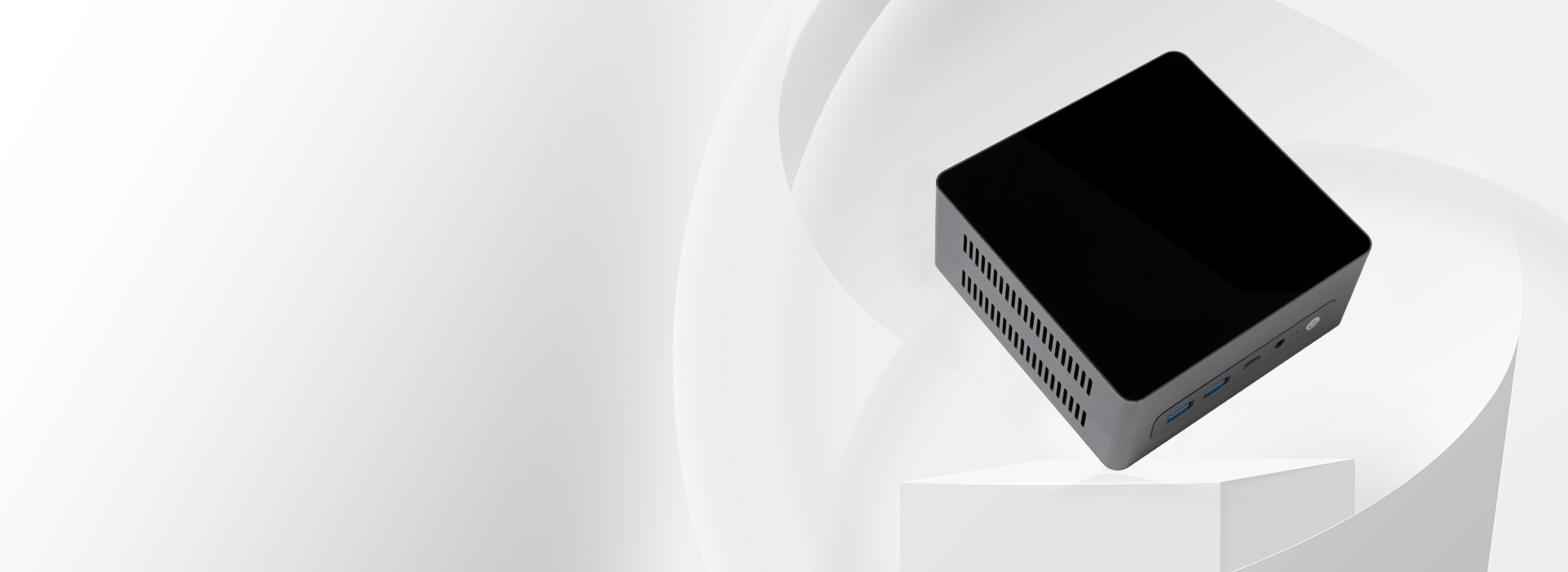

Mini-PC MTN-FP850 Product Description

The Maxtang MTN-FP850 NUC, powered by AMD Ryzen™ and Ryzen™ AI FP8 200/300 Series processors, offers high performance in a space-saving design. With up to 96GB of dual-channel DDR5 memory, it supports multiple display outputs including HDMI 2.1, DisplayPort 2.1, and USB4. Featuring dual 2.5GbE LAN, rich I/O options like USB-C (USB4), and M.2 storage expansion, the MTN-FP850 is perfect for applications such as edge computing, digital signage, and AI workloads. With active cooling and wide OS support, this mini-PC balances power, versatility, and efficiency.

Features

    NUC MTN-FP850 Features

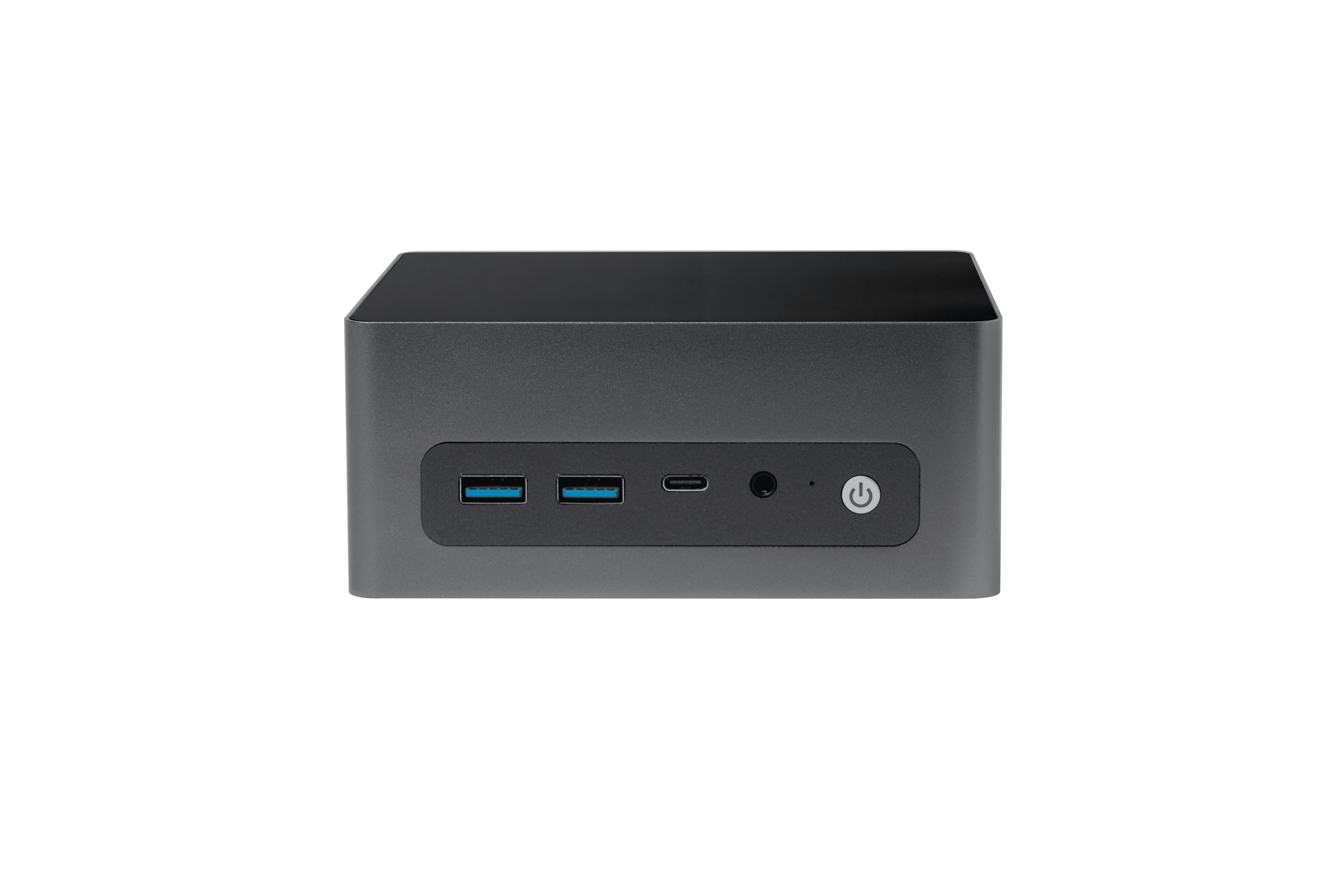

    MTN-FP850 front picture.jpg

    • CPU: AMD Ryzen™/ Ryzen AI FP8 200/300 Series Processor

    • Memory: Dual Channel DDR5 for Memory up to 96GB

    • Display: AMD Radeon™ Graphics, Displays via HDMI+DP+USB4

    • I/O Ports: 2xUSB-C(1*USB4+1*USB3.2_10Gbps), 2xUSB3.2, 1xUSB2.0, 2xLAN(2.5GbE)

    • Storage: 2xM.2_Key M Slot for 2280 NVMe SSD

    • Expansion: 1xM.2_Key E Slot for 2230 WiFi and Bluetooth

    • Power: 19V/20V DC-in

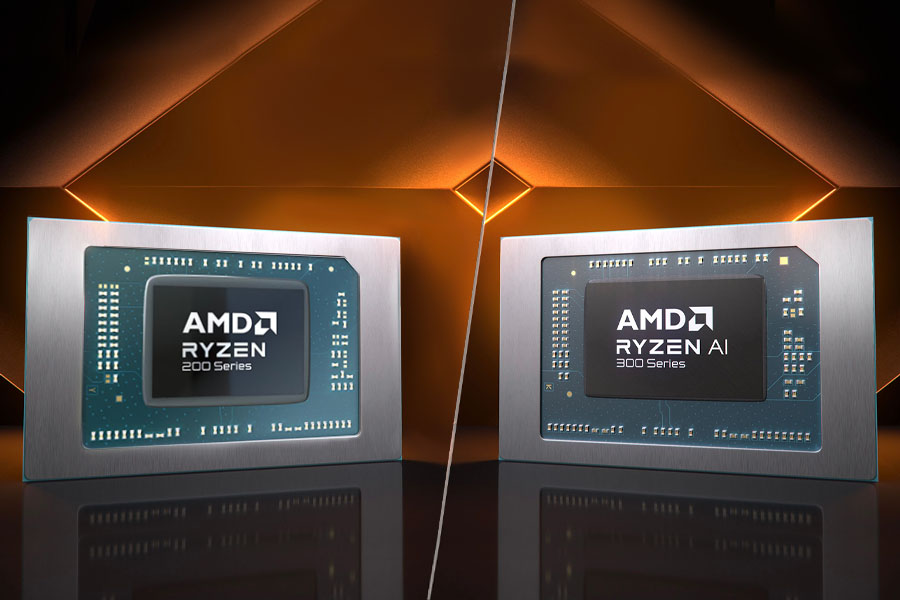

High-Performance AI-Driven Processing

High-Performance AI-Driven Processing
Powered by the latest AMD Ryzen™ / Ryzen™ AI FP8 200/300 Series processors, the MTN-FP850 offers unmatched performance with configurations up to 12 cores and 24 threads, boosting up to 5.1GHz. Equipped with advanced AMD Radeon™ 780M/890M Graphics and optional AI engine acceleration, it delivers the computing power required for intensive multitasking, AI workloads, and enterprise productivity. With support for DDR5 memory up to 96GB and efficient 45W TDP design, this ultra-compact NUC ensures stable, high-performance processing in demanding environments.

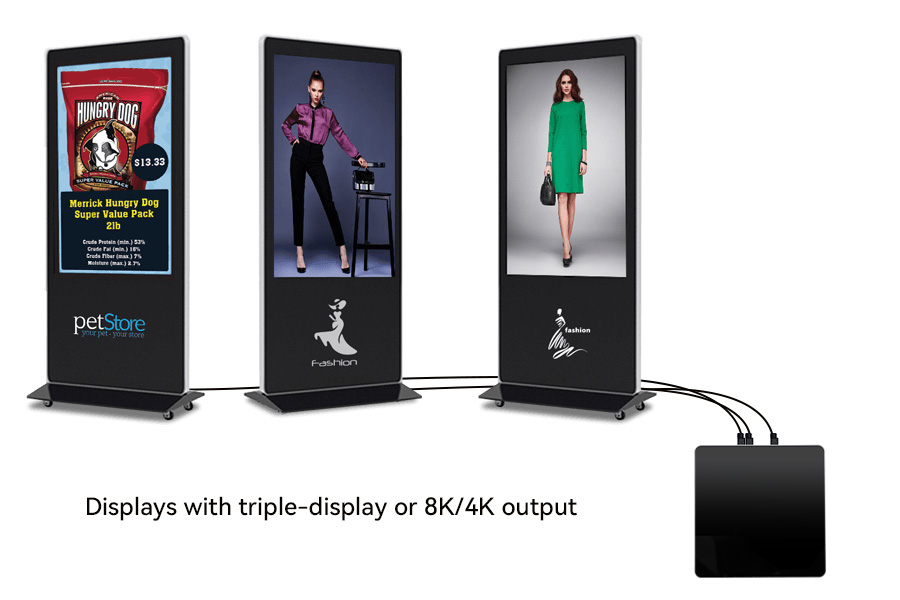

Triple-display

Triple-display
The MTN-FP850 supports USB4, HDMI 2.1, and DP 2.1 outputs, enabling multi-display setups
with up to three screens simultaneously. It delivers smooth high-resolution playback and
flexible display configurations, making it ideal for digital signage, collaborative workstations,
and immersive visualization environments. It also supports up to 4K/8K output, which can
meet a wide range of practical application scenarios. With reliable connectivity and stable
output performance, it ensures seamless operation in commercial, embedded, and professional
applications.

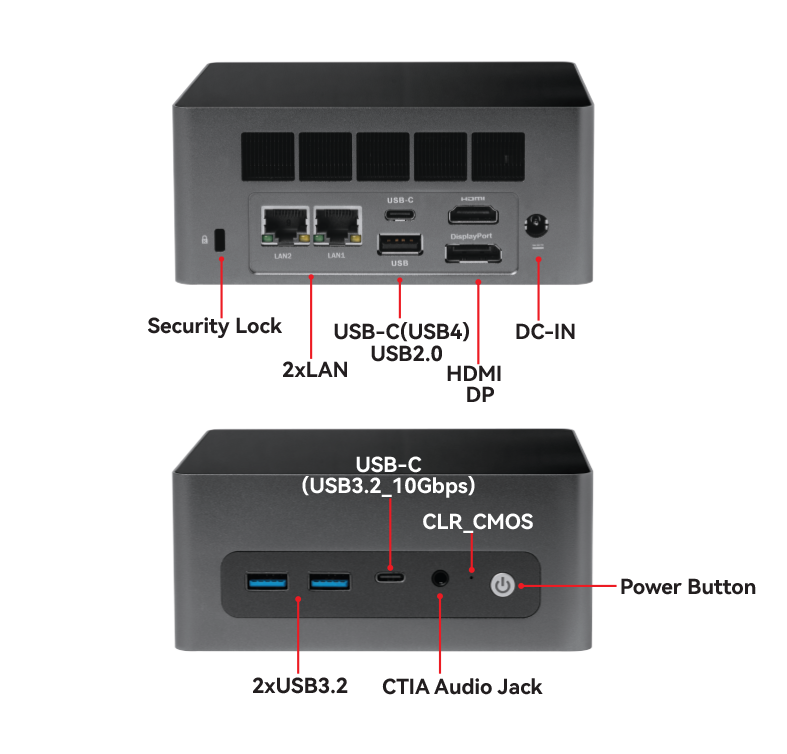

I/O Interfaces

I/O Interfaces
The MTN-FP850 offers versatile I/O connectivity, including 2 × USB-C (1 × USB4 + 1 × USB 3.2 10Gbps), 2 × USB 3.2, 1 × USB 2.0, dual 2.5GbE LAN ports, 1 × CTIA audio jack, HDMI 2.1, DP 2.1, and DC-IN. With this comprehensive set of interfaces, the system ensures easy integration with peripherals, high-speed networks, and external devices, delivering the flexibility required for commercial deployments, embedded solutions, and professional workstations.

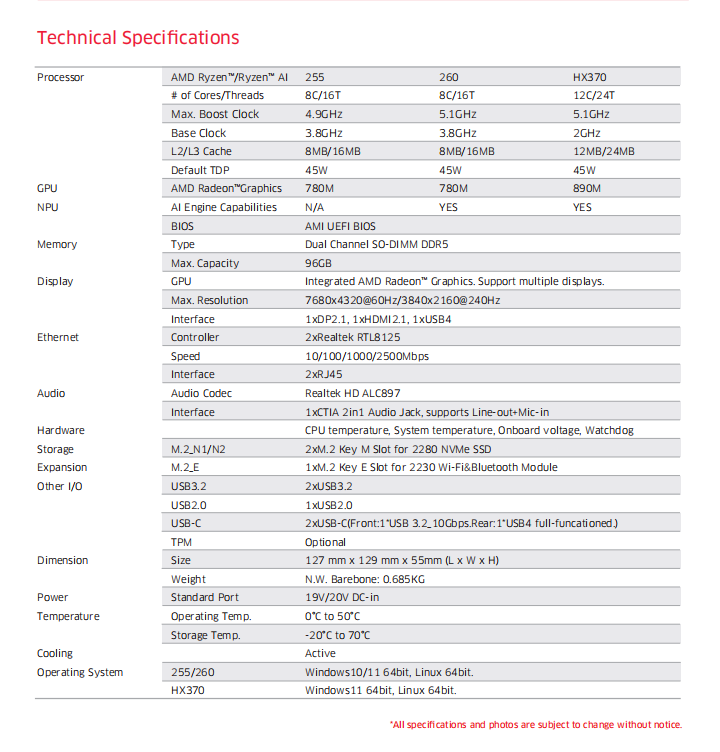

Technical Parameters

NUC MTN-FP850 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • Can it be used for digital signage or retail displays?
    Yes, the MTN-FP850 is ideal for digital signage and retail displays. It supports multiple display outputs.
  • Does it support 4K output?
    Yes, the MTN-FP850 supports up to 8K resolution at 60Hz and 4K at 240Hz.
  • Can the memory and storage be upgraded?
    Yes, both the memory and storage are upgradeable according to user requirements; detailed information on the maximum supported capacity can be found in the datasheet.
  • Does it support VESA mounting?
    VESA mounting supported.
Downloads
MTN-FP850_Datasheet
