Product Description

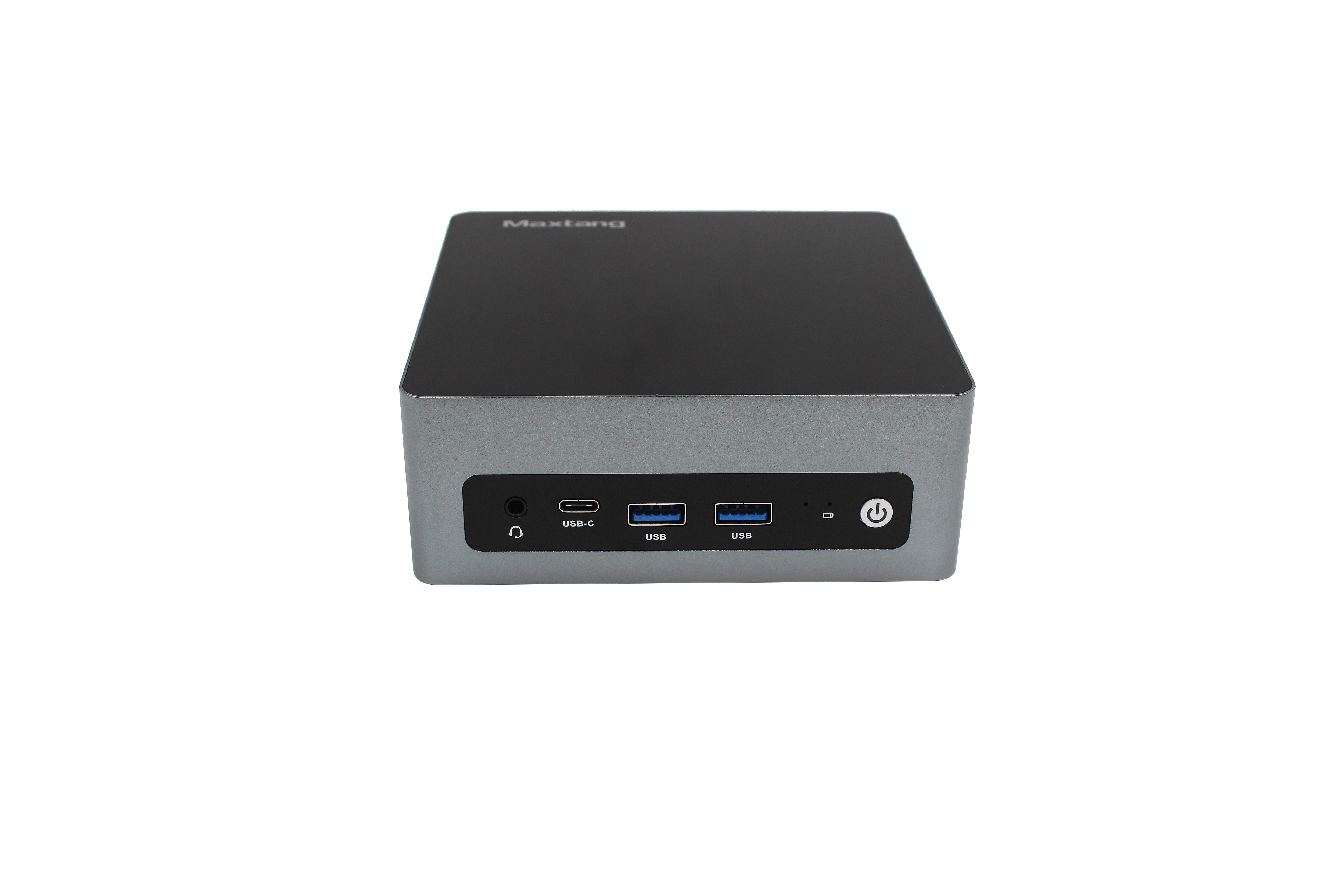

MTN-ALN50 NUC Product Description

The Maxtang MTN-ALN50 NUC offers Intel® Processor N150, Intel® Processor N100, and Intel® Core™ i3-N305 configurations. It supports up to 16GB of single-channel SO-DIMM DDR4 memory, two HDMI 2.0 outputs, and DisplayPort 1.4 through USB-C. Dual 2.5GbE LAN ports, three USB 3.2 ports, one USB 2.0 port, and a combined audio jack provide connectivity for retail terminals, kiosks, digital signage, and office systems. Storage options include an M.2 Key B slot for a 2242 or 2280 SATA SSD and an FPC SATA interface. The 129 × 127 × 52.5 mm chassis uses active cooling.

Features

    NUC MTN-ALN50 Features

    • CPU: Intel® Twin Lake / Alder Lake-N Series Processor

    • Memory: Single Channel SO-DIMM DDR4 up to 16GB

    • Display: Integrated Graphics display via 2xHDMI®2.0 plus DP1.4(USB-C)

    • I/O Ports: 2xLAN, 3xUSB3.2, 1xUSB2.0, USB-C

    • Ethernet: 10/100/1000/2500Mbps

    • Storage: 1x M.2 2280 SATA, 1xSATA(FPC)

    • Power: 12V/19V DC-in


Intel Twin Lake N150 and Alder Lake-N N100 / Core i3-N305 Options

Choose the Right N-Series Processor
The MTN-ALN50 NUC offers three processor options: Intel® Processor N150, Intel® Processor N100, and Intel® Core™ i3-N305. The N150 and N100 each provide 4 cores and 4 threads, while the Core i3-N305 provides 8 cores and 8 threads. This range lets buyers select a configuration for everyday office software, retail terminals, or more demanding multi-application installations. All configurations support up to 16GB of single-channel SO-DIMM DDR4 memory.

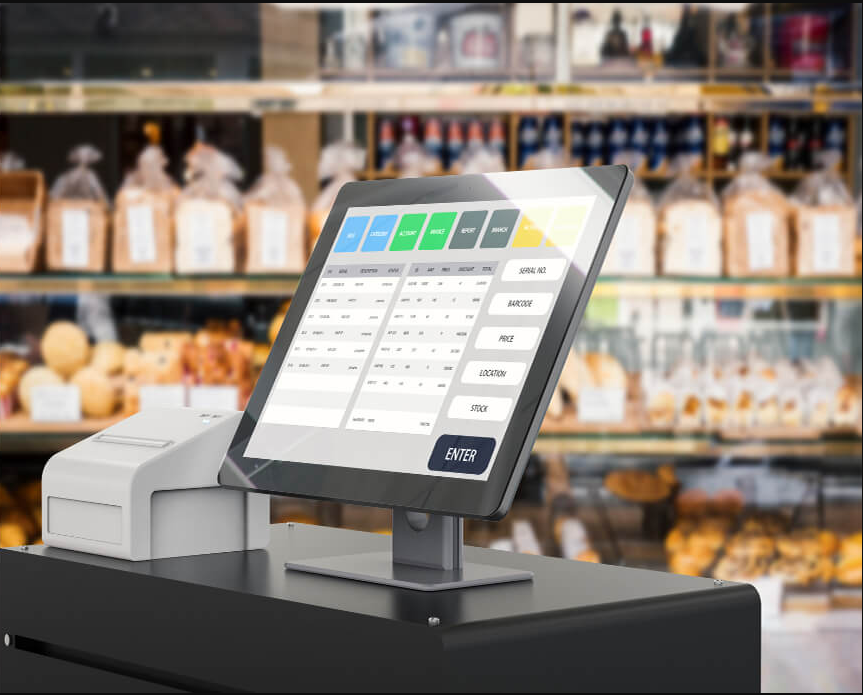

MTN-ALN50 NUC for Retail POS, Kiosks and Digital Signage

Designed for Customer-Facing Systems
The MTN-ALN50 NUC fits retail counters, self-service kiosks, and digital signage installations where space is limited. Its 129 × 127 × 52.5 mm chassis supports VESA mounting according to the datasheet, while two HDMI outputs provide connections for customer-facing or operator displays. Processor and storage configurations can be selected to match the software used at each installation.

MTN-ALN50 Connectivity with Dual 2.5GbE, HDMI and USB-C DisplayPort

Rich I/O for System Integration
The MTN-ALN50 NUC provides two 2.5GbE RJ45 LAN ports, two HDMI 2.0 outputs, three USB 3.2 ports, one USB 2.0 port, and a USB-C port supporting USB 3.2 Gen 2 data and DisplayPort 1.4 Alt Mode. A combined CTIA audio jack handles headphone and microphone connections. For expansion, the system includes an M.2 Key B slot for a SATA SSD, an FPC SATA interface, and an M.2 Key E slot for an optional Wi-Fi and Bluetooth module.

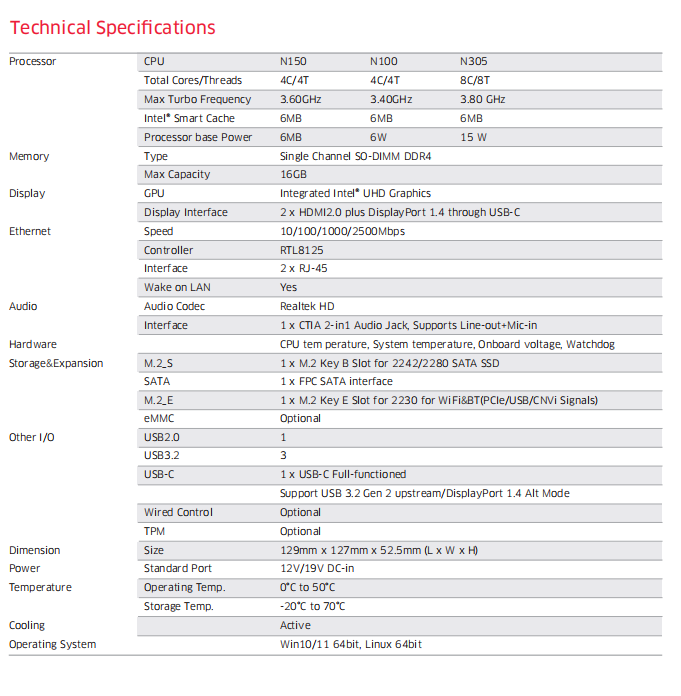

Technical Parameters

NUC MTN-ALN50 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processor options are available for the MTN-ALN50?

    The MTN-ALN50 NUC is available with Intel® Processor N150, Intel® Processor N100, or Intel® Core™ i3-N305, depending on configuration.
  • What display connections does the MTN-ALN50 provide?

    It provides two HDMI 2.0 outputs and DisplayPort 1.4 Alt Mode through USB-C. Confirm the required simultaneous display configuration, resolution, and refresh rate for your project.
  • Can the memory and storage be upgraded?

    The system supports up to 16GB of single-channel SO-DIMM DDR4 memory. Storage connections include an M.2 Key B slot for a 2242 or 2280 SATA SSD and an FPC SATA interface.
  • What wired networking does the MTN-ALN50 support?

    The MTN-ALN50 has two RJ45 LAN ports supporting speeds up to 2.5Gbps. The datasheet also lists Wake on LAN support.
  • Does the MTN-ALN50 support VESA mounting?

    Yes. The datasheet lists VESA mounting support. Confirm the required bracket and accessory package when ordering.
  • What operating systems and temperature range are specified?

    The datasheet lists Windows 10/11 64-bit and Linux 64-bit, with an operating temperature range of 0°C to 50°C. The system uses active cooling.
