MTN‑BW50 NUC Mini Pc | Intel Broadwell/Haswell, 2 HDMI

>Intel^® Broadwell-U Processor

Intel^® Broadwell-U Processor

The MTN-BW50 is powered by Intel® Haswell and Broadwell processors, including the i3-5005U, i5-4200U, and i7-5500U. These low-power U-series CPUs deliver an excellent balance of performance and energy efficiency, making them ideal for compact computing solutions. With up to 4 MB cache, turbo frequencies reaching 3.0 GHz, and integrated Intel® HD Graphics, they provide smooth multitasking and reliable graphics performance. Broadwell’s 14nm architecture further improves power efficiency compared to Haswell's 22nm design, ensuring stable operation in space-saving, fanless, and industrial applications.

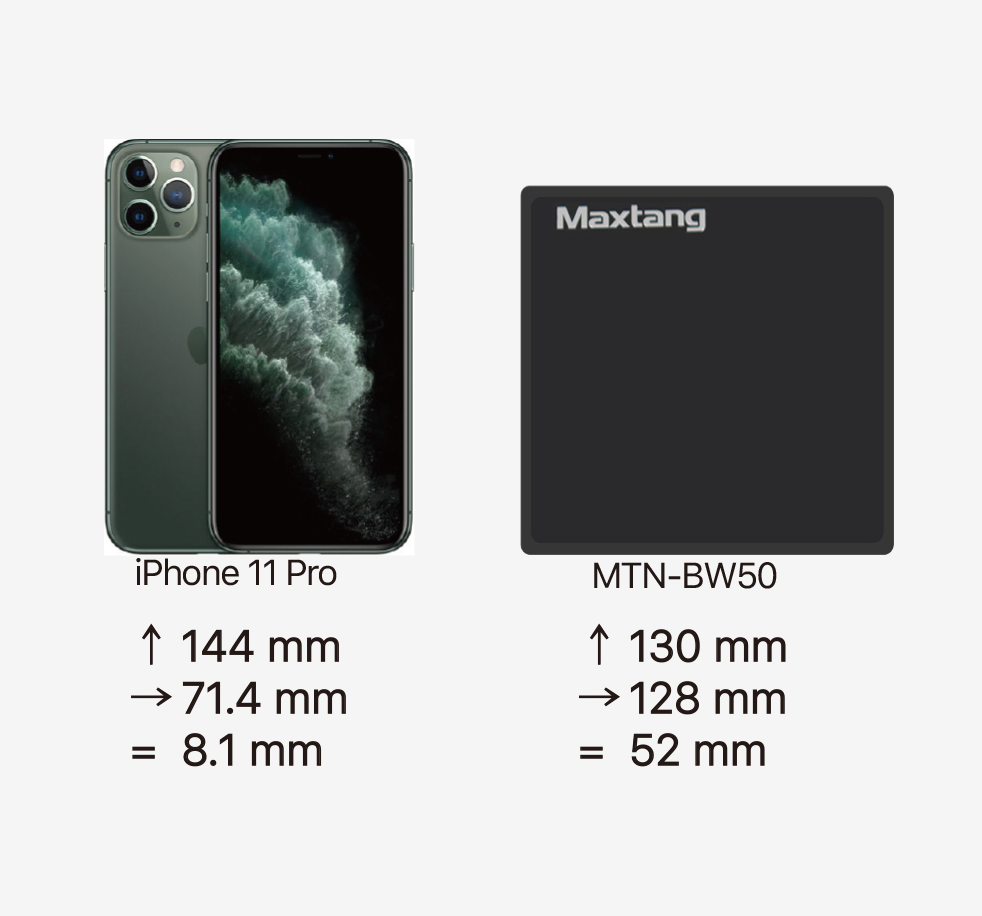

>Intel^® Full-sized PC in your palm

Full-sized PC in your palm

This mini PC squeeze a powerful processor,
fast memory, and massive storage comparable
to the full-size desktop PCs into the smallest
form factors we can engineer. It puts full-sized
PC power in the palm of your hand.

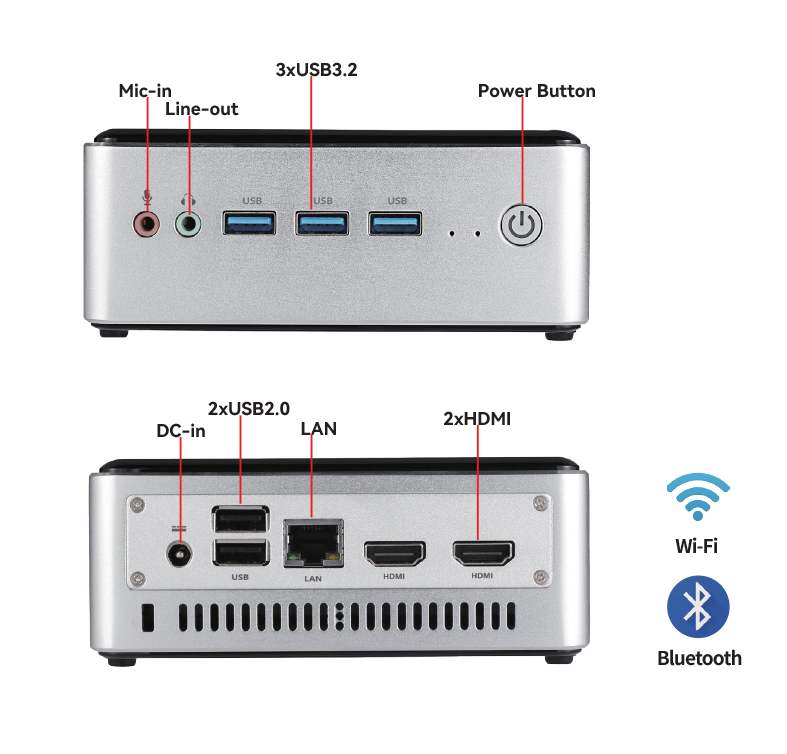

I/O Interfaces

The MTN-BW50 offers a rich set of I/O interfaces to meet diverse application needs. It includes 3× USB 3.2 and 2× USB 2.0 ports for peripheral connectivity, 2× HDMI outputs for dual-display support, and 1× Gigabit LAN (RJ-45) for reliable networking. For audio, the system integrates Line-out and Mic-in jacks, while a 12V DC-in provides stable power input.With these versatile interfaces, the MTN-BW50 is ideal for use in digital signage, kiosk systems, industrial automation, IoT gateways, POS systems, and edge computing.

Built-in Wi-Fi

Fast wireless connectivity

Built-in Bluetooth

Data transmission convenient

Product description

Product Description

Maxtang MTN-BW50 is a small form factor PC with a tiny footprint based on the Intel^® Haswell and Broadwell Core™ processor, i5-4200U, i3-5005U, and i7-5500U. This mini PC squeeze a powerful processor, fast memory, and massive storage comparable to the full-size desktop PCs into the smallest form factors we can engineer. It puts full-sized PC power in the palm of your hand.

The MTN-BW50 supports dual-channel DDR3L memory up to 16GB, delivering higher bandwidth and lower latency for smooth processing. It comes with a variety of interfaces, including 3× USB 3.0, 2× USB 2.0, 2× HDMI®, LAN, Mic-in, and Line-out, along with built-in Wi-Fi and Bluetooth for enhanced connectivity. With its compact design, versatile I/O, and reliable performance, the MTN-BW50 is an affordable mini PC solution well-suited for everyday computing, office use, education, and digital signage. Backed by our advanced manufacturing technology and industrial design expertise, the MTN-BW50 provides both quality and value.

Features

Based on the Intel^® i5-4200U, i3-5005U, i7-5500U
Dual channel DDR3L for memory up to 16GB
Intel^® HD Graphics via HDMI^®
Rich I/O ports: 3x USB3.0, 2x USB2.0, 1x LAN, 2x HDMI^®, 1x Line-out, 1x Mic-in, 1x DC-in
Built-in Wi-Fi and Bluetooth
Compact design and low power consumption
Ready to use

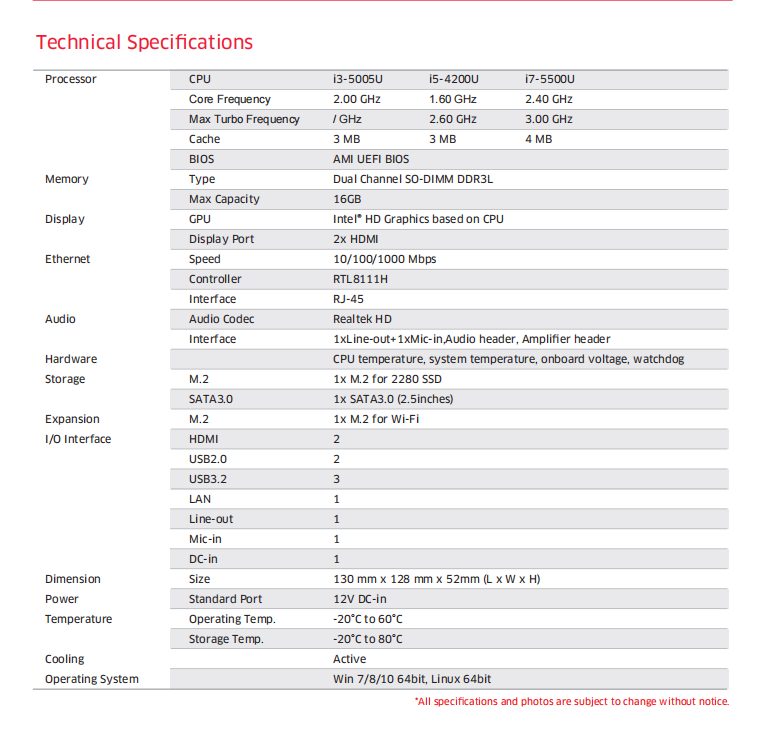

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
