Name: MTL-35
Brand: Maxtang
SKU: MTL-35
Availability: InStock

Single Board Computer MTL-35 Product describtion

MTL-35 is a 3.5-inch industrial single board computer built on Intel® Core™ Ultra Meteor Lake-U and Arrow Lake-U platforms. Featuring Intel® AI Boost NPU acceleration up to 12 TOPS, onboard LPDDR5 memory, dual Intel® i210 Gigabit Ethernet, and rich industrial I/O, it is designed for edge AI, industrial automation, HMI systems, and smart display applications.

Single Board Computer MTL-35 Futures

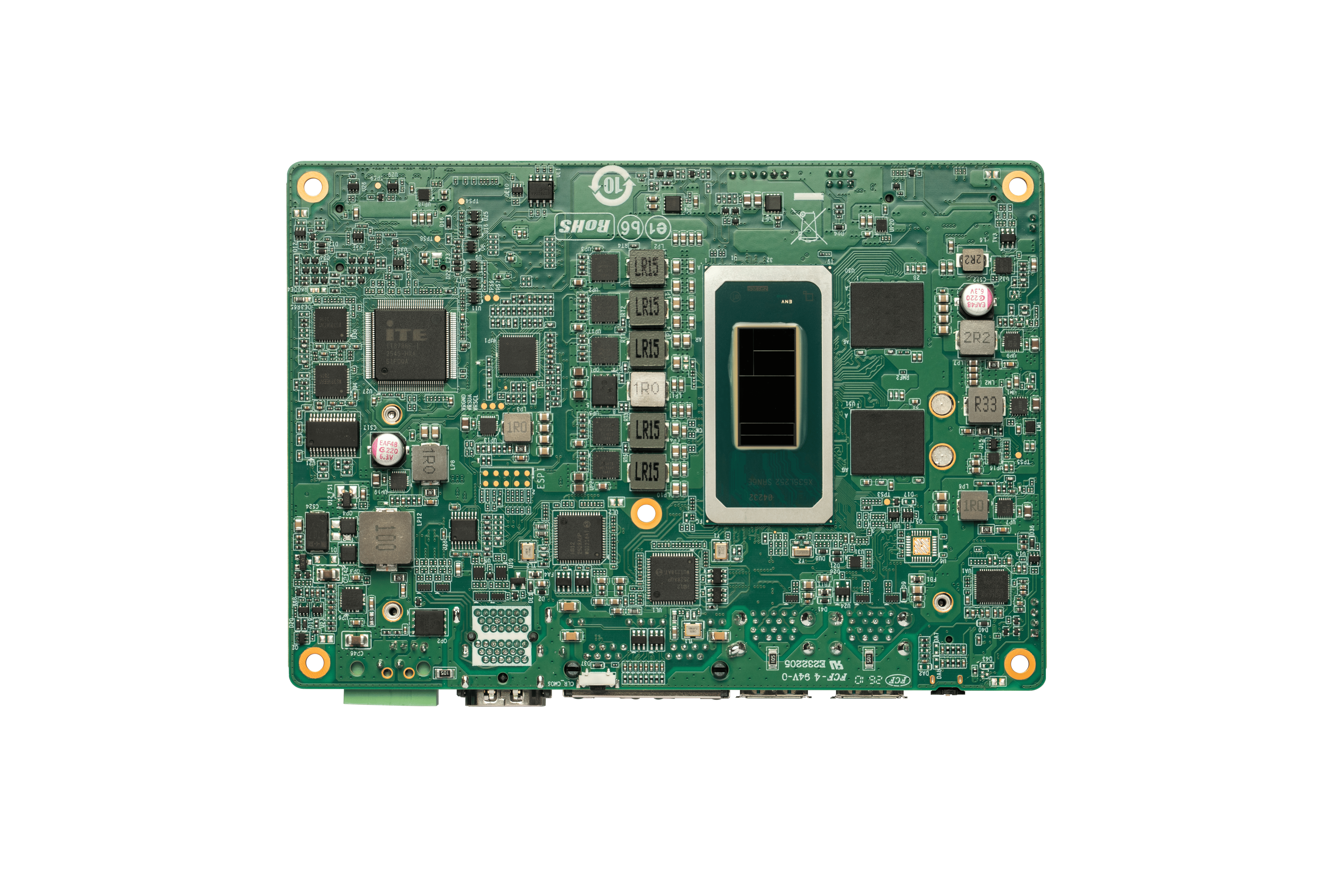

Compact embedded PC BXTL-10 front picture.jpg

CPU: Intel® Meteor Lake-U/Arrow Lake-U Series Processor
Memory: Onboard LPDDR5, 8GB/16GB/32GB
Display: Integrated Intel Graphics display via 2xHDMI2.0, eDP/LVDs
Ethernet: 2 x Intel® i210, 10/100/1000Mbps
Storage and Expansion: SATA 3.0 FPC, M.2 Key B slot for SATA/4G/5G, M.2 Key M slot for NVMe, M.2 Key E slot for Wi-Fi and Bluetooth
Power: 9V-36V(2-Pin DC-IN Phoenix Connector)

AI-Ready Edge Performance with Intel® Core™ Ultra

The MTL-35 is built on Intel® Core™ Ultra 125U and 225U processors featuring a 12-core/14-thread architecture with integrated Intel® AI Boost NPU delivering up to 12 TOPS of AI acceleration. This makes the MTL-35 one of the most capable industrial single board computers available for edge AI workloads — from real-time inference and image recognition to intelligent automation and predictive maintenance — all without relying on cloud connectivity.

Triple-Display Support for HDMI &Smart Display Systems

The MTL-35 supports three independent display outputs via 2× HDMI 2.0 and 1× eDP/LVDS, enabling flexible multi-screen configurations for HMI panels, digital signage, panel PCs, and operator control stations. Integrated Intel® Graphics ensures smooth, stable visual output across all three displays simultaneously — ideal for applications that require real-time data visualisation, video playback, or multi-zone content management.

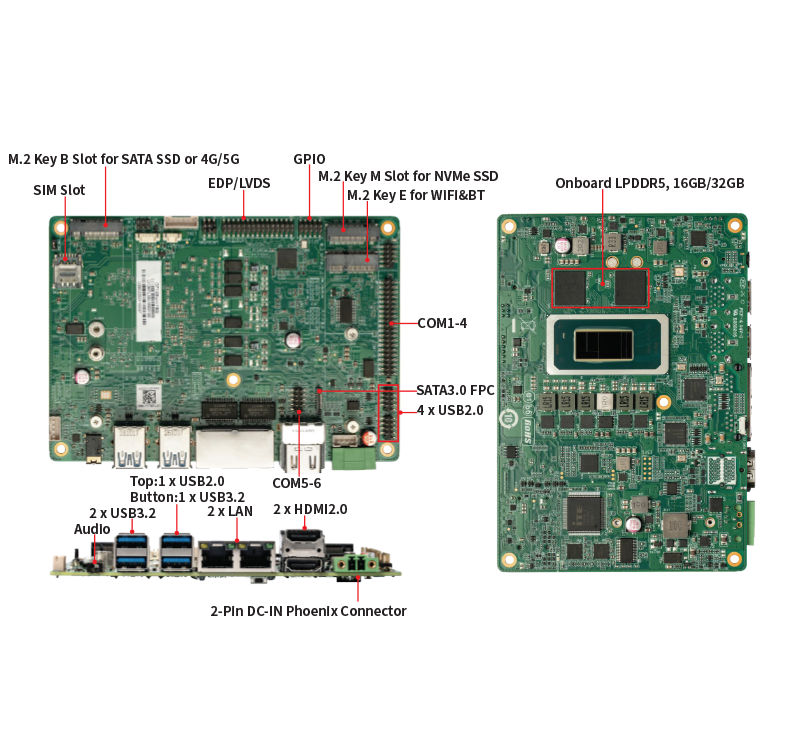

Rich I/O Interfaces

Designed as a true industrial SBC, the MTL-35 provides the connectivity that demanding applications require. Six COM ports (RS232 by default, COM1/2 configurable to RS422/RS485 via BIOS), 3× USB 3.2 Gen2, 5× USB 2.0, dual Intel® i210 Gigabit Ethernet, 8-bit GPIO, and hardware watchdog make it suitable for factory automation, robotics, transportation systems, and industrial control — wherever reliable, wired connectivity is non-negotiable.

AI-Ready Edge Performance

Intel® UHD Integrated Graphics

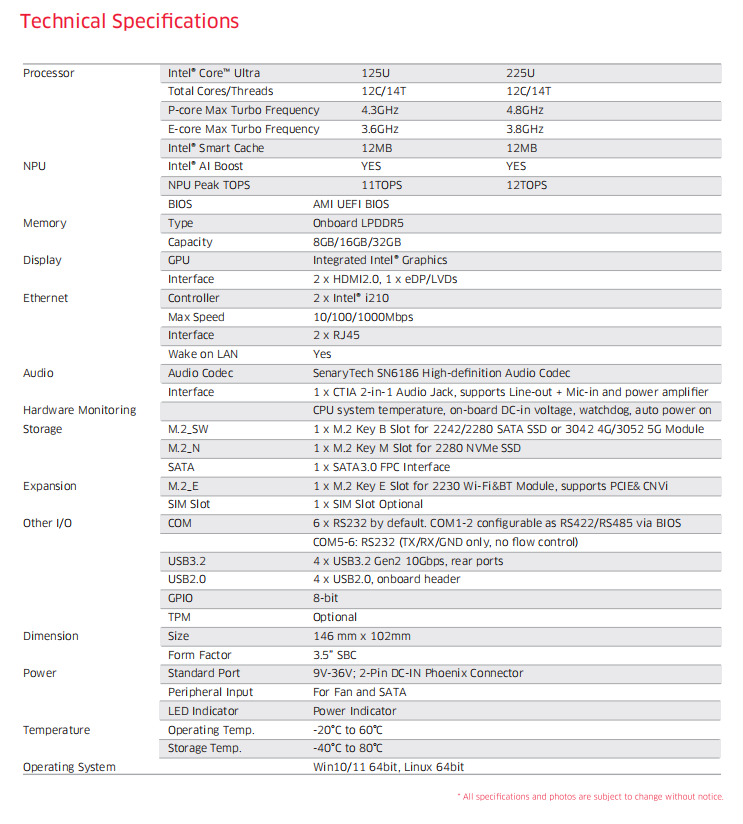

Technical Parameters

Single Board Computer MTL-35 Futures

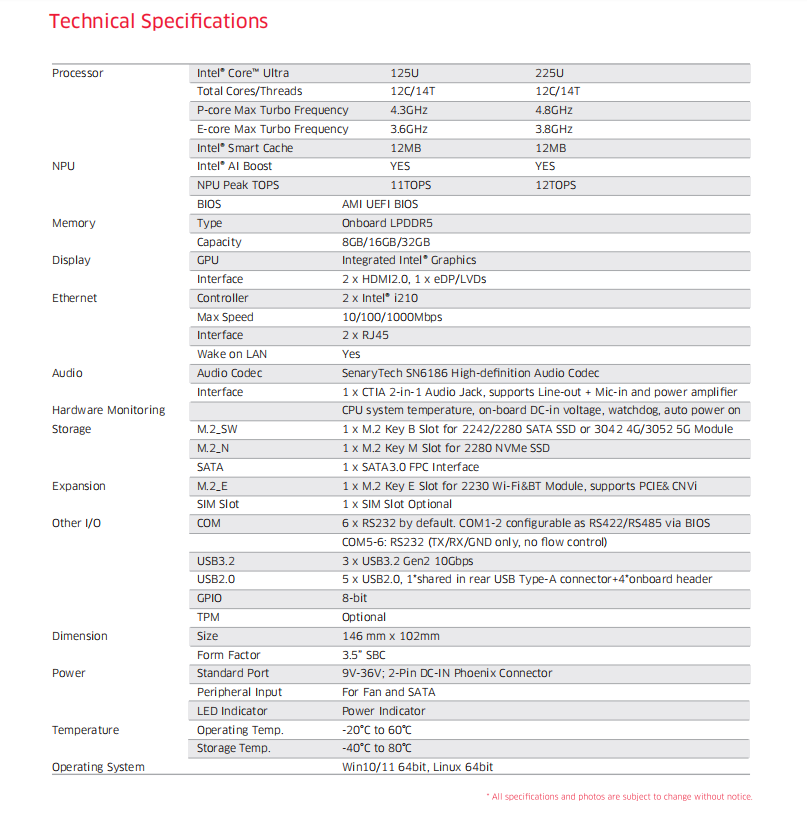

Single Board Computer MTL-35 Specifications.png

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

Datasheet_MTL-35
