VGA+HDMI®+eDP or LVDS, supports multiple display and gives you an extraordinary visual experience.
BYT-35 V1.0
We provide mini-ITX motherboards and SBC that can be used in broader range of embedded applications based on cutting-edge platforms and technologies
Inquiry Now
Wide Range Of Application
Wide Range Of Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
and helps you effeiciently achieve your goals.
Medical
Transportation
IoT Solutions
Rich I/O Interfaces
Rich I/O Interfaces
The Maxtang BYT-35 V1.0 industrial motherboard is equipped with comprehensive rich I/O interfaces to deliver maximum flexibility and connectivity. It provides 6×COM ports (4×RS232 + 2×RS485), 1×USB3.2, 5×USB2.0 (1 port + 4 headers), 8×GPIO, dual Gigabit LAN (Intel® i210), along with HDMI®, VGA, and eDP/LVDS display outputs. Audio is supported via Mic-in and Line-out ports, while expansion options include mini PCIe for Wi-Fi/3G/4G/Bluetooth, Micro SIM, and optional eMMC storage. With standard 12V/19V DC-in or 12V–36V wide-range input, the BYT-35 V1.0 ensures stable operation in demanding environments.
Product description
Product describtion
The SBC-BYT35 is a low power consumption 3.5" single board computer, supporting Intel® Bay Trail Platform processors, Celeron® J1800, J1900, N2940 and E3845. It offers onboard 2GB or 4GB system memory for higher bandwidth and lower latencies for processes. Powered by Intel® i211 controllers, this board is equipped with dual Intel® Gigabit Ethernet.
Measuring only 146mm x 102mm(LxW), this embedded board features rich I/O, including 1×HDMI®, 1×VGA, 1×eDP/LVDS (optional), 1×Audio, 2×10M/100M/1000M BASE-T gigabit LAN(Intel i211), 1×USB3.0, 5×USB2.0, 4×RS232, 2×RS485, 1×LPC (optional), 8×GPIO. A whole heatsink will be attached to the bottom of the board for better cooling performance.
Features
Intel Bay Trail BGA processor
On board dual channel DDR3L up to 4GB
Display interfaces: VGA, HDMI, eDP/LVDS
10/100/1000Mbit ethernet card
SATA2.0, mSATA, eMMC (optional)
12V/19V DC input, or 12V~36V optional

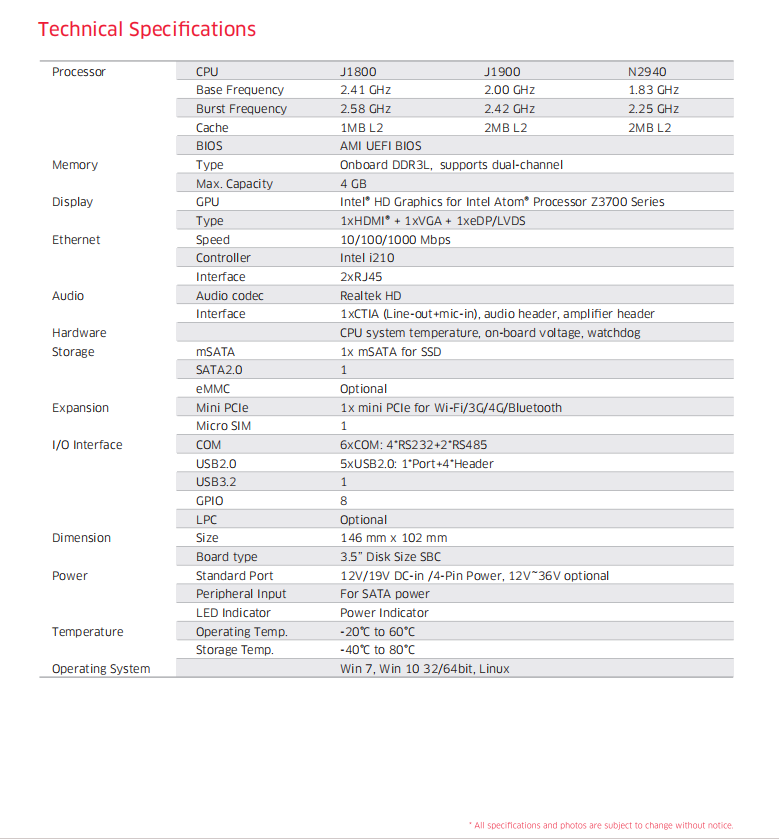

Technical Parameters
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
