SBC-WL-35

WL-35 V1.0
Product Description

Product describtion

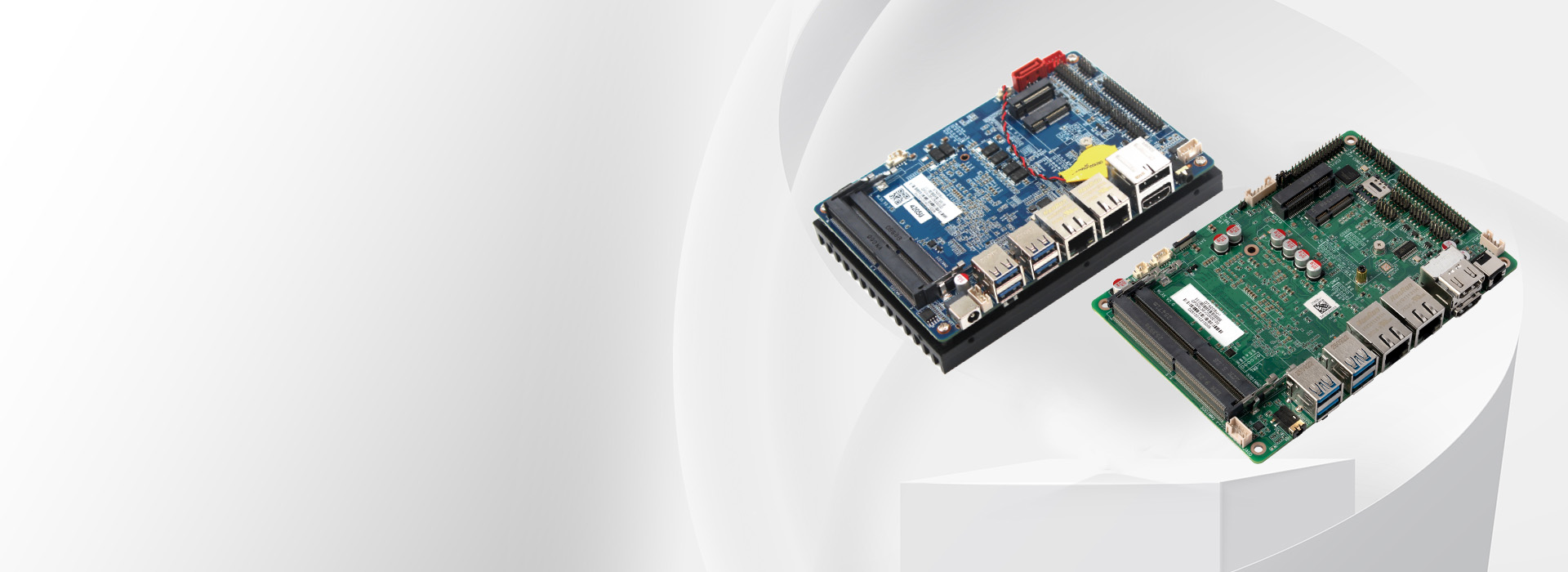

Maxtang WL-35 is a compact, high-performance single-board computer powered by Intel® Whiskey Lake/Comet Lake-U processors. Designed for industrial applications, it offers exceptional processing power with low energy consumption. The board supports multiple display outputs, provides robust networking capabilities, and features versatile I/O options to meet a wide range of market needs. With its reliable design and cost-effective pricing, the WL-35 delivers outstanding stability, making it an ideal solution for businesses looking to enhance productivity and performance.


Features

    •  CPU: Intel® Whiskey Lake/Comet Lake-U Processor

    •  Memory: Dual channel SO-DIMM DDR4 up to 64 GB

    •  Display: Integrated Intel® UHD Graphics display via HDMI, DP, eDP

    •  Ethernet: 10/100/1000 Mbps

    •  Storage: SATA3.0, M.2 for 2242 SATA/4G

    •  Expansion: M.2 for WiFi, Micro SIM

    •  Power: 12V/19V DC input


Multiple display

Multiple display
The WL-35 V1.0 is a 3.5-inch single-board computer based on Intel® Whiskey Lake/Comet Lake-U processors, offering support for multiple displays. With HDMI, DisplayPort (DP), and Embedded DisplayPort (eDP) interfaces, it can drive up to three displays simultaneously, making it ideal for industrial control, digital signage, and other applications. Powered by Intel® UHD Graphics, the WL-35 v1.0 delivers stable graphics performance for multitasking and high-resolution output, providing a robust solution for enhancing visualization in industrial environments.

Wide Range Of Application

Wide Range Of Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
IoT Solutions
Industrial
Transportation
Medical

Rich I/O Interfaces

Rich I/O Interfaces

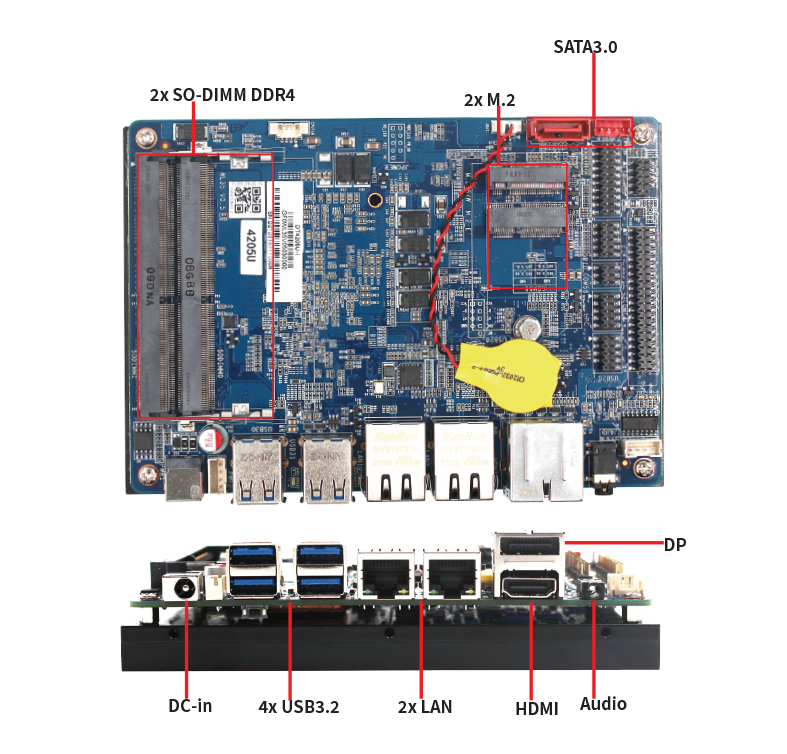

The Maxtang WL-35 V1.0 Single Board Computers comes with a wide range of rich I/O interfaces designed to support various industrial and embedded applications. It integrates 6×COM ports (4×RS232 + 2×RS485), 4×USB3.2, 2×USB2.0 headers, 8×GPIO, dual Gigabit Ethernet ports (Intel® i210 + i219), plus HDMI, DP, eDP display outputs and audio ports. This versatile Rich I/O design enables seamless connectivity with industrial automation systems, edge computing devices, IoT gateways, self-service kiosks, and smart security solutions. With high compatibility and reliable performance, the WL-35 ensures efficient data transmission and flexible system integration, making it the ideal choice for projects requiring multi-interface industrial solutions.
Technical Parameters

Single Board Computer WL-35 V1.0


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads
Datasheet_WL-35 User Manual_WL-35 Drivers Audio_Realtek_ALC897 Drivers Audio_Realtek_ALC662 Drivers LAN_Intel_1.0GbE Drivers Intel Whiskey Lake Series Drivers Intel Comet Lake Series
