The Maxtang FP20 mini-ITX embedded motherboard The FP-20 Mini-ITX motherboard is powered by the AMD® Ryzen™ V1605B Quad-Core Processor, delivering high performance with a low thermal design power (TDP), making it an ideal solution for embedded and industrial applications. With support for up to 32GB of dual-channel DDR4 memory and integrated AMD Radeon Vega Graphics, the FP-20 is perfect for applications like digital signage, interactive kiosks, and high-resolution display systems. Featuring multiple display outputs including 2x HDMI 2.0, 1x DVI-D, and 1x VGA, it provides versatile display options. The FP-20 also supports M.2 storage for SSDs and Wi-Fi, ensuring reliable performance for industrial and embedded systems.

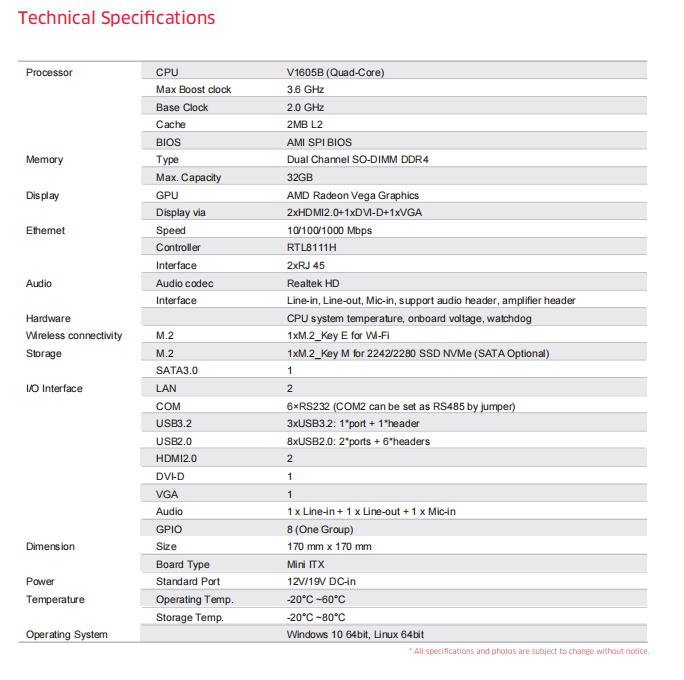

CPU: Ryzen™ V1605B Quad Core Processor
Memory: Dual channel SO-DIMM DDR4 up to 32 GB
Display: Display via 2xHDMI2.0,1xDVI-D,1xVGA
Ethernet: 10/100/1000Mbps
Storage: SATA3.0, M.2 2242/2280 SSD NVME(SATA Optional)
Expansion: 1xM.2 2230 for WiFi
Power: 12V/19V DC input
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
