DT‑8803H‑E4 Industrial Fanless PC

Strong Cooling Capability

The DT-8803H-E4 fanless embedded industrial PC adopts a passive cooling design that eliminates the need for traditional fans, ensuring quiet operation and enhanced reliability in demanding environments. By removing moving parts, the system minimizes dust accumulation, vibration, and mechanical wear, significantly improving durability and Mean Time Between Failures (MTBF). Combined with its aluminum enclosure and robust industrial-grade build, the DT-8803H-E4 delivers efficient heat dissipation while maintaining stable performance in harsh industrial conditions such as high humidity, airborne contaminants, and temperature fluctuations (0°C to 50°C operating range). This makes it an ideal solution for industrial automation, vision inspection, motion control, and surveillance applications, where long-term stability, silent operation, and maintenance-free reliability are critical.

Wide-Range of Applications

DT-8803H-E4 has reliable computing power, versatile I/O interfaces, and flexible expansion, it is well-suited for motion control, vision inspection, surveillance, and industrial automation. Its fanless construction and rugged design ensure durability in harsh conditions, making it an ideal choice for businesses seeking stability, scalability, and long-term performance in demanding industrial scenarios.

Comprehensive I/O Interfaces

The DT-8803H-E4 fanless industrial PC offers a rich set of I/O interfaces designed for seamless integration in diverse industrial applications. It comes equipped with 6× USB 2.0, 2× USB 2.0 headers, 2× USB 3.2, and 1× USB 3.2 dongle onboard, along with 6 COM ports (4× RS-232 and 2× RS-485) for reliable connectivity with both modern peripherals and legacy industrial devices. Networking is supported by three Gigabit LAN ports, while display options include HDMI, DP, and VGA outputs for flexible multi-screen setups. Additional connectivity features include 16 GPIO, PS/2 support, audio I/O (mic-in, line-out), and DC-in 16–36V for industrial power systems. With this wide range of interfaces, the DT-8803H-E4 ensures easy deployment in industrial automation, motion control, vision inspection, and surveillance applications, providing the scalability needed for future system expansion .

Product description

Product Description

The Maxtang DT-8803H-E4 is a fanless embedded industrial PC powered by the Intel® Core™ Haswell processor, delivering stable and reliable performance for modern industrial automation. Designed with multiple display outputs and 16 GPIO, it simplifies system integration and optimizes easy maintenance in demanding environments. The DT-8803H-E4 inherits the robust build quality of the Maxtang product line while offering an extremely cost-effective solution for businesses seeking durability and performance at an accessible price point.

Equipped with dual-channel DDR3 memory, versatile I/O connectivity, and flexible expansion capacity, the DT-8803H-E4 is built to handle complex industrial workloads. Its comprehensive interface options and rugged fanless design make it an ideal choice for vision inspection, motion control, and surveillance applications, ensuring long-term stability and scalability for a wide range of industrial automation scenarios.

Features

CPU:Intel^® Haswell CPU + PCH B85
Memory: Dual Channel DDR3L up to 16GB
I/O Interface: 6xUSB2.0+ 2xUSB2.0*header + 2xUSB3.2 + 1xUSB3.2*Dongle Onboard
Display: 1x HDMI^®+ 1x VGA + 1x DP
Ethernet: 10/100/1000Mbps
Storage: 2x 2.5'' HD + M.2 SSD
Expansion: M.2, 4xSlots (PCIe 16X or PCI)
Power: DC-in 16-36V

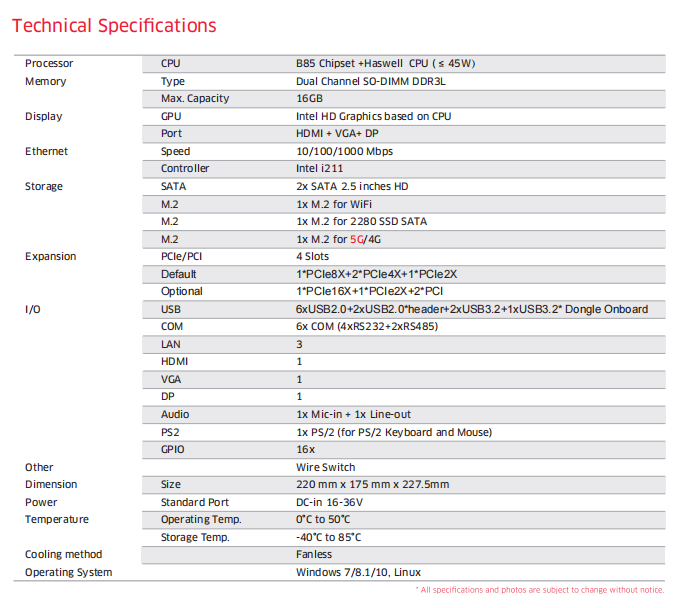

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

Datasheet_DT-8803H-E4

Drivers Audio_Realtek_ALC662

Drivers LAN_Intel_1.0GbE
