DT‑8803H‑E2 Industrial Fanless PC

Strong Cooling Capability

The Maxtang DT-8803H-E2 adopts a fanless passive cooling design, eliminating moving parts to ensure silent operation, reduced dust accumulation, and improved durability. This robust thermal solution not only provides efficient heat dissipation but also enhances reliability by minimizing vibration and mechanical wear, significantly extending system lifecycle and MTBF. With an operating temperature range of 0°C to 50°C and storage tolerance from -40°C to 85°C, the DT-8803H-E2 maintains stable performance even in harsh industrial environments. Its quiet, maintenance-free cooling system makes it an ideal choice for industrial automation, vision inspection, motion control, and surveillance applications, where consistent reliability and low noise are critical .

Wide-Range of Applications

The DT-8803H-E2 is ideal for diverse applications such as industrial automation, vision inspection, motion control, surveillance, digital signage, and IoT gateways, delivering stable and reliable performance across demanding environments.

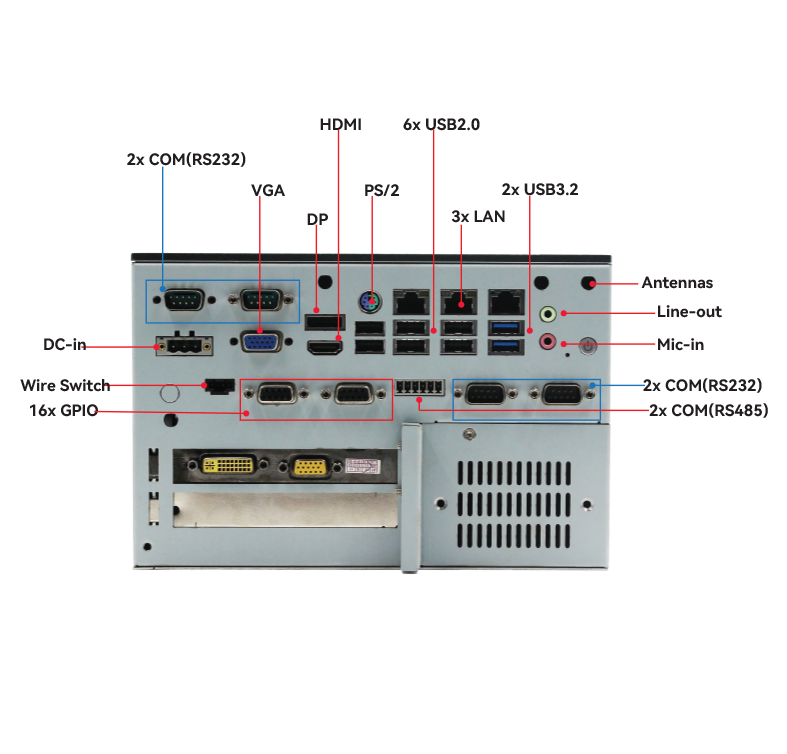

Comprehensive I/O Interfaces

The Maxtang DT-8803H-E2 fanless industrial PC features a rich set of I/O
interfaces for seamless integration in industrial environments.
It provides multiple USB (USB 2.0 and USB 3.2), six COM ports
(RS-232/RS-485), and three Gigabit LAN for versatile connectivity.
HDMI, DP, and VGA support multi-display setups, while 16 GPIO,
audio ports, and a PS/2 interface enhance compatibility.
With wide 16–36V DC input, the DT-8803H-E2 is ideal for
automation, motion control, vision inspection, and surveillance
applications, ensuring flexibility and scalability.

Product description

Product Description

The Maxtang DT-8803H-E4 is a fanless embedded industrial PC powered by the Intel® Core™ Haswell processor, delivering stable and reliable performance for modern industrial automation. Designed with multiple display outputs and 16 GPIO, it simplifies system integration and optimizes easy maintenance in demanding environments. The DT-8803H-E4 inherits the robust build quality of the Maxtang product line while offering an extremely cost-effective solution for businesses seeking durability and performance at an accessible price point.

Supporting dual-channel DDR3 memory, a versatile I/O array, and flexible expansion capacity, the DT-8803H series is engineered to handle the complex requirements of industrial automation, vision inspection, motion control, and surveillance applications. With its fanless design, rugged build, and scalability, it provides a dependable platform for a wide range of industrial scenarios where performance, durability, and efficiency are essential.

Features

CPU: Intel Haswell CPU + PCH B85
Memory: Dual Channel DDR3L up to 16GB
I/O Interface: 6xUSB2.0 + 2xUSB2.0*header + 2xUSB3.2 + 1xUSB3.2*Dongle Onboard
Display: 1x HDMI+ 1x VGA + 1x DP
Ethernet: 10/100/1000Mbps
Support 4G or 5G
Storage: 2x 2.5''HD + M.2 SSD
Expansion: M.2, 2xSlots (PCIe 16X or PCI)
Power: 16-36V DC-in

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

DT-8803H-E2
