Mini ITX-BW-10

BW-10
Product Description

Mini-ATX Motherboard BW-10 Product Description

The BW-10 Mini-ATX motherboard is powered by Intel® Broadwell-U processors, offering high performance and energy efficiency for embedded and industrial applications. With support for up to 64GB of DDR4 memory, it delivers reliable computing power in a compact form factor. The motherboard supports multiple display outputs, including HDMI®, VGA, and LVDS/eDP, making it ideal for digital signage, industrial control systems, and interactive kiosks. With a range of I/O options and expansion capabilities, the BW-10 is perfect for applications requiring versatility, stability, and long-term performance in demanding environments.

Features

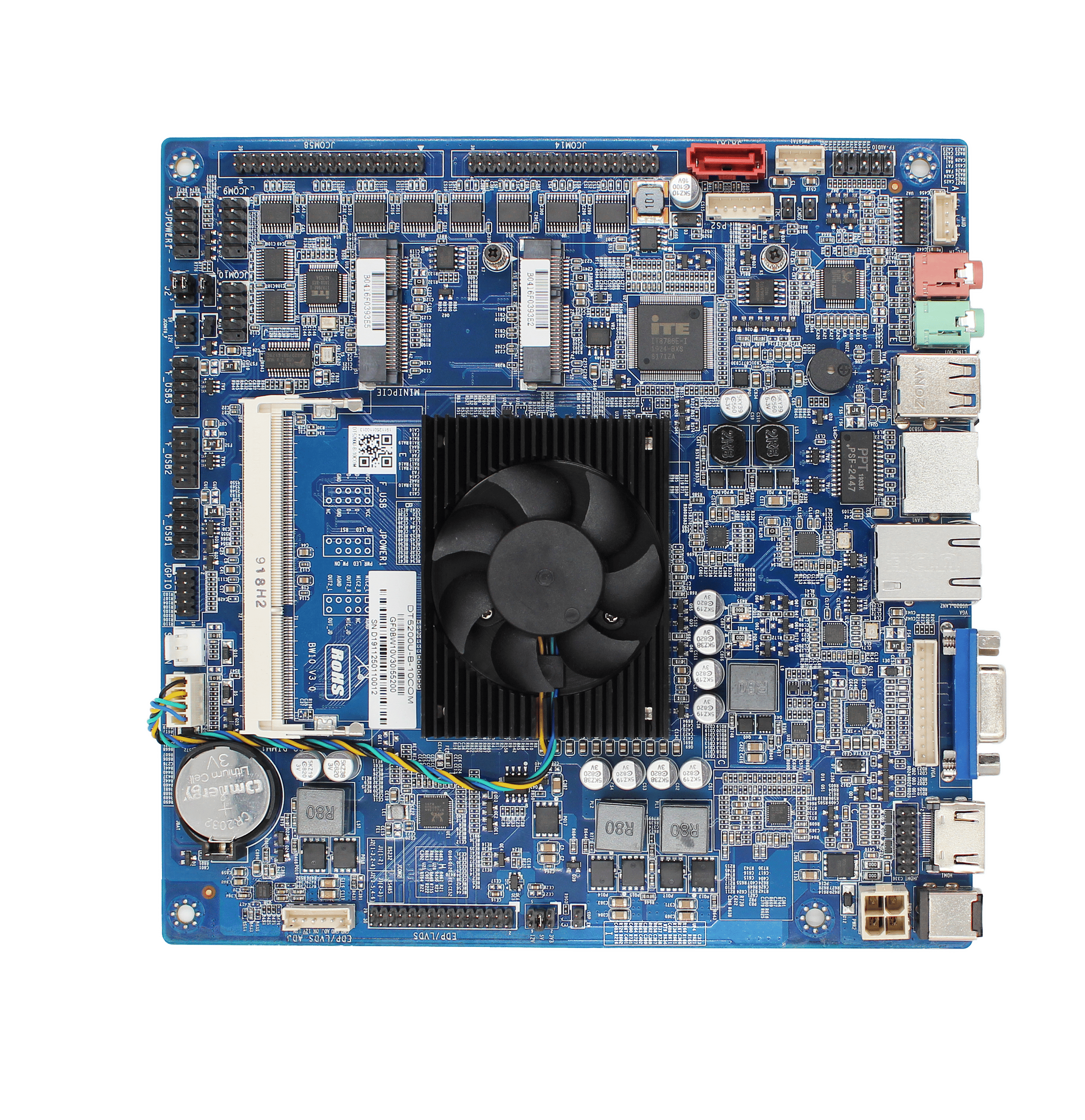

    MBW-10V3 (5).pngini-ATX Motherboard BW-10 Features

    SKD-70 Front Picture.png

    • CPU: Intel Broadwell-U Celeron, Core Processors

    • Memory: Single Channel SO-DIMM DDR3L up to 8 GB

    • Dual Display via 2x HDMI®2.0

    • Display: Multiple display via HDMI, VGA, LVDS/eDP

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA3.0, mSATA

    • Expansion: Mini PCIe for WiFi

    • Power: 12V DC input



High-Performance Processor

High-Performance Processor
The BW-10 Mini-ATX motherboard is equipped with the Intel® Broadwell-U processor, offering enhanced computing power and high performance with cost-effective efficiency. Designed for embedded and industrial applications, this processor provides excellent multi-core performance, making it ideal for demanding tasks. With a thermal design power (TDP) of just 15W, it ensures energy efficiency while maintaining strong performance. The Broadwell-U processor also supports long-term reliability, providing a solid foundation for future development.

Mini-ATX Motherboard BW-10 Wide Range Of Application

Wide Range Of Applications
The BW-10 Mini-ATX motherboard offers low power consumption, high performance, and a compact design, making it an ideal solution for a wide range of applications. Whether used in industrial control, medical systems, smart schools, or digital signage, the BW-10 provides reliable performance and flexibility to meet the diverse needs of modern environments.
Industrial Controlling
Medical
Smart School
Digital Signage

Comprehensive I/O ports

Comprehensive I/O ports
The BW-10 Mini-ATX motherboard offers versatile display options, supporting multiple displays via HDMI®, VGA, and LVDS/eDP, making it ideal for various industrial and commercial applications. It is equipped with a rich set of interfaces, including 10x COM ports, 2x LAN ports, 2x USB 3.2, and 6x USB 2.0 ports, providing excellent connectivity to meet the needs of a wide range of market requirements.
Technical Parameters



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_BW-10 User Manual_BW-10 Drivers Audio_Realtek_ALC662 Drivers LAN_Realtek_1.0GbE Drivers Intel Broadwell Series
