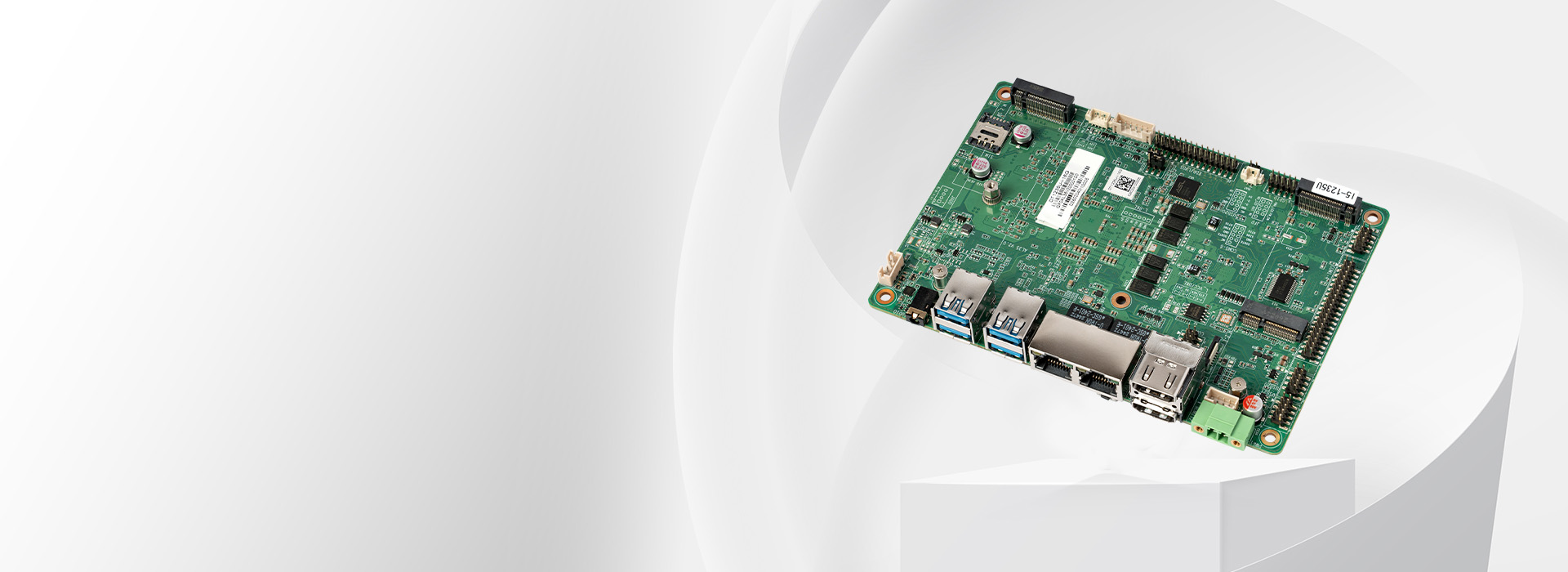

AL-35 V2.0
Product Description

AL-50V2.0 Product describtion

AL-35V2.0 is a compact and high-performance 3.5-inch single board computer built for embedded and industrial applications. Powered by Intel® Alder Lake-U / Raptor Lake-U series processors, it delivers efficient computing performance, responsive graphics, and reliable multitasking capability. With onboard LPDDR5 memory, dual Intel® i210 Gigabit LAN, multiple display outputs, rich I/O connectivity, and flexible storage and expansion options, the AL-35V2.0 provides an adaptable platform for industrial automation, machine vision, medical systems, and smart retail deployments.

Features

    3.5''Inch SBC AL35V2.0 Features

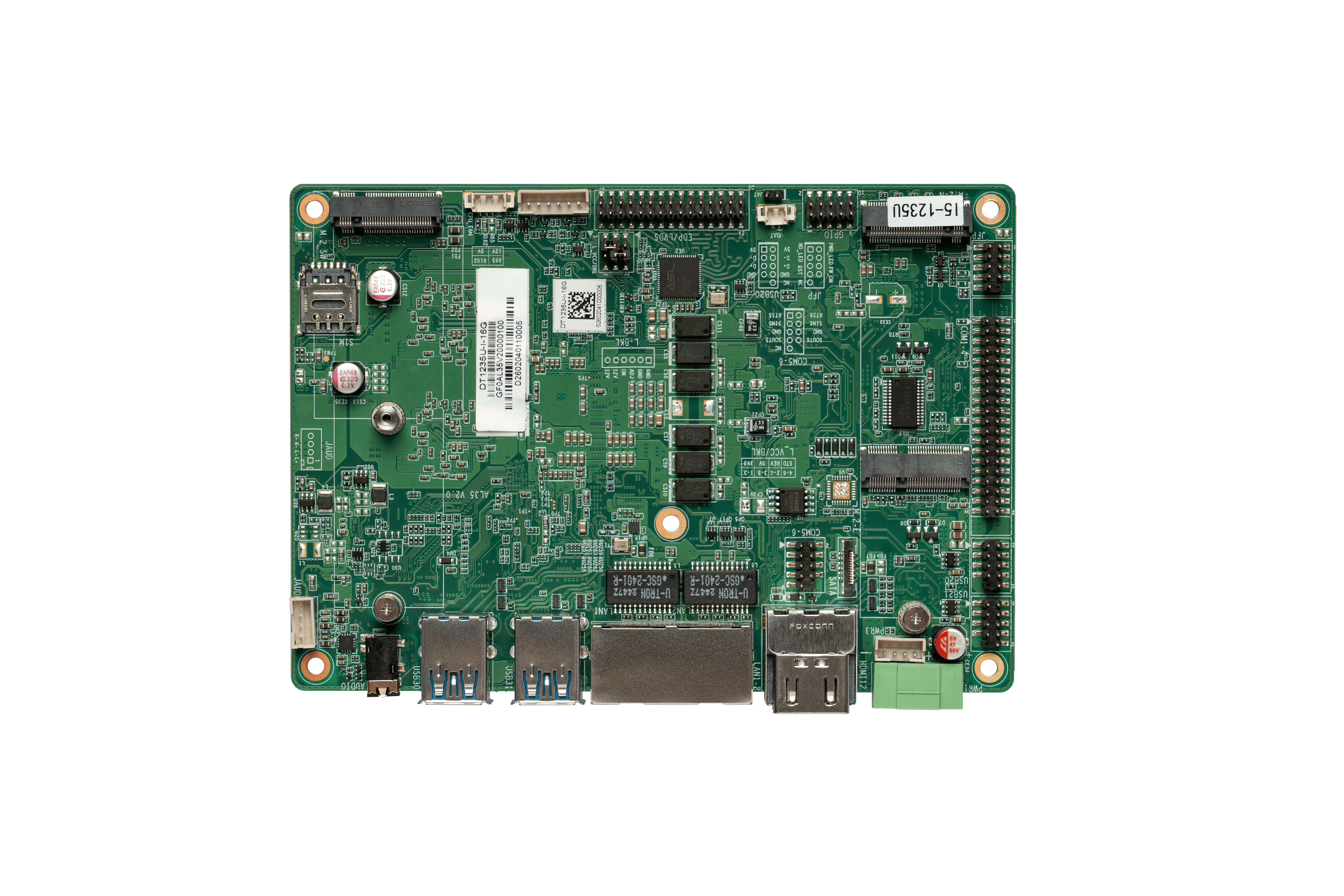

    AL35V2.0 front picture.jpg

    • CPU: Intel® Alder Lake U/Raptor Lake U Series Processor

    • Memory: Onboard LPDDR5, 8GB/16GB

    • Display: Integrated Intel Graphics display via 2xHDMI2.0, eDP/LVDs

    • Ethernet: 2 x Intel® i210, 10/100/1000Mbps

    • Storage: SATA3.0 FPC, M.2 Key B Slot for SATA/4G, M.2 Key M Slot for NVMe,UFS Flash optional

    • Expansion: M.2 Key E Slot for Wi-Fi&BT

    • Power: 9V-36V


Intel® Alder Lake U/Raptor Lake U Series Processor

Intel® Alder Lake U/Raptor Lake U Series Processor
AL-35V2.0 is powered by Intel® Alder Lake-U / Raptor Lake-U series processors, supporting 12th and 13th Gen Intel® Core™ U-Series platforms. With a hybrid core architecture, it delivers an excellent balance of performance and power efficiency for industrial and embedded applications. Combined with integrated Intel® Iris® Xe / UHD Graphics, the board provides responsive computing and reliable graphics capability for multitasking, edge computing, machine vision, and smart system deployments.

SBC AL-35V2.0 application scenario

Wide Range Of Application

Combining flexible I/O, reliable performance, and broad display connectivity, the AL-35V2.0 is suitable for a wide range of applications, including industrial automation, machine vision, medical systems, smart retail, digital signage, and other embedded computing solutions.

embedded computing
Machine Vision
Smart Retail

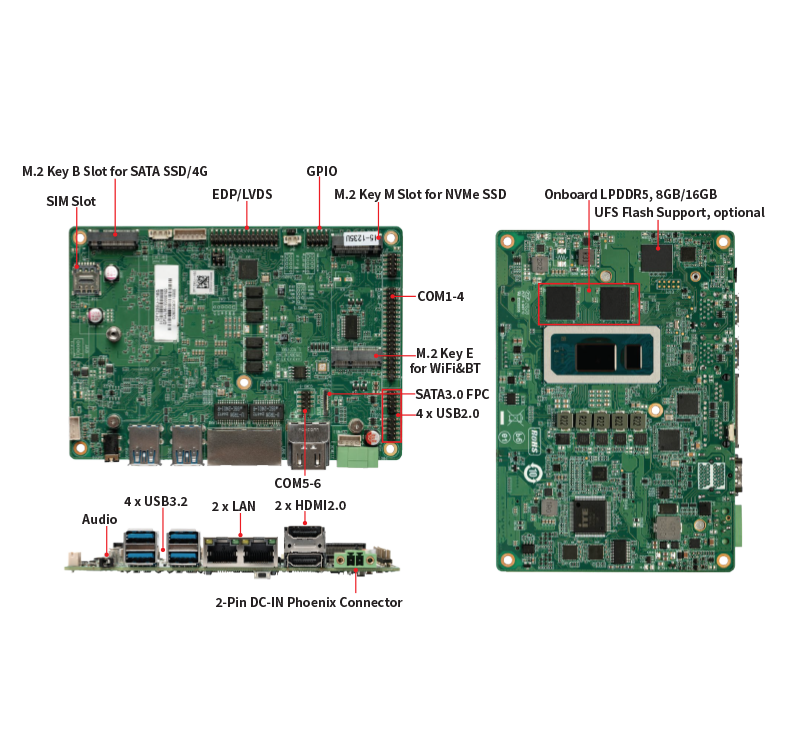

Rich I/O Interfaces

Rich I/O Interfaces
AL-35V2.0 provides rich I/O interfaces to support demanding embedded and industrial applications. With dual LAN, abundant USB connectivity, multiple COM ports, dual HDMI, and flexible M.2 and SATA expansion, it offers strong integration capability for external devices, display systems, and communication modules. Its well-balanced I/O configuration ensures greater deployment flexibility across automation, control, and intelligent edge computing environments.

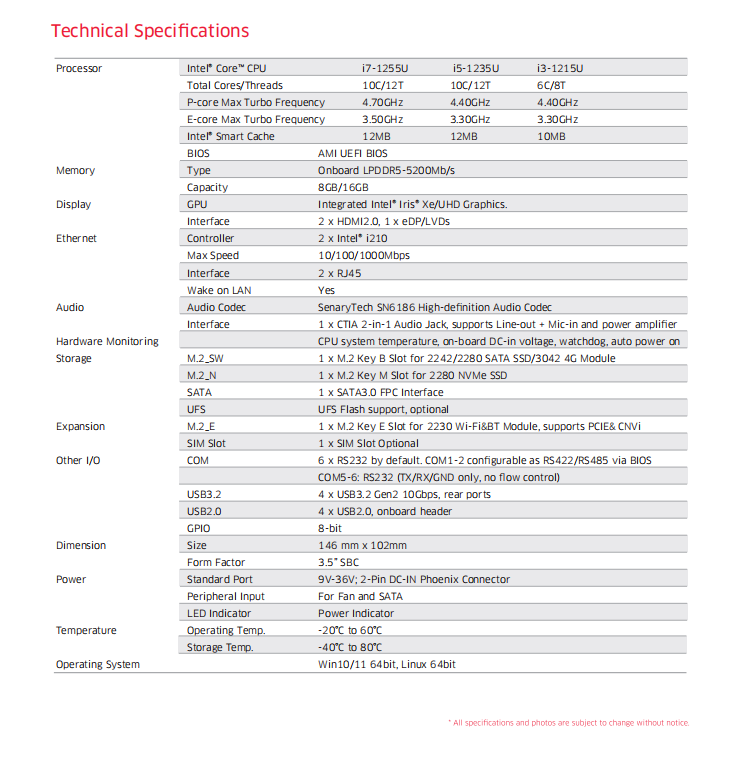

Technical Parameters

3.5''Inch SBC AL35V2.0 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads
Datasheet_AL-35V2.0
