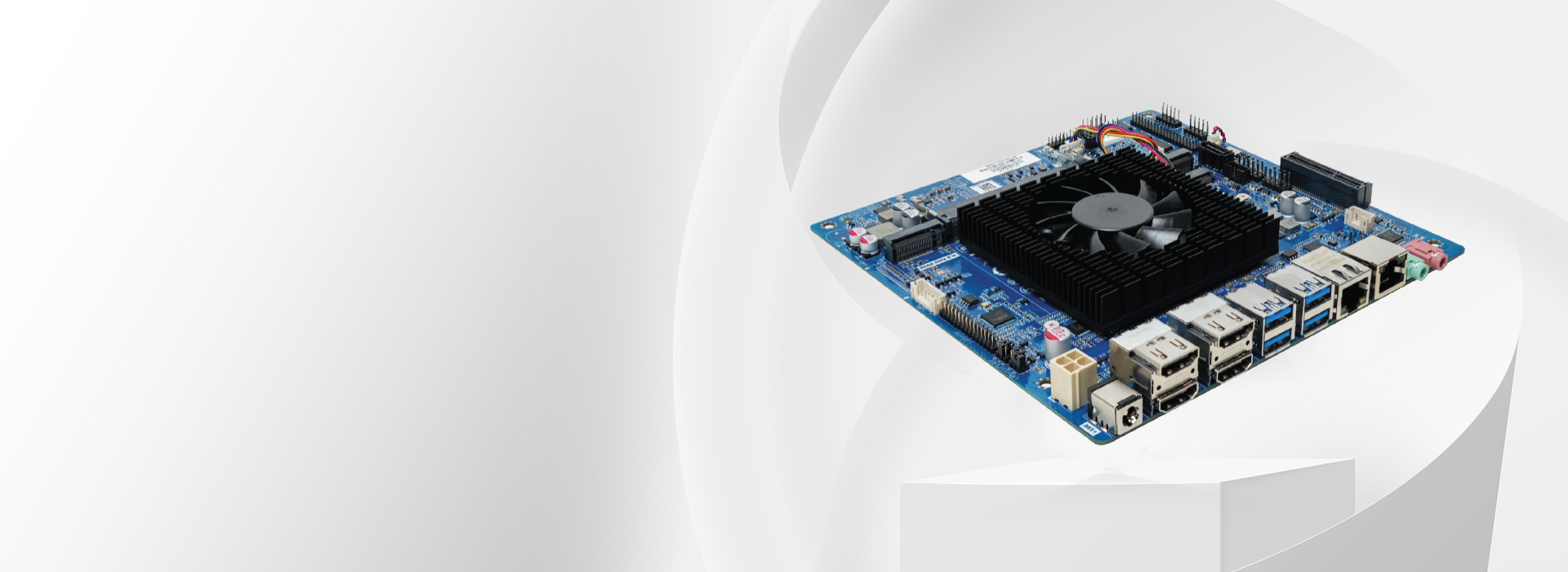

AL-10V2.0 Mini ITX Motherboard | Intel Alder Lake/Raptor Lake, 6×COM, 4×HDMI

Product Description

AL-10V2.0 is a compact Mini-ITX industrial motherboard built on Intel® Alder Lake and Raptor Lake-U/P series processors, designed to provide a balanced combination of computing performance, multi-display capability, and rich I/O in a standard 170 × 170 mm form factor. With support for modern Intel CPUs, dual-channel DDR4 memory, and flexible expansion interfaces, it serves as a reliable hardware platform for a wide range of embedded and industrial system designs.

Mini ITX Motherboard-AL-10 V2.0 Features

CPU: Intel® Alder Lake/Raptor Lake-U/P series processor

Memory: Dual channel SO-DIMM DDR4 up to 64GB

GPU: Intel Iris® Xe Graphics eligible/UHD Graphics, display via 4xHDMI+LVDS

Ethernet: Intel® i226(2.5GbE) + Intel® i219(1.0GbE)

Storage: M.2 Key M for NVMe SSD, M.2 Slot for SATA SSD/4G, SATA3.0

Expansion: M.2 Key E for WiFi/BT, PCIe x4 Slot

Power: 19V/12V DC-in

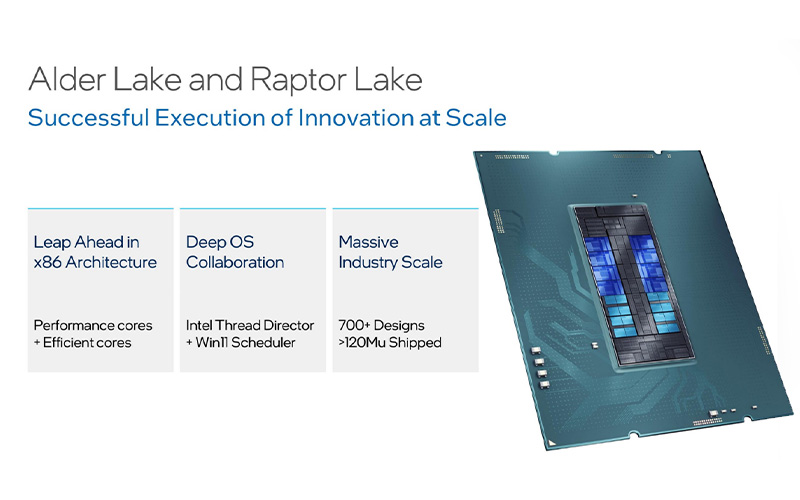

Intel® Alder Lake/Raptor Lake-U/P — Performance and Efficiency in Mini-ITX

High-Performance Processing

The AL-10V2.0 is built on Intel® Alder Lake and Raptor Lake-U/P series processors, offering CPU configurations from Core™ i3 to Core™ i7 within a standard 170 × 170mm Mini-ITX form factor. Intel's hybrid architecture — combining Performance-cores and Efficient-cores — delivers up to 12 cores and 16 threads at 15W or 28W base power, giving system designers a scalable compute platform without compromising thermal or space constraints. Integrated Intel® Iris® Xe or UHD Graphics drives up to four independent 4K displays simultaneously via HDMI 2.0 and LVDS/eDP, on a single board.

A Flexible Platform Across Industries and Deployment Scenarios

Wide Range Of Applications

The AL-10V2.0 is designed to serve as the compute core for a wide range of embedded and industrial system builds. Its combination of strong processing performance, multi-display output, rich serial communication, and standard Mini-ITX dimensions makes it a reliable hardware foundation that adapts to diverse integration requirements — from digital signage and multi-display control to financial workstations and industrial automation.

6×COM, GPIO, TPM 2.0 & Full Expansion for System Integrators

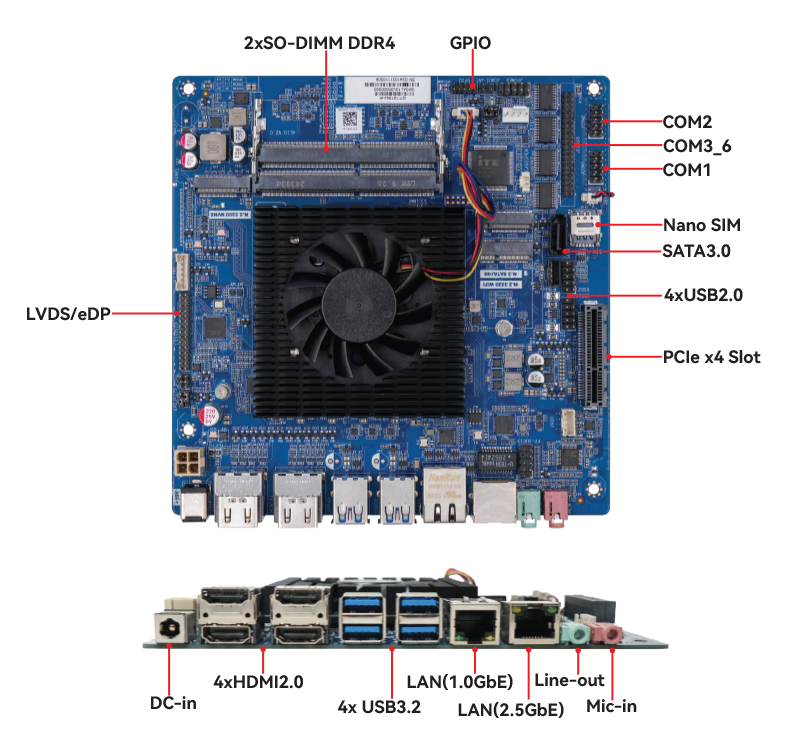

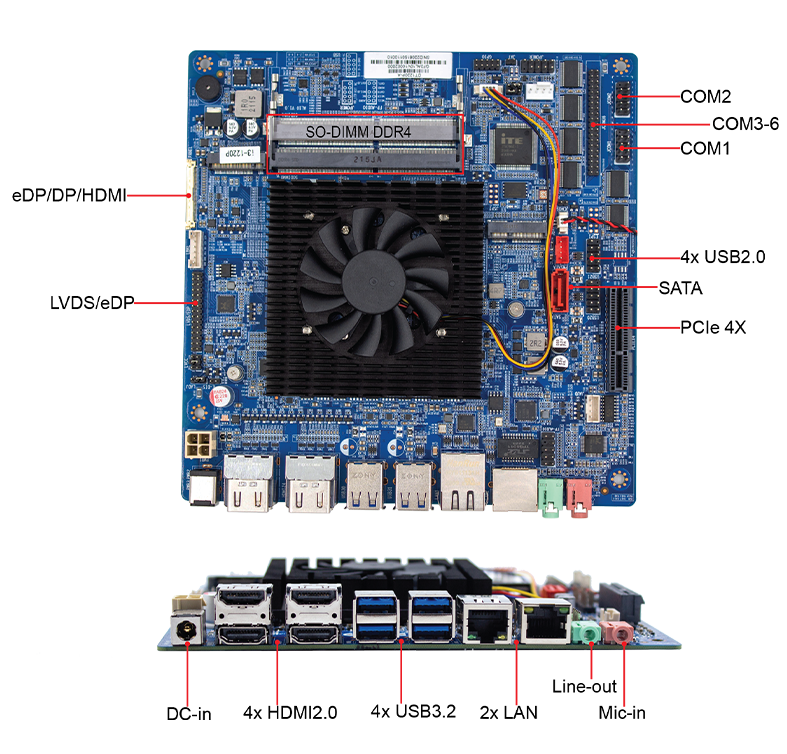

Rich I/O Interfaces

For system integrators, the AL-10V2.0 delivers the I/O density that embedded designs demand: 6×COM ports (RS232 by default, with RS485 option on COM1), dual Intel® Ethernet (2.5GbE + 1GbE) with Wake-on-LAN, 4×USB 3.2, 4×USB 2.0 headers, and 8-bit GPIO for direct hardware control. Storage and wireless expansion are handled through M.2 Key M (NVMe), M.2 Key B (SATA SSD or 4G module), M.2 Key E (Wi-Fi/BT, CNVi), SATA 3.0, and a PCIe Gen 4 x4 slot — with Nano SIM support for cellular deployments. Onboard TPM 2.0 (optional) and hardware monitoring with watchdog and auto power-on complete a board built for long-term, unattended industrial operation.

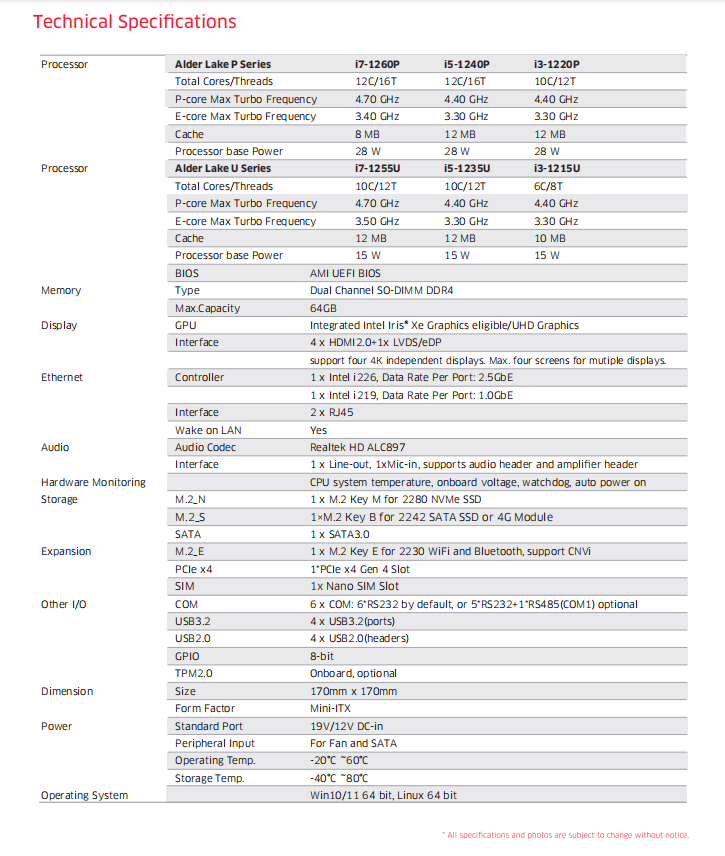

Mini ITX Motherboard-AL-10 V2.0 Specification

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

What form factor is the AL-10V2.0?

Standard Mini-ITX, 170 × 170mm — compatible with Mini-ITX enclosures and chassis.

What COM port configurations are supported?

6×COM ports — RS232 by default, with an optional configuration of 5×RS232 + 1×RS485 on COM1.

What display outputs are available?

4×HDMI 2.0 and 1×LVDS/eDP, supporting up to four independent 4K displays simultaneously.

What operating systems are supported?

Windows 10/11 64-bit and Linux 64-bit.

Is TPM 2.0 supported?

Yes — onboard TPM 2.0 is available as an optional configuration.
