Power at its Core
The 11th Gen Intel® Core i7/i5/i3/Celeron® processor (Code Name: Tiger Lake) is based on 10nm Willow Cove architecture. They are 2x more powerful than the previous generation, especially for the one’s features Intel Iris® Xe Graphics. Its allowing users to engage in light content creation and gaming without requiring a discrete graphic card.
Wide Application
It provides a great user experiences with improved productivity.
Digital Signage
Mutiple Display
Stock Trading
Rich I/O Interfaces
It contains 2x LAN, 2x USB2.0, 2x USB3.2, and 4xHDMI®2.0, catering most market requirements.
Product description

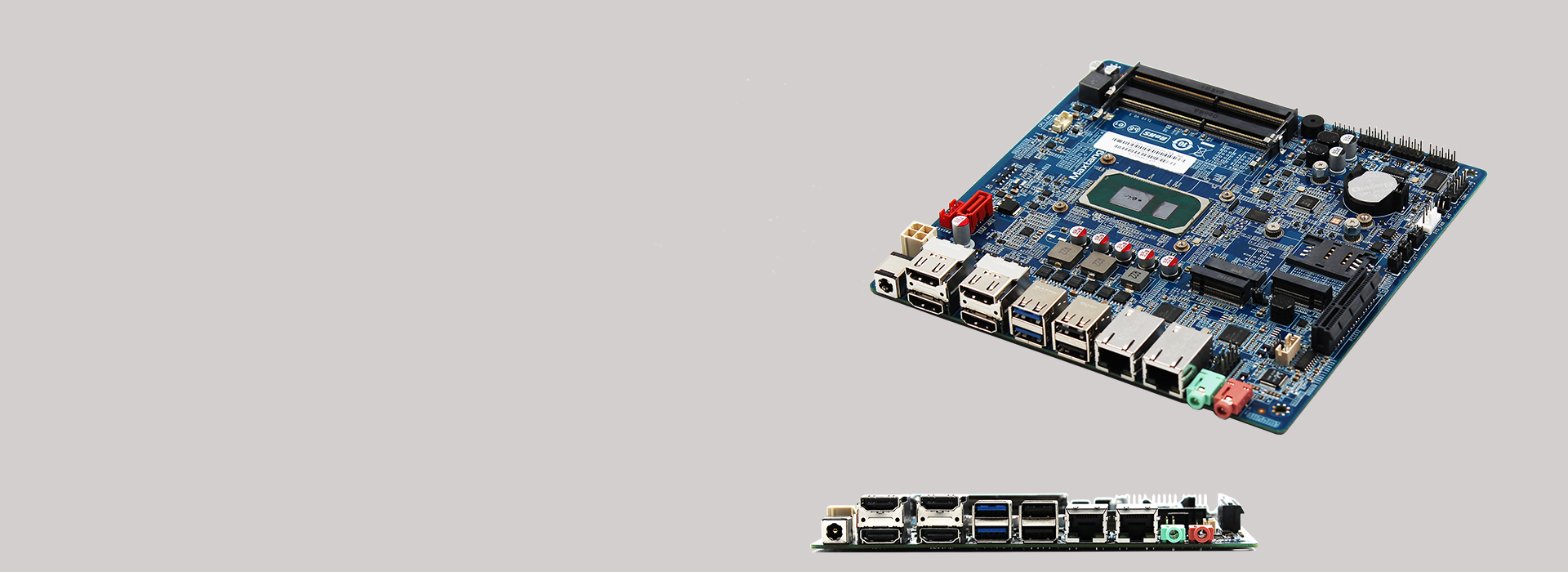

The TL10 Mini ITX motherboard is based on the 11th Gen Intel® Core i7/i5/i3/Celeron® processor (Code Name: Tiger Lake-U), provides a complete PC platform with excellent performance. The board supports 4xHDMI2.0 displays in addition to dual-channel SO-DIMM DDR4 memory, features two Gigabit Ethernet controllers, 3x M.2 for expansion.

The Maxtang industrial Mini-ITX motherboards are the perfect combination of compact size and solid performance, composed of high-quality components intend for long-life operations. It retains a robust design with stability, reliability, and cost advantages. It can offer you a great range of configurations to suit your specific needs.


    l    CPU: Intel® Tiger Lake-U Processors

    l    Memory: Dual Channel SO-DIMM DDR4 up to 64 GB

    l    Display: Intel Iris® Xe Graphics dispaly via 4HDMI®

    l    Ethernet: 10/100/1000Mbps

    l    Storage: SATA, M.2 for NVMe SSD

    l    Expansion: M.2 for WiFi, M.2 for 4G/5G, PCIe2X

    l    Power: 12V DC input

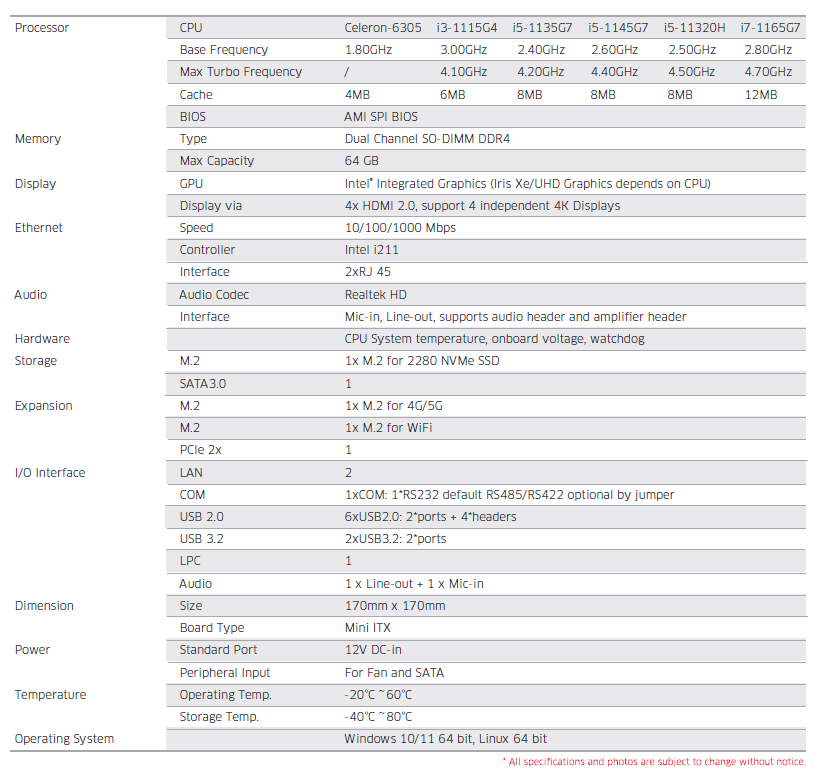

Technical Parameters

TL10 TS.png


*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.
