SBC-BYT-35 V1.0

BYT-35 V1.0
Product Description

Product describtion of the BYT-35 V1.0 3.5-Inch Single Board Computer

BYT-35 V1.0 is a low power consumption 3.5" single board computer, supporting Intel® Bay Trail Platform processors, Celeron® J1800, J1900, N2940 and E3845. It offers onboard 2GB or 4GB system memory for higher bandwidth and lower latencies for processes. Powered by Intel® i211 controllers, this board is equipped with dual Intel® Gigabit Ethernet.

Features

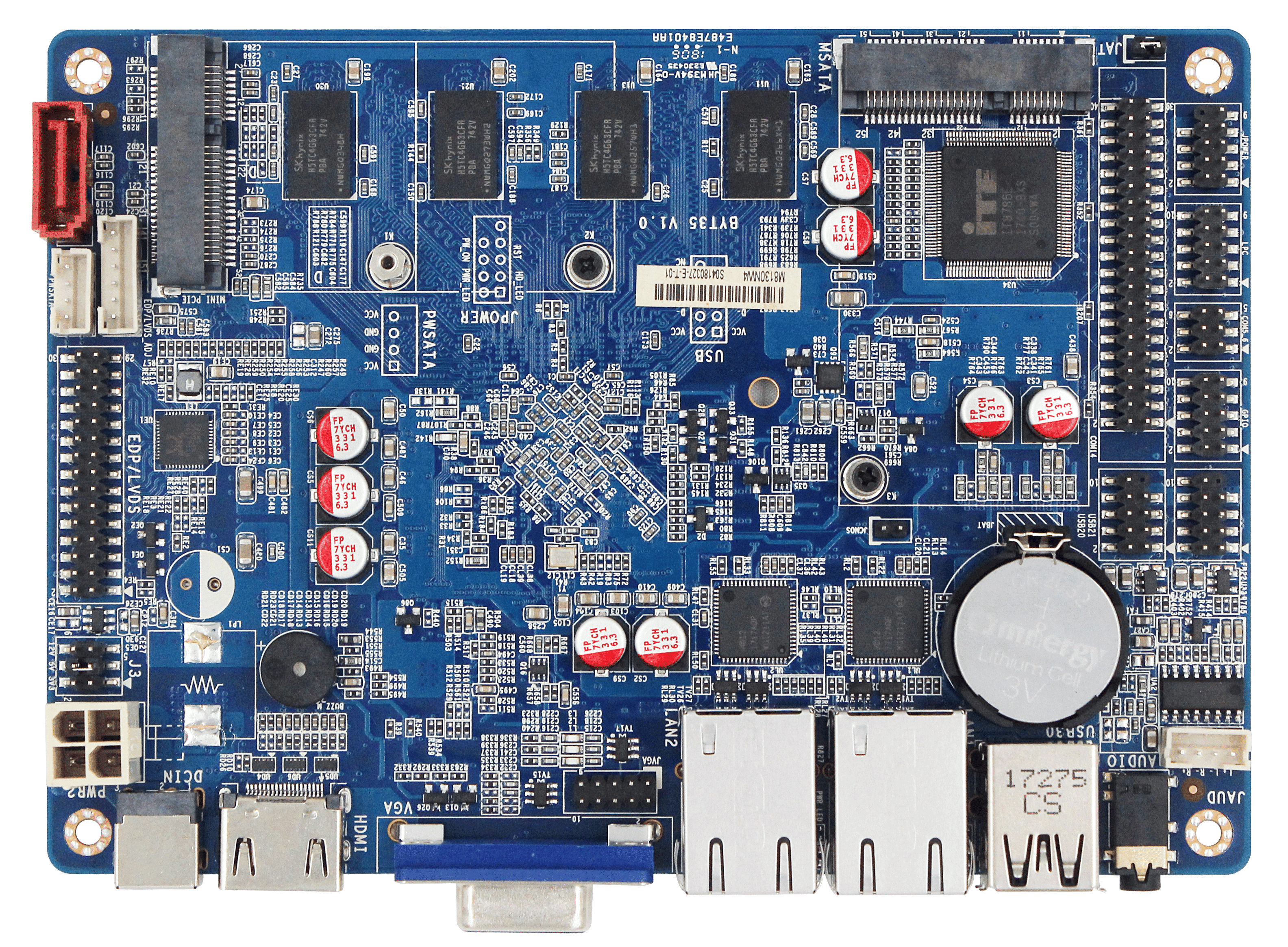

    Features of the BYT-35 V1.0 3.5-Inch Single Board Computer

    Features of the BYT-35 V2.0 3.5-Inch Single Board Computer

    • CPU: Intel® Bay Trail BGA processor

    • Memory: Onboard dual-channel DDR3L up to 4GB

    • Display: Intel® Graphics display via VGA, HDMI®, eDP/LVDS

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA2.0, mSATA, eMMC optional

    • Expansion: mini PCIe for WiFi, Mirco SIM

    • Power: 12V/19V DC input, or 12V~36V Optional

Multiple display of the BYT-35 V1.0 3.5-Inch Single Board Computer

Multiple display
Equipped with VGA, HDMI, and eDP/LVDS, the BYT-35 V1.0 supports flexible multiple display connectivity for a wide range of industrial and embedded applications. Its display design makes it easy to connect both standard external monitors and integrated display panels, providing a practical visual solution for industrial control systems, HMI devices, digital signage, and self-service terminals. Combined with its onboard dual-channel DDR3L memory architecture and classic industrial interface layout, BYT-35 V1.0 is well suited for stable and cost-effective deployments that require reliable visual performance.

Wide Range Of Applications of the BYT-35 V1.0 3.5-Inch Single Board Computer

Wide Range Of Application
BYT-35 V1.0 is designed for a wide range of embedded and industrial applications, including medical systems, transportation, and IoT solutions. With its practical interface layout, stable serial connectivity, and reliable platform design, it is well suited for traditional control systems, industrial automation equipment, HMI devices, and communication-oriented deployments that require dependable long-term operation.
Medical
Transportation
IoT Solutions

Rich I/O Interfaces of the BYT-35 V1.0 3.5-Inch Single Board Computer

Rich I/O Interfaces
The Maxtang BYT-35 V1.0 industrial motherboard is equipped with comprehensive rich I/O interfaces to deliver maximum flexibility and connectivity. It provides 6×COM ports (4×RS232 + 2×RS485), 1×USB3.2, 5×USB2.0 (1 port + 4 headers), 8×GPIO, dual Gigabit LAN (Intel® i210), along with HDMI®, VGA, and eDP/LVDS display outputs. Audio is supported via Mic-in and Line-out ports, while expansion options include mini PCIe for Wi-Fi/3G/4G/Bluetooth, Micro SIM, and optional eMMC storage. With standard 12V/19V DC-in or 12V–36V wide-range input, the BYT-35 V1.0 ensures stable operation in demanding environments.
Technical Parameters

Specification of the BYT-35 V1.0 3.5-Inch Single Board Computer


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads
Drivers Audio_Realtek_ALC662 Drivers Audio_Realtek_ALC897 Drivers LAN_Intel_1.0GbE Drivers Intel Bay Trail Series Datasheet_BYT35V1.0 User Manual_BYT35V1.5
