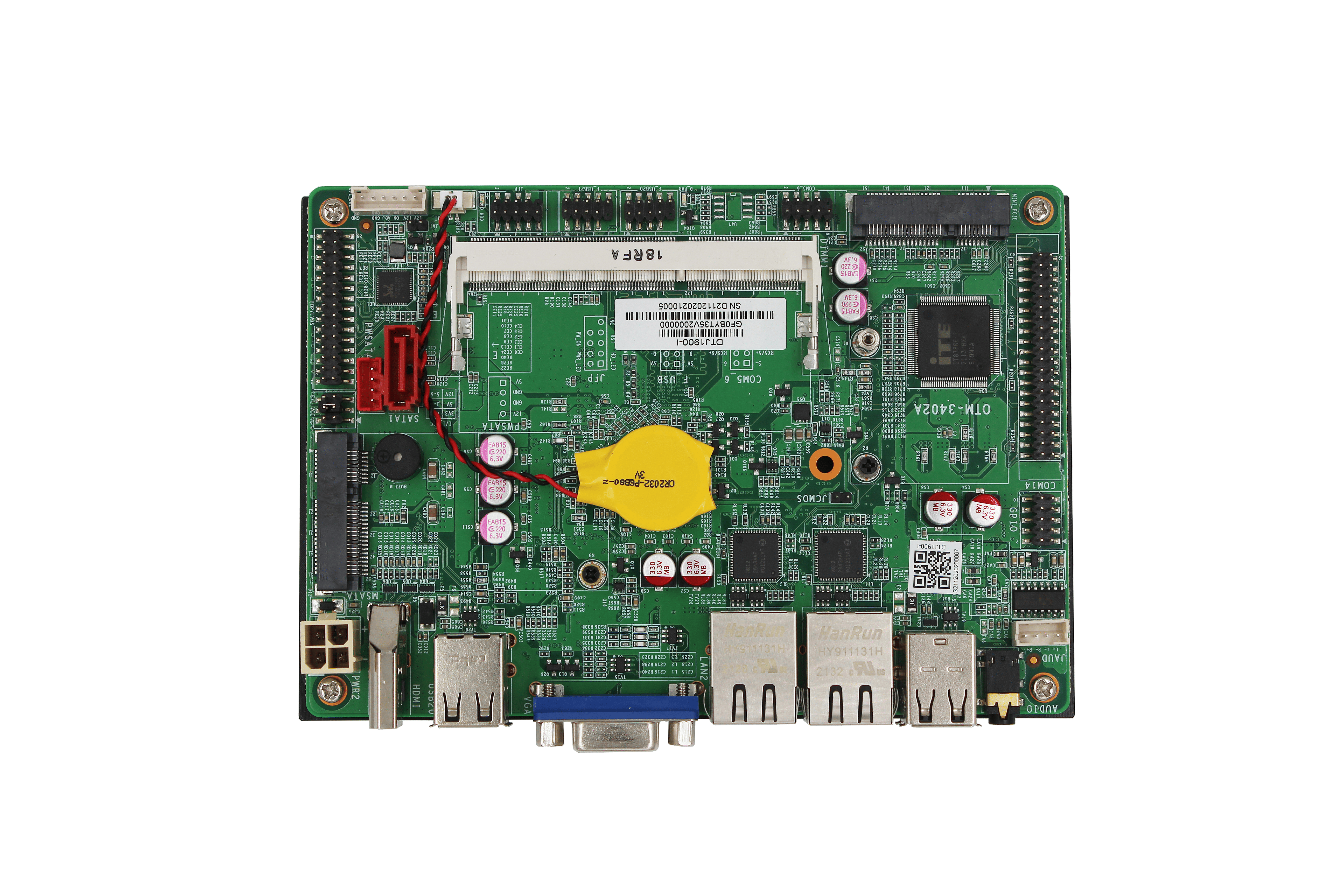

BYT-35 V2.0 3.5" Single Board Computer

Product describtion

BYT-35 V2.0 is a low power consumption 3.5" single board computer, supporting Intel^® Bay Trail Platform processors, Celeron^® J1800, Celeron^® J1900, N2940 and E3845. It offers single channel SO-DIMM DDR3 system memory for higher bandwidth and lower latencies for processes. Powered by Intel^® i211 controllers, this board is equipped with Dual Intel^® Gigabit Ethernet.

Multiple display of the BYT-35 V2.0 3.5-Inch Single Board Computer

Multiple display

BYT-35 V2.0 is equipped with HDMI, VGA, and eDP/LVDS interfaces to support flexible display integration across a variety of industrial applications. Whether connecting to standard external monitors or built-in display panels, it delivers practical visual support for industrial control systems, HMI devices, digital signage, and self-service terminals. Paired with single-channel DDR3L memory and a rich industrial I/O design, it is a reliable and cost-efficient solution for embedded systems that require stable display performance.

Wide Range Of Applications of the BYT-35 V2.0 3.5-Inch Single Board Computer

Wide Range Of Applications

With its compact design, flexible display support, and rich industrial I/O interfaces, the BYT-35 V2.0 is well suited for a wide range of embedded and industrial applications. It can be deployed in areas such as medical equipment, transportation systems, and IoT solutions, providing stable and cost-effective computing performance for different project requirements.

Rich I/O Interfaces

BYT-35 V2.0 is designed with a versatile range of industrial I/O interfaces to support diverse embedded applications. It features 6 COM ports, dual Gigabit LAN, 7 USB 2.0 ports, 1 USB 3.2 port, 8 GPIO, and audio connectivity, allowing easy integration with a wide variety of peripherals and industrial equipment. With support for both legacy serial devices and modern high-speed connections, the BYT-35 V2.0 provides a practical and reliable foundation for industrial control, automation, HMI, smart terminals, and other embedded systems.

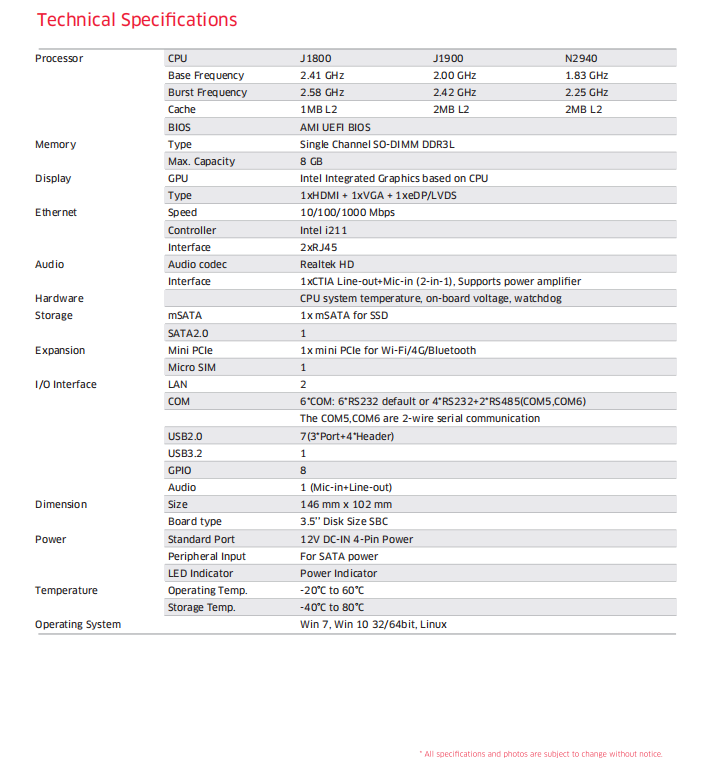

Specification of the BYT-35 V2.0 3.5-Inch Single Board Computer

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.
