Product Description

What Is the WCL-35 Intel® Wildcat Lake 3.5-Inch SBC Designed For?

The Maxtang WCL-35 is a 3.5-inch single board computer powered by the Intel® Core™ 3 Processor 304, featuring 5 cores, 5 threads, a maximum turbo frequency of 4.30GHz, and an integrated NPU delivering up to 15 TOPS for compatible AI workloads. It offers onboard LPDDR5-6400 memory in 8GB, 12GB, or 16GB configurations and triple-display connectivity through two HDMI 2.0 outputs and one eDP/LVDS interface. Dual Intel® i210 Gigabit Ethernet, six COM interfaces, eight USB connections, and 8-bit GPIO support industrial equipment integration. Storage options include M.2 NVMe, M.2 SATA, a SATA FPC interface, and optional onboard UFS flash, while optional 4G, Wi-Fi, and Bluetooth modules provide wireless connectivity. With 9–36V DC input and an operating temperature range of -20°C to 60°C, the WCL-35 is designed for industrial automation, smart control, edge computing, kiosks, and multi-display embedded systems.
Features

    What Hardware, Connectivity, and Expansion Does the WCL-35 Provide?

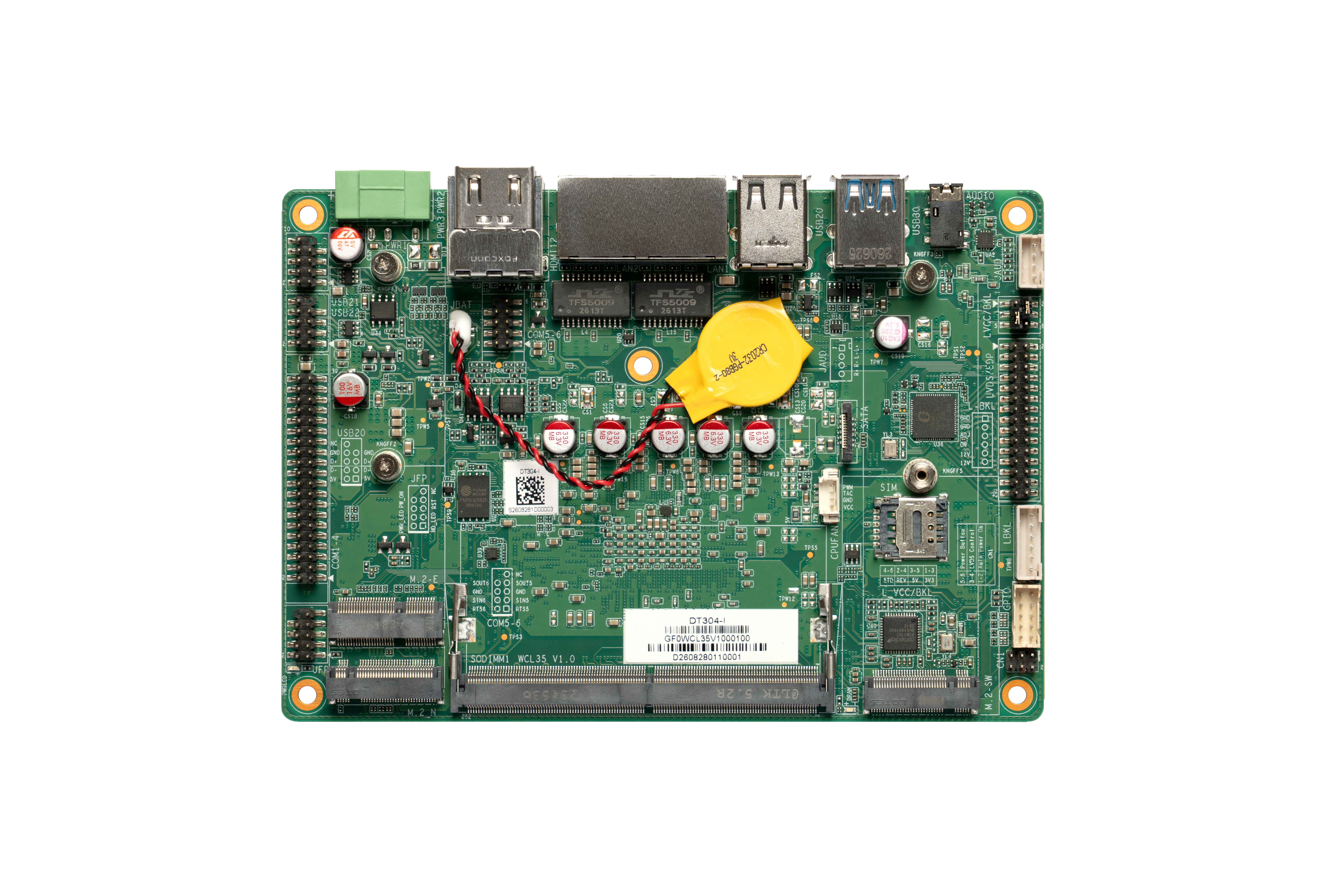

    WCL-35
    • CPU: Intel® Wildcat Lake Series Processor

    • Memory: Onboard LPDDR5, 8GB/12GB/16GB

    • Display: Integrated Intel Graphics display via 2 x HDMI+eDP/LVDs

    • Ethernet: 10/100/1000Mbps

    • Storage & Expansion: M.2 Key M Slot for NVMe SSD, M.2 Key B Slot for SATA SSD or 4G, M.2 Key E Slot for Wi-Fi&BT, SATA FPC Interface, UFS Flash optional

    • Power: 9V-36V 2-Pin DC-IN Phoenix Connector/DC-IN Jack Optional

How Does the Intel® Core™ 3 Processor 304 Accelerate Edge AI Workloads?

Integrated NPU Performance for Edge AI
Powered by the Intel® Core™ 3 Processor 304 from the Wildcat Lake Series, the WCL-35 provides 5 cores, 5 threads, a maximum turbo frequency of 4.30GHz, 6MB Intel® Smart Cache, and a 15W TDP. Its integrated NPU delivers up to 15 TOPS for compatible on-device AI workloads. Integrated Intel® Graphics and onboard LPDDR5-6400 memory in 8GB, 12GB, or 16GB configurations provide a platform for intelligent control, visual interfaces, and edge computing. Actual AI functionality and performance depend on the selected models, software support, and deployment conditions.

Where Can the WCL-35 Single Board Computer Be Deployed?

Built for Intelligent Embedded Applications
The WCL-35 is designed for industrial automation, smart control systems, edge computing, self-service kiosks, and multi-display embedded applications. Its integrated NPU supports local AI processing, while dual Gigabit LAN, multiple COM ports, GPIO, and wide 9V–36V power input simplify connection to controllers, sensors, and networked equipment. Dual HDMI 2.0 plus eDP/LVDS provide flexible display integration for operator interfaces, information terminals, and smart control panels. Wide-temperature operation, hardware monitoring, watchdog, and automatic power-on further support reliable deployment in demanding embedded environments.

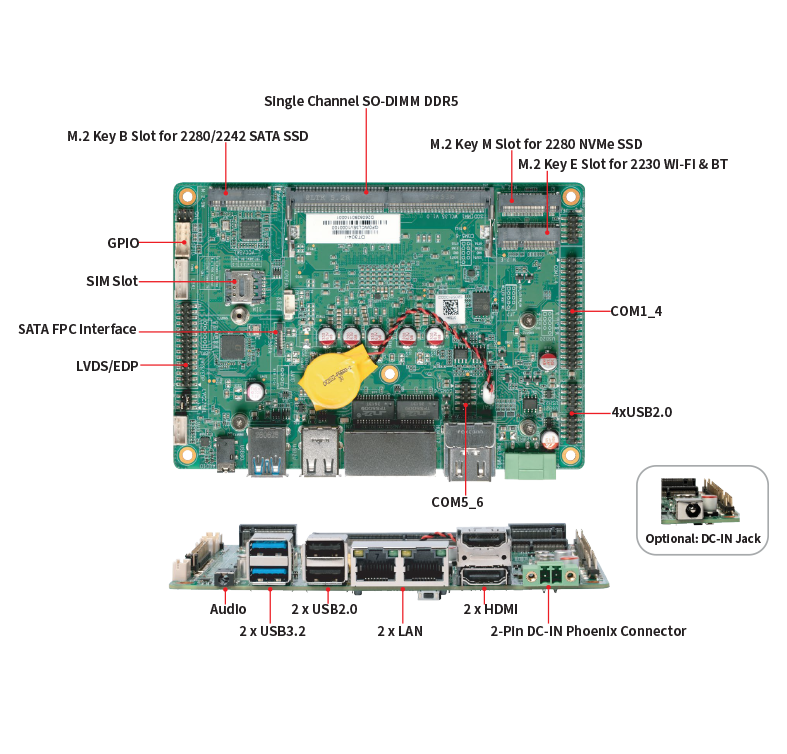

What Industrial I/O and Expansion Options Does the WCL-35 Offer?

Rich I/O for Flexible System Integration
The WCL-35 provides dual Intel® i210 Gigabit Ethernet, six COM interfaces, two rear USB 3.2 ports, six USB 2.0 connections, 8-bit GPIO, dual HDMI 2.0 outputs, an eDP/LVDS interface, and a CTIA 2-in-1 audio jack. The USB 2.0 connections comprise two rear ports and four connections through onboard headers. The standard serial configuration includes four RS-232 and two RS-485 interfaces, with six RS-232 interfaces available as an optional configuration. Storage expansion includes an M.2 Key M 2280 slot for a PCIe Gen 4 x2 NVMe SSD, an M.2 Key B slot for a 2242 or 2280 SATA SSD, a SATA FPC interface, and optional onboard UFS 2.2/3.1 flash. The Key B slot can alternatively accommodate an optional 3042 4G module, while a separate M.2 Key E 2230 slot supports an optional Wi-Fi and Bluetooth module. These interfaces support integration with industrial controllers, serial instruments, displays, network devices, and peripherals.
Technical Parameters

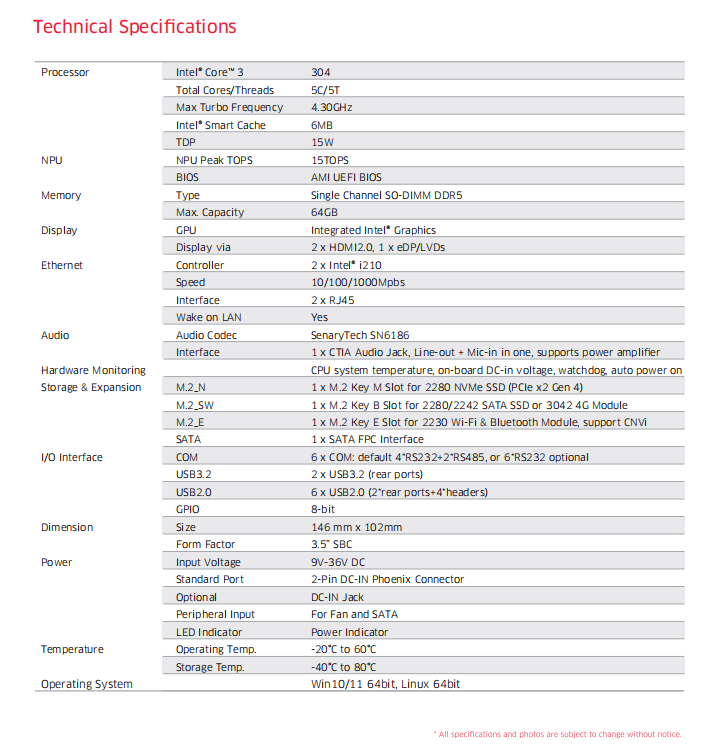

Single Board Computer WCL-35 Specifications


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processor does the WCL-35 use?

    The WCL-35 uses the Intel® Core™ 3 Processor 304 from the Wildcat Lake Series. It provides 5 cores, 5 threads, a maximum turbo frequency of 4.30GHz, 6MB Intel® Smart Cache, and a 15W TDP.
  • Does the WCL-35 include an NPU for AI acceleration?

    Yes. The Intel® Core™ 3 Processor 304 includes an integrated NPU delivering up to 15 TOPS for compatible on-device AI workloads.
  • How much memory does the WCL-35 support?

    The WCL-35 V2.0 uses onboard LPDDR5-6400 memory, available in 8GB, 12GB, or 16GB configurations. The memory is soldered to the board rather than installed in a SO-DIMM slot, so the required capacity should be selected when ordering.
  • How many displays can the WCL-35 connect?

    The WCL-35 provides triple-display connectivity through two HDMI 2.0 outputs and one eDP/LVDS interface. Final display timing, resolution, and panel compatibility should be confirmed for the selected project configuration.
  • What network interfaces does the WCL-35 provide?

    The WCL-35 provides two RJ45 Gigabit Ethernet ports powered by Intel® i210 controllers. Both support 10/100/1000Mbps networking, and the board supports Wake-on-LAN.
  • What storage options are available for the WCL-35?

    The WCL-35 V2.0 includes one M.2 Key M 2280 slot for a PCIe Gen 4 x2 NVMe SSD, one M.2 Key B slot for a 2242 or 2280 SATA SSD, and one SATA FPC interface. Onboard UFS 2.2/3.1 flash is available as an optional configuration. The Key B slot is shared between SATA storage and optional 4G expansion, so these two options cannot occupy that slot simultaneously. Confirm the required UFS version and capacity when ordering.
  • Does the WCL-35 support 4G, Wi-Fi, and Bluetooth?

    Yes. The M.2 Key B slot can support an optional 3042 4G module, while the M.2 Key E 2230 slot supports an optional Wi-Fi and Bluetooth module. The M.2 Key B slot is shared between SATA storage and 4G expansion, so both options cannot occupy that slot simultaneously.
  • What serial interfaces does the WCL-35 provide?

    The WCL-35 supports up to six COM ports. The technical specifications list a standard configuration of four RS-232 and two RS-485 interfaces, with an optional six-RS-232 configuration. The required serial configuration should be confirmed when ordering.
  • How many USB connections does the WCL-35 provide?

    The WCL-35 provides two rear USB 3.2 ports and six USB 2.0 connections, consisting of two rear ports and four connections through onboard headers.
  • What power input does the WCL-35 support?

    The WCL-35 supports a wide 9V–36V DC input through a standard 2-pin Phoenix connector. A DC-in jack is available as an optional configuration.
  • What is the operating temperature range of the WCL-35?

    The WCL-35 operates from -20°C to 60°C and has a storage temperature range of -40°C to 80°C.
  • What are the dimensions of the WCL-35?

    The WCL-35 uses a 3.5-inch SBC form factor and measures 146 mm × 102 mm.
  • What operating systems does the WCL-35 support?

    The WCL-35 supports Windows 10/11 64-bit and Linux 64-bit.
  • What applications is the WCL-35 designed for?

    The WCL-35 is designed for industrial automation, smart control systems, edge computing, self-service kiosks, operator interfaces, information terminals, multi-display systems, and other intelligent embedded applications.
