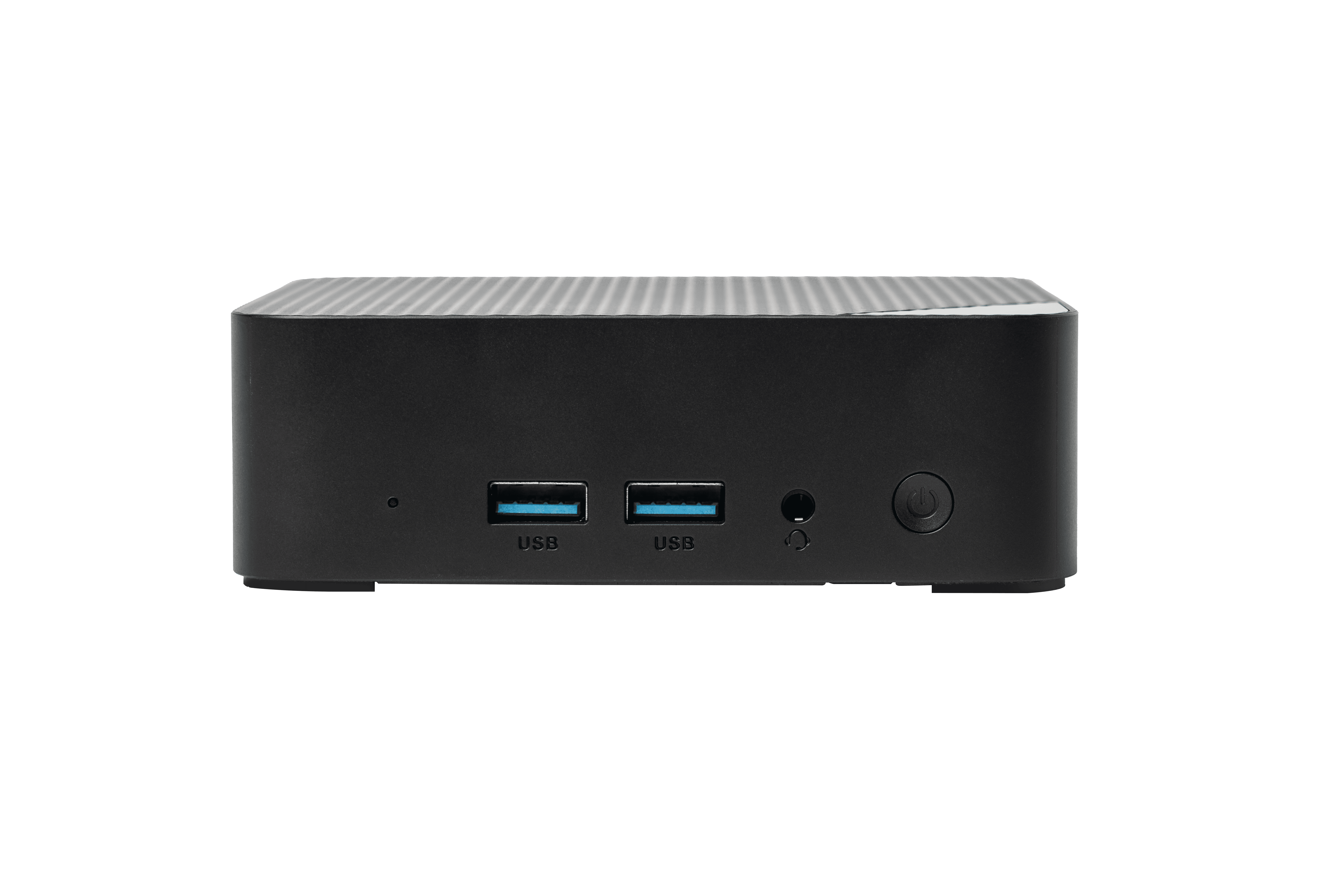

MUC-FP551 | AMD Ryzen Ultra-Compact NUC with Radeon

What Is the MUC-FP551 AMD Ryzen NUC Designed For?

The MUC-FP551 is an ultra-compact NUC powered by AMD Ryzen™ Embedded R2000 Series and Ryzen™ 3000 Series processors with integrated AMD Radeon™ Graphics, housed in a compact 112.4 × 112.4 × 35.5 mm chassis. It supports up to 64GB of dual-channel SO-DIMM DDR4 memory, up to three displays through two HDMI outputs and one full-function USB-C port, dual M.2 storage slots, and a comprehensive commercial I/O set including USB 3.2, Gigabit Ethernet, audio, and hardware watchdog support. With support for Windows 10/11 and Linux, the MUC-FP551 is well suited for digital signage, kiosks, retail POS systems, and meeting-room applications.

Why System Integrators Choose the MUC-FP551

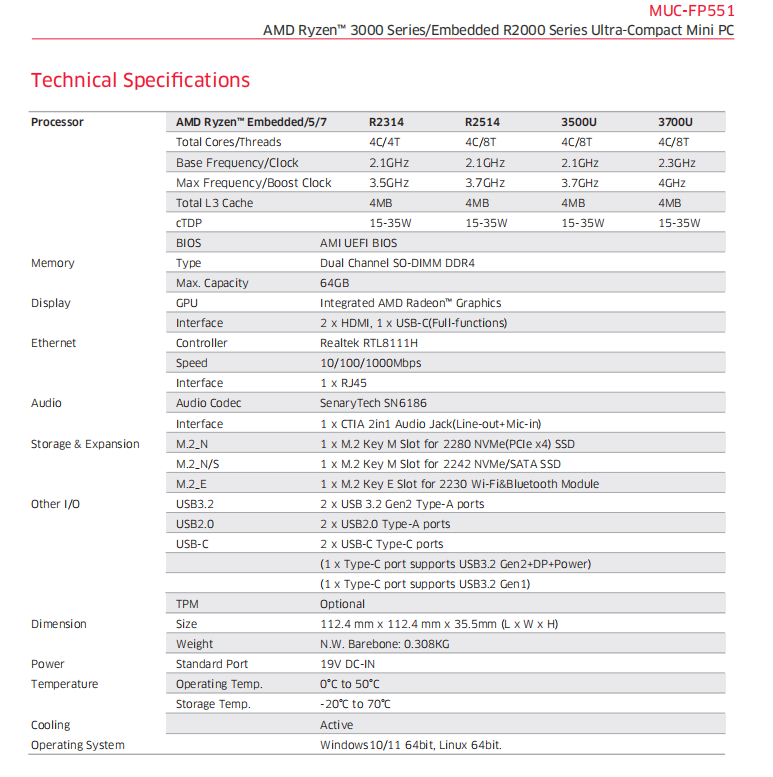

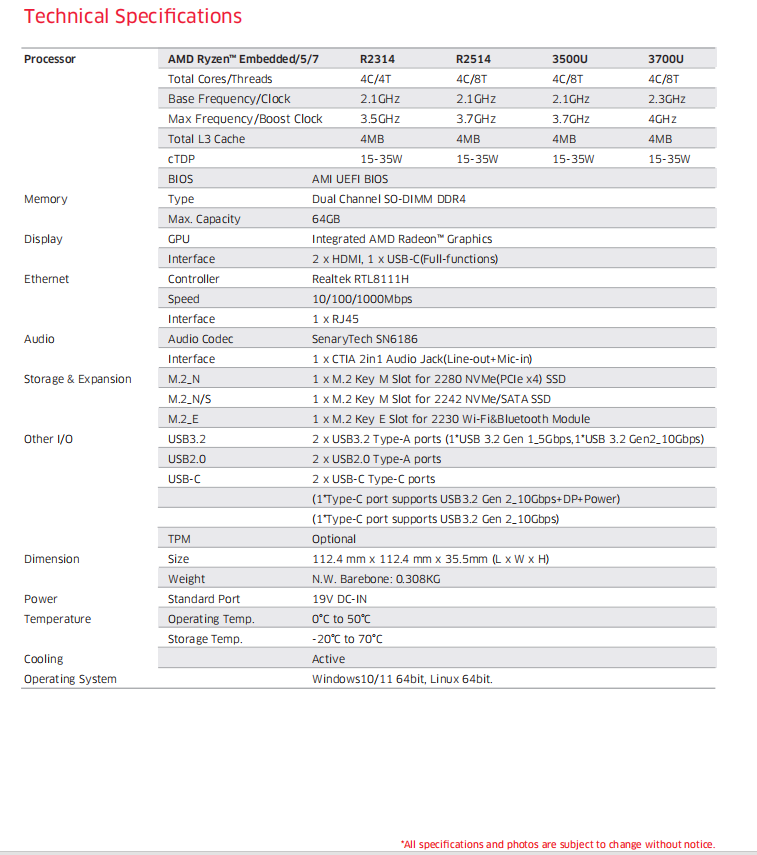

CPU: AMD Ryzen™ 3000 Series/Embedded R2000 Series
Memory: Dual Channel DDR4 for Memory up to 64GB
Display: AMD Radeon™ Graphics, Displays via DP, HDMI, USB-C
I/O Ports: 2 x USB-C, 2 x USB3.2, 2 x USB2.0, 1 x LAN(1.0GbE), Audio
Storage: M.2_Key M for 2280 NVMe, M.2_Key M for 2242 NVMe/SATA
Expansion: M.2_Key E for 2230 WiFi
Power: 19V DC-in

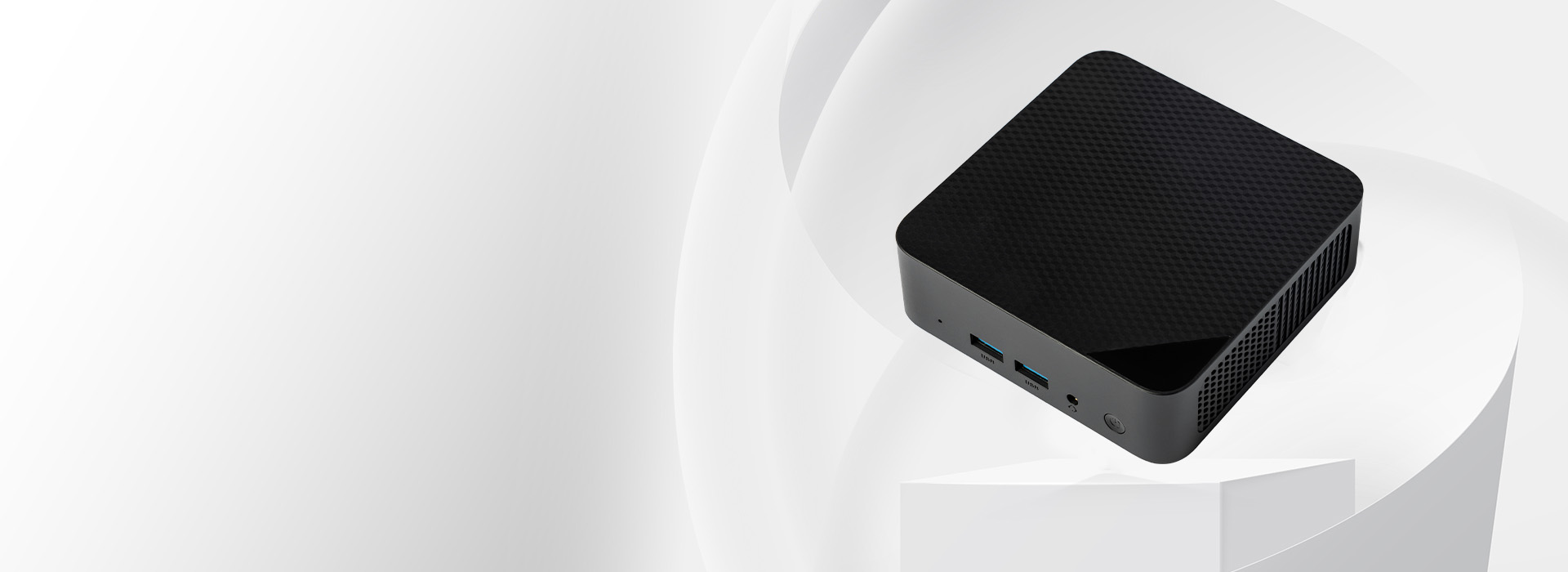

AMD Ryzen Performance in an Ultra-Compact 112mm Form Factor

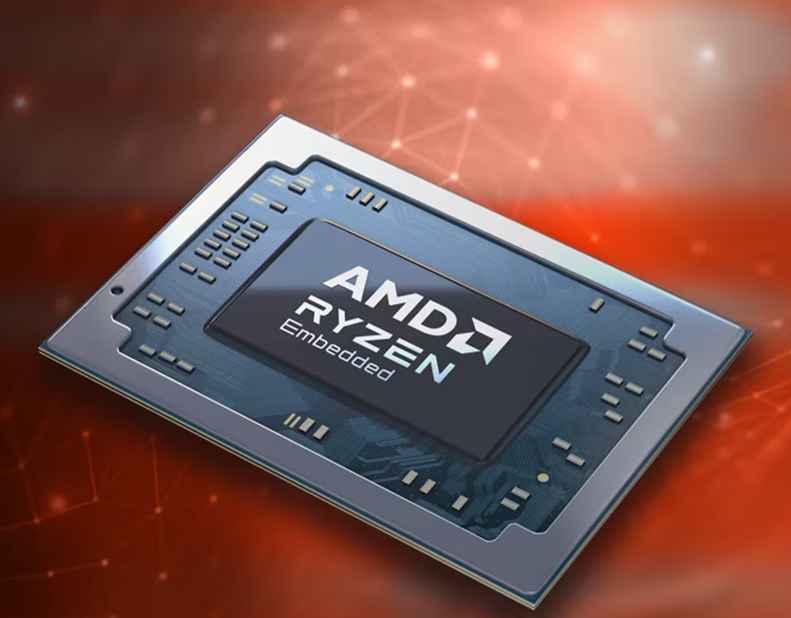

AMD Ryzen + Radeon Graphics in a Palm-Sized Chassis

The MUC-FP551 packs AMD Ryzen™ Embedded R2000 Series and Ryzen™ 3000 Series processor options, including the Ryzen™ 7 3700U with a boost clock of up to 4.0GHz. Integrated AMD Radeon™ Graphics support multi-display rendering and light GPU workloads without a discrete graphics card, while active cooling helps maintain stable performance within the compact enclosure. This combination makes the MUC-FP551 suitable for kiosks, retail terminals, behind-display installations, office systems, and embedded commercial applications where space is limited.

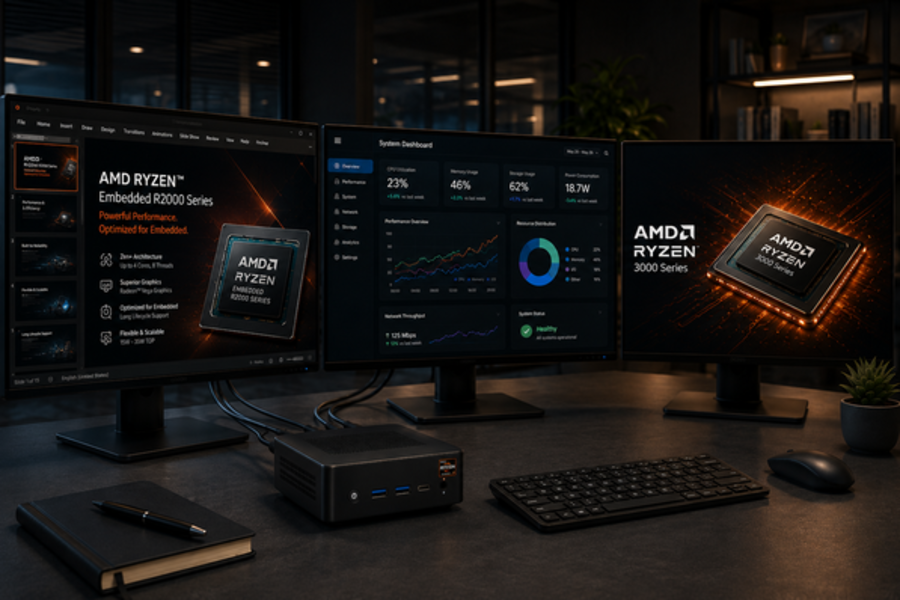

How Does the MUC-FP551 Support Three Displays?

Triple Display Support via Dual HDMI and Full-Function USB-C

The MUC-FP551 supports up to three displays through two HDMI outputs and one full-function USB-C port. The full-function USB-C port supports USB 3.2 Gen2 10Gbps data transfer, DisplayPort output, and power delivery, while the second USB-C port provides USB 3.2 Gen2 10Gbps data connectivity. Combined with two USB 3.2 Type-A ports, two USB 2.0 ports, Gigabit Ethernet, and a CTIA audio jack, the MUC-FP551 provides flexible connectivity for digital signage, meeting rooms, kiosks, and multi-screen retail installations.

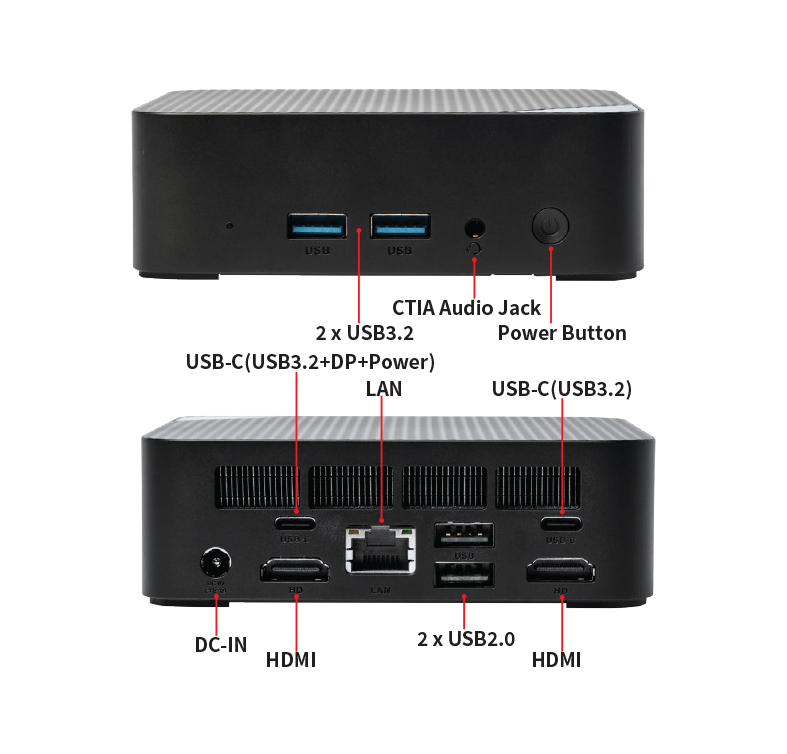

Versatile I/O for Kiosks, Retail, and Commercial Deployments

Rich I/O Interfaces

The MUC-FP551 provides one Gigabit Ethernet port, one USB 3.2 Gen2 10Gbps Type-A port, one USB 3.2 Gen1 5Gbps Type-A port, two USB 2.0 Type-A ports, two USB-C ports, two HDMI outputs, and one CTIA audio jack. Both USB-C ports support USB 3.2 Gen2 10Gbps data transfer, while one also supports DisplayPort output and power delivery. Storage expansion includes one M.2 Key M 2280 slot for a PCIe x4 NVMe SSD and one M.2 Key M 2242 slot for an NVMe or SATA SSD, plus an M.2 Key E 2230 slot for optional Wi-Fi and Bluetooth. The system uses a standard 19V DC input.

FAQ

What processors does the MUC-FP551 support?

The MUC-FP551 supports AMD Ryzen™ Embedded R2000 Series processors (R2314 and R2514) and AMD Ryzen™ 3000 Series processors (Ryzen™ 5 3500U and Ryzen™ 7 3700U).

How many displays does the MUC-FP551 support?

The MUC-FP551 supports up to three displays through two HDMI outputs and one full-function USB-C port with DisplayPort output.

How much memory does the MUC-FP551 support?

The MUC-FP551 supports up to 64GB of dual-channel SO-DIMM DDR4 memory.

What storage options are available?

The MUC-FP551 includes one M.2 Key M 2280 slot for a PCIe x4 NVMe SSD and one M.2 Key M 2242 slot that supports either an NVMe or SATA SSD.

Does the MUC-FP551 support Wi-Fi and Bluetooth?

Yes. The MUC-FP551 includes an M.2 Key E 2230 slot for installing an optional Wi-Fi and Bluetooth module.

What is the USB-C port configuration?

The MUC-FP551 has two USB-C ports. Both support USB 3.2 Gen2 data transfer at up to 10Gbps. One USB-C port also supports DisplayPort output and power delivery, while the second provides USB data connectivity.

What are the dimensions of the MUC-FP551?

The MUC-FP551 chassis measures 112.4 mm × 112.4 mm × 35.5 mm (L × W × H) and weighs approximately 0.308 kg in its barebone configuration.

What operating systems does the MUC-FP551 support?

The MUC-FP551 supports Windows 10/11 64-bit and Linux 64-bit.

What is the operating temperature range?

The MUC-FP551 operates from 0°C to 50°C and has a storage temperature range of -20°C to 70°C. It uses active cooling to support stable operation within the specified temperature range.

What applications is the MUC-FP551 designed for?

The MUC-FP551 is well suited for digital signage players, retail kiosks, POS systems, self-service terminals, meeting-room systems, office computing, education devices, and other commercial edge computing applications that require a compact NUC with flexible connectivity.
