NUC - MUC-5095

MUC-5095
Product Description

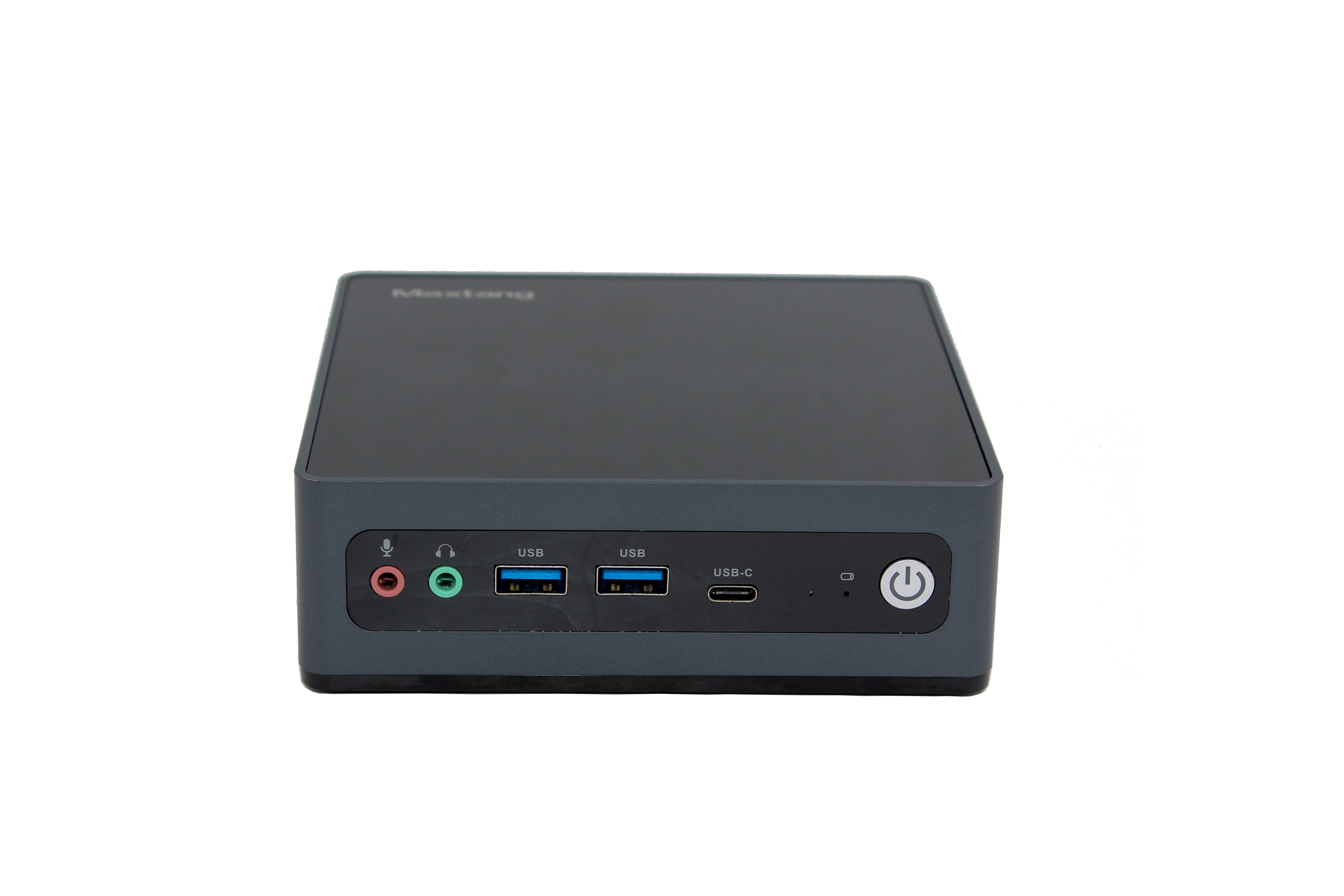

Mini-PC MUC-5095 Product Description

Maxtang's MUC-5095 mini-PC incorporates the Intel® Jasper Lake N5095/N5095A/N5105 processor offers you greater computing power with cost advantages. It supports dual-channel SO-DIMM DDR4 up to 32GB and dual independent displays via 2xHDMI®2.0. Features 1xM.2 SATA/NVMe for storage. A comprehensive connectivity option  2x USB3.2, 2xUSB2.0, 1xLAN, 1x USB-C, Mic-in, and Line-out with standard 12V DC-in. It is covered with an aluminum enclosure and is desktop ready easy to install.




Features

    Mini-PC MUC-5095 Features

    MUC (1 of 6).jpg

    • Intel® Celeron® Processor N5095/N5095A/N5105

    • SO-DIMM DDR4 for memory up to 32GB

    • Dual Display via 2x HDMI®2.0

    • 10/100/1000Mbps Ethernet

    • Built-in Wi-Fi and Bluetooth

    • Compact design and low power consumption

    • Aluminum enclosure, ready to use

Intel® Jasper Lake Processor N5095/N5095A/N5105

Intel® Jasper Lake Processor N5095/N5095A/N5105
The MUC-5095 NUC is equipped with Intel® Jasper Lake processors, delivering dependable computing power with integrated UHD graphics and dual HDMI 2.0 outputs for crisp 4K display. Designed with flexibility and stability in mind, it supports up to 32GB of DDR4 memory, making it well-suited for smooth multitasking. Its compact form factor and versatile connectivity options make it a perfect choice for office productivity, retail operations, digital signage displays, and kiosk solution.

Great Space-Saving

Great Space-Saving
Despite its small form factor, the MUC-5095 packs powerful features, including M.2 SSD and
Wi-Fi/BT expansion, plus dual HDMI outputs for multi-display setups. Perfect for offices, retail
counters, kiosks, or digital signage where space is limited.

Rich I/O Interfaces

Rich I/O Interfaces
Features one RJ45 10/100/1000Mbps ethernet controller,
SATA3.0 and M.2 for storage, addition M.2 for Wi-Fi/Bluetooth for expansion.
A rich I/O interface includes 2x USB3.2, 2xUSB2.0, 2xHDMI®, and USB-C with standard 12 DC-in carters most market's requirements.


Technical Parameters

NUC MUC-5095 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What use cases is this Mini PC suitable for?
    MUC-5095 is well-suited for diverse applications such as kiosks, PoS systems, retail, home, or office environments.
  • How many displays does it support?
    MUC-5095 provides dual independent displays via 2× HDMI 2.0 ports.
  • Can the memory and storage be upgraded?
    Yes, both the memory and storage are upgradeable according to user requirements; detailed information on the maximum supported capacity can be found in the datasheet.
  • Does it support VESA mounting?
    VESA mounting supported.
Downloads
Datasheet_MUC-5095 Drivers Audio_Realtek_ALC897 Drivers LAN_Realtek_1.0GbE Drivers Intel Jasper Lake Series
