The Maxtang FX-TL10 is an embedded mini-PC based on the Intel® Tiger Lake-U proces-sor, provides a complete PC platform with powerful performance. Its memory has dual-channel SO-DIMM DDR4 up to 64GB Display via four HDMI®2.0 with Intel® Iris® Xe Graphics or UHD Graphics. Features two 1-Gigabit Ethernet controllers and 3x M.2 for SSD modules, Wi-Fi, 4G/5G. A rich input/output interface includes 2x LAN, 1x COM, 6x USB, 2 x Audio Ports (Mic-in+ Line-out) with standard 12V/19V DC-in, caters to most market’s requirement.
The FX-TL10 is an ideal solution for various applications, especially the one requiring a high-speed communication, front-end mini-server or high-resolution display products like electronic gaming machines, etc. Maxtang is a member of the Intel IoT Solutions Alliance on Industrial Solution Builders Specialist. This product retains the robust design of all Maxtang product lines at a new cost-effective price point. Its powerful features can provide a great user experience, increase productivity with stability, reliability.
CPU: Intel® Tiger Lake-U Processors
Memory: Dual channel SO-DIMM DDR4 (Up to 64 GB)
Display: Intel® Iris® Xe/UHD Graphics via HDMI®2.0

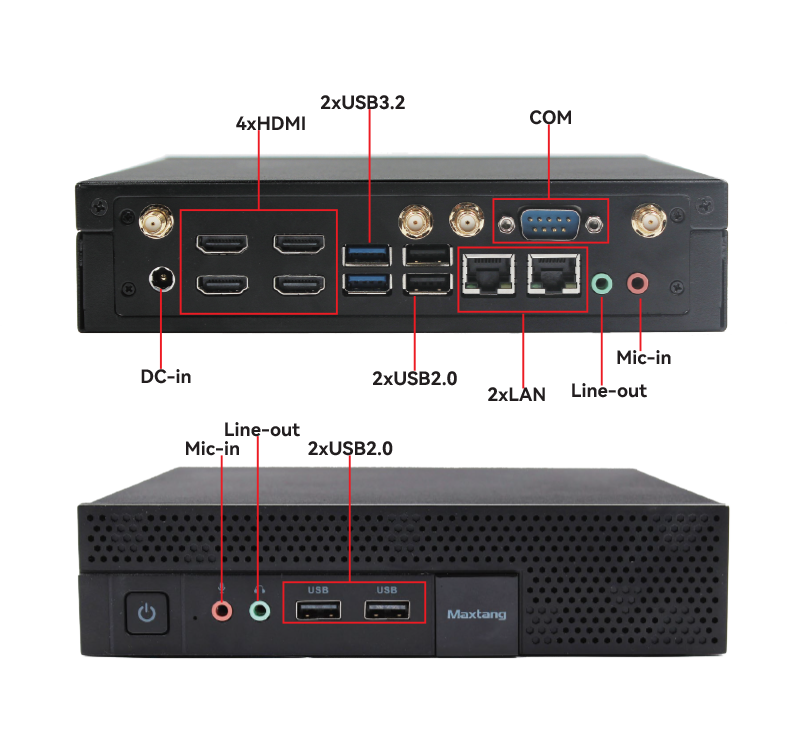

Rich I/O Ports: 4xHDMI®, 1xCOM, 2xUSB3.0, 4xUSB2.0, 2xLAN,2xMic-in, 2xLine-out
Storage: 1xSATA, 1xM.2 SSD NVMe
Expansion: 1x M.2 For WiFi, 1x M.2 for 4G/5G, 1x PCIe2X
Power: 12V
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Datasheet_FXTL-10
