AMD Ryzen™ Embedded R2000 Series — Zen+ Architecture for Graphics-Intensive Workloads

High-Performance Processing

The FXFP510 supports two AMD Ryzen™ Embedded R2000 processor configurations: R2314 (4C/4T, up to 3.5GHz) and R2514 (4C/8T, up to 3.7GHz), both with 4MB L3 cache and a configurable 15W–35W TDP. Built on AMD's Zen+ architecture, the R2000 series delivers a significant performance uplift over the previous R1000 generation — particularly for graphics-intensive and multi-threaded workloads. Integrated AMD Radeon™ graphics support up to four HDMI 2.0 outputs with up to three simultaneous independent 4K displays, making the FXFP510 a capable platform for high-resolution multi-screen content delivery without discrete GPU requirements.

Digital Signage, Industrial Automation & Smart Retail Applications

Wide range of application

The FXFP510 is designed for deployments that demand reliable multi-display output in continuous-operation environments. Four HDMI 2.0 ports drive four screens from a single compact unit — eliminating multi-device complexity in commercial digital signage networks, smart retail video walls, industrial HMI displays, machine vision monitoring stations, and transportation information systems. Its -20°C to 60°C operating temperature range supports deployment in retail back rooms, factory control panels, and outdoor-adjacent kiosk enclosures. Supporting Windows 10/11 and Linux 64-bit, the FXFP510 integrates with leading content management and automation platforms across retail and industrial environments.

Dual LAN, SIM Slot & Full Expansion for System Integration

Rich I/O

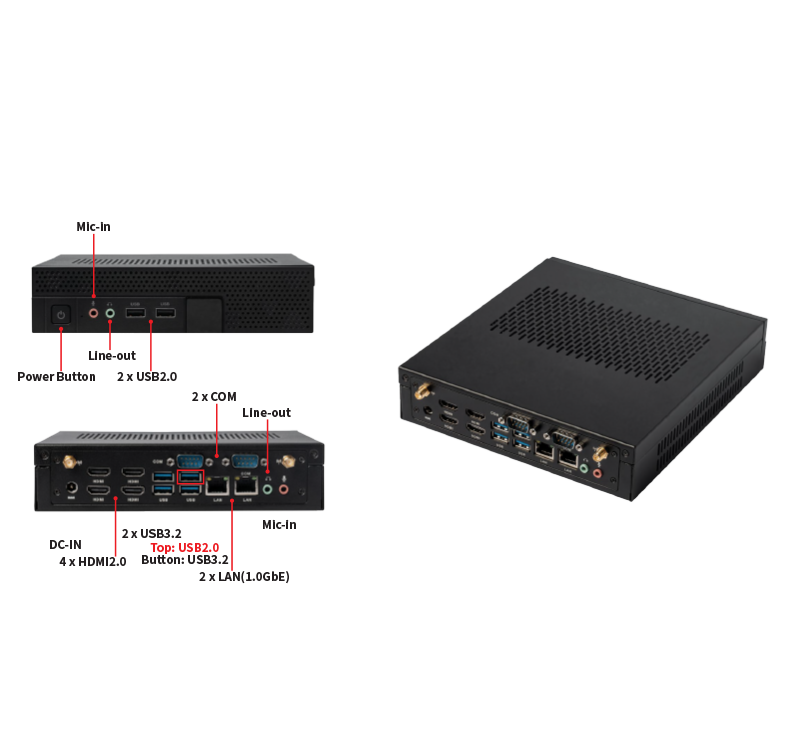

The FXFP510 provides the connectivity flexibility that system integrators require: dual Realtek® RTL8111H Gigabit LAN with Wake-on-LAN support enables centralized remote fleet management, while a built-in SIM slot and M.2 Key B slot for 4G modules add cellular connectivity for remote or mobile deployments. Storage and expansion are handled through PCIe x4, M.2 Key M (2280 NVMe), M.2 Key B (SATA SSD or 4G), M.2 Key E (Wi-Fi/Bluetooth), and SATA 3.0 — covering all integration scenarios without external adapters. Six USB ports (3×USB 3.2 + 3×USB 2.0), 2×COM, optional TPM, and hardware monitoring with watchdog complete a platform built for professional deployment.

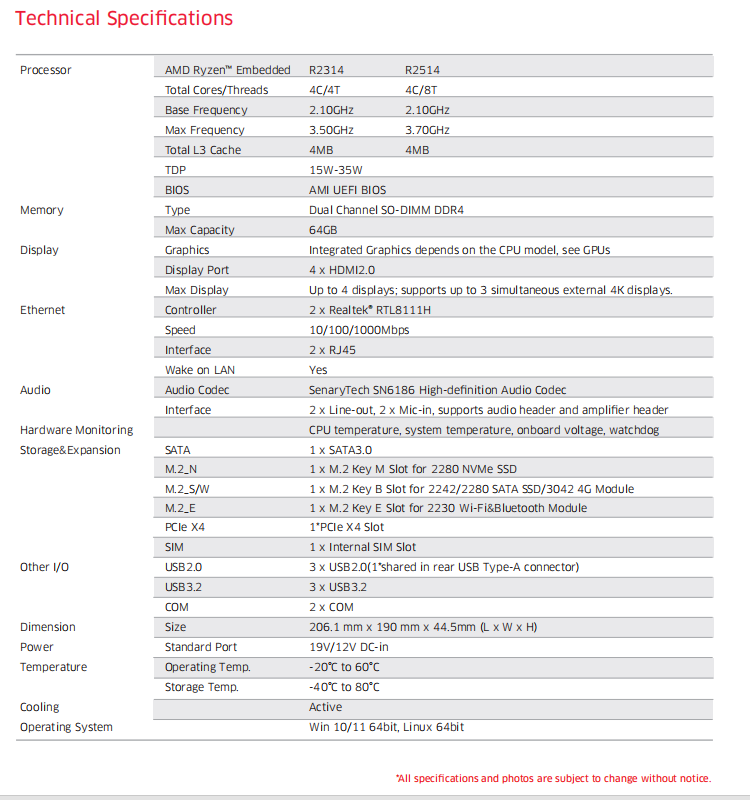

Technical Parameters

Industrial PC FXFP510 Spcification

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

What chassis size does the FXFP510 use?
206.1 × 190 × 44.5mm (L × W × H) — identical footprint to the FXAL-10V2.0 for consistent rack and enclosure planning.
What operating systems are supported?
Windows 10/11 64-bit and Linux 64-bit.
How many simultaneous 4K displays does the FXFP510 support?
Up to 3 simultaneous external 4K displays across its 4×HDMI 2.0 outputs.
Does the FXFP510 support cellular connectivity?
Yes — the M.2 Key B slot supports 4G modules, and a dedicated internal SIM slot is included.
What application scenarios is FXFP510 suitable for?
With AMD Ryzen™ Embedded R2000 processing, 4×HDMI 2.0, dual LAN, SIM slot, and a -20°C to 60°C operating range, the FXFP510 is suited for digital signage, industrial automation, smart retail, machine vision monitoring, and IoT edge deployments requiring 24/7 multi-display reliability.
