FXAL-10V2.0 Industrial PC | Intel Alder Lake/Raptor Lake, 4×HDMI 2.0, Dual LAN

Intel® Alder Lake/Raptor Lake-U/P Processors — Scalable Performance Across

Intel® Alder Lake/Raptor Lake-U/P Processor

The FXAL-10V2.0 supports three Intel® processor configurations to match workload requirements: Core™ i3-1215U (6C/8T, 15W TDP, up to 4.4GHz), Core™ i7-1255U (10C/12T, 15W TDP, up to 4.7GHz), and Core™ i7-1360P (12C/16T, 28W TDP, up to 5.0GHz). All three feature Intel® Iris® Xe or UHD integrated graphics with full support for four independent HDMI 2.0 outputs at up to 4K resolution. Combined with dual-channel DDR4 up to 64GB and PCIe Gen 4 x4 expansion, the FXAL-10V2.0 delivers the processing headroom required for demanding multi-display content rendering, real-time media decoding, and concurrent application workloads.

Commercial Digital Signage, Video Walls &Amp; Multi-Display AV Applications

Wide Range of Applications

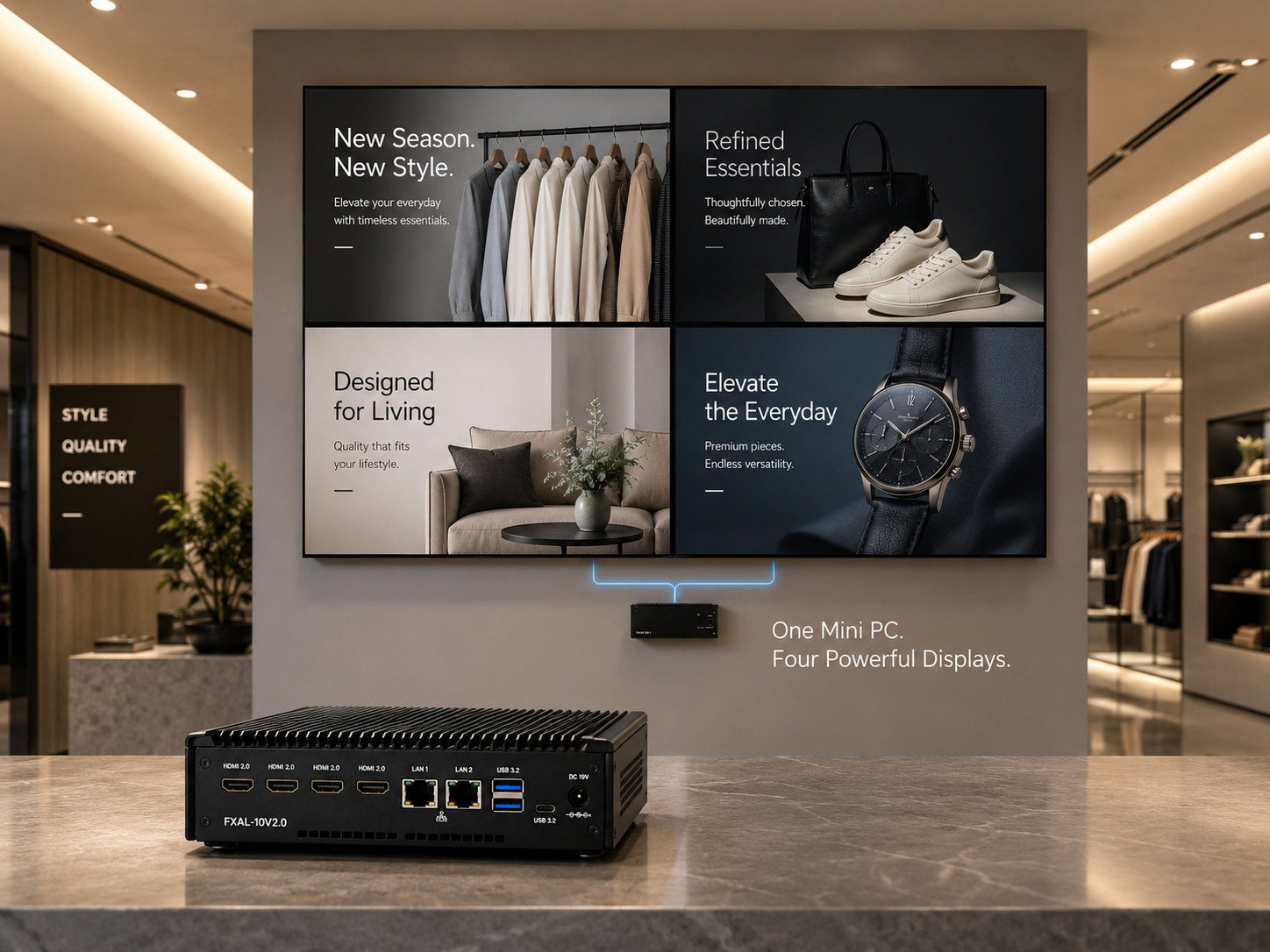

The FXAL-10V2.0 is built for deployments where simultaneous, independent multi-screen output is a hard requirement. Four HDMI 2.0 ports drive four displays from a single compact unit — eliminating the cost and complexity of multi-device setups in commercial digital signage networks, retail video walls, hospitality information displays, transportation hubs, and corporate AV environments. Its -20°C to 60°C operating temperature range extends deployments beyond climate-controlled spaces into retail back rooms, industrial control rooms, and outdoor-adjacent kiosk enclosures. Supporting Windows 10/11 and Linux 64-bit, the FXAL-10V2.0 integrates cleanly with leading content management systems and AV control platforms used across the retail and industrial sectors.

Dual LAN, PCIe Gen 4 & Full Expansion for Professional Integration

Comprehensive Connectivity

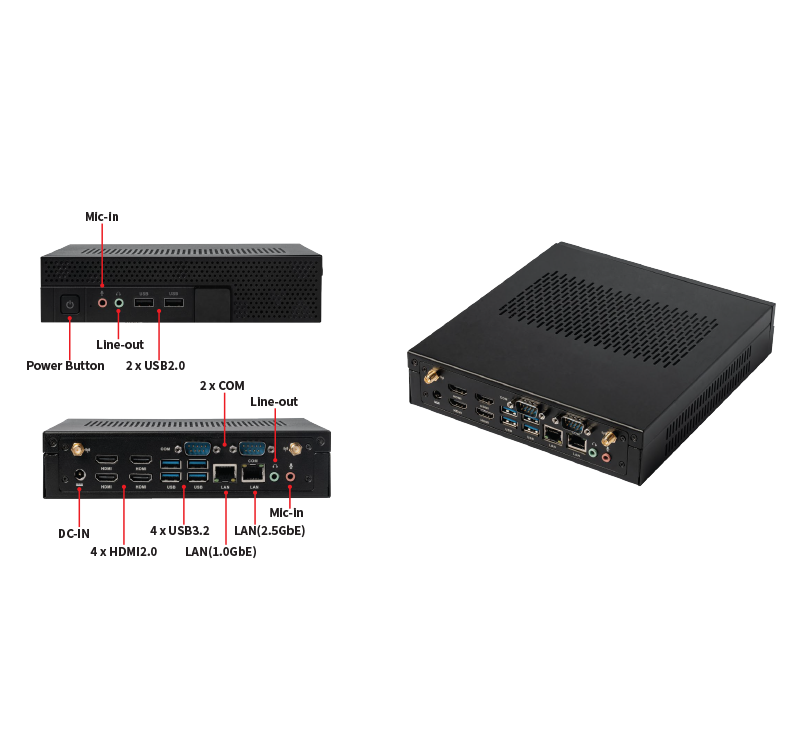

The FXAL-10V2.0 delivers the connectivity depth that system integrators require without add-on adapters. Dual LAN — Intel® i226 at 2.5GbE and Intel® i219 at 1GbE — with Wake-on-LAN support enables centralized remote management across large deployed fleets. A dedicated PCIe Gen 4 x4 slot, three M.2 slots (Key M for NVMe, Key B for SATA SSD or 4G, Key E for Wi-Fi/Bluetooth with CNVi support), and SATA 3.0 provide flexible storage and expansion options for diverse integration scenarios. Six USB ports (4×USB 3.2 + 2×USB 2.0), 2×COM, and dual audio in/out round out a platform designed to deploy ready.

Technical Parameters

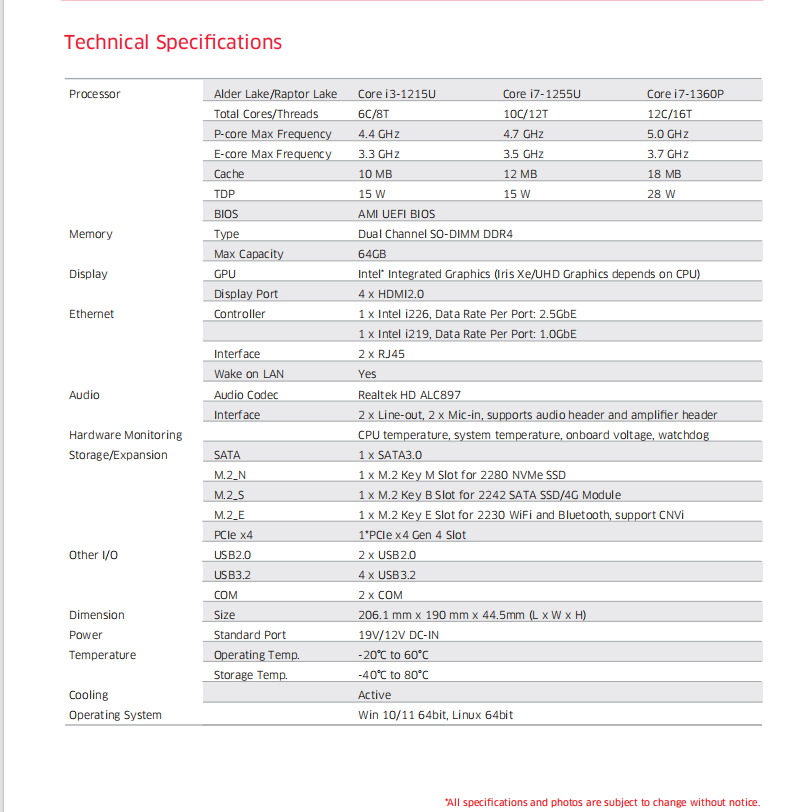

Specifications

FAQ

What chassis size does the FXAL-10V2.0 use?

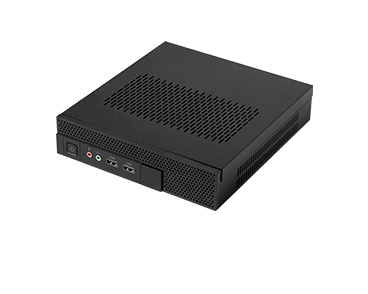

The FXAL-10V2.0 uses a compact chassis measuring 206.1 × 190 × 44.5mm (L × W × H), designed for desktop and rack-adjacent deployments.
What operating systems are supported?
Windows 10/11 64-bit and Linux 64-bit.
What expansion interfaces are available?
1× PCIe x4 Gen 4 slot; 1× M.2 Key M (2280 NVMe SSD); 1× M.2 Key B (2242 SATA SSD or 4G module); 1× M.2 Key E (2230 Wi-Fi/Bluetooth, CNVi support); 1× SATA 3.0.
What is the operating temperature range?
-20°C to 60°C operating, -40°C to 80°C storage.
What application scenarios is FXAL-10V2.0 suitable for?
With four independent HDMI 2.0 outputs, dual LAN, PCIe Gen 4 expansion, and scalable Intel® Core™ processors, the FXAL-10V2.0 is purpose-built for commercial digital signage, retail video walls, corporate AV, hospitality displays, transportation information systems, and multi-screen content delivery platforms requiring 24/7 reliability.
