Intel® Bay Trail Processors

The Intel^® Atom^® processor Z3700 series provide end-users with powerful graphics performance, built-in security and OS flexibility. This system-on-a-chip (SoC) is based on the Silvermont microarchitecture with Intel’s 22 nm process technology. The 64-bit quad-core SOC with Intel^® HD graphics provides a low-power solution with more compute and graphics performance than the previous generation platform and features Intel^® Burst Technology and Intel^® Wireless Display.

Fanless, Ventless,
Dust-Resistant

The AXBYT60 provides a powerful performance with efficiency
and reliability combined. Its fully made of aluminum enclosure
with fanless design, intend to protect internal components from
dust and debris in harsh industrial environment.

Comprehensive I/O Interface

Features 2xRJ45 10/100/1000Mbps, ethernet controller； SATA2.0, mSATA, for storage, mini PCIe for Wi-Fi, HDMI^® and VGA for display. Other ports includes1x USB3.2, 5xUSB2.0, 6x COM and standard 12V DC-in, carters most market’s requirements.

Multiple Display

Integrated Intel^® HD Graphic card, display via VGA, HDMI^® ports, and 1xLVDS pin on board, provide strong support to digital display equipment.

High-Speed Performance

Its low power consumption perfectly balances efficiency and performance, wrapped in an Aluminum enclosure with a fanless design that protects the system against a harsh dusty environment.

Product description

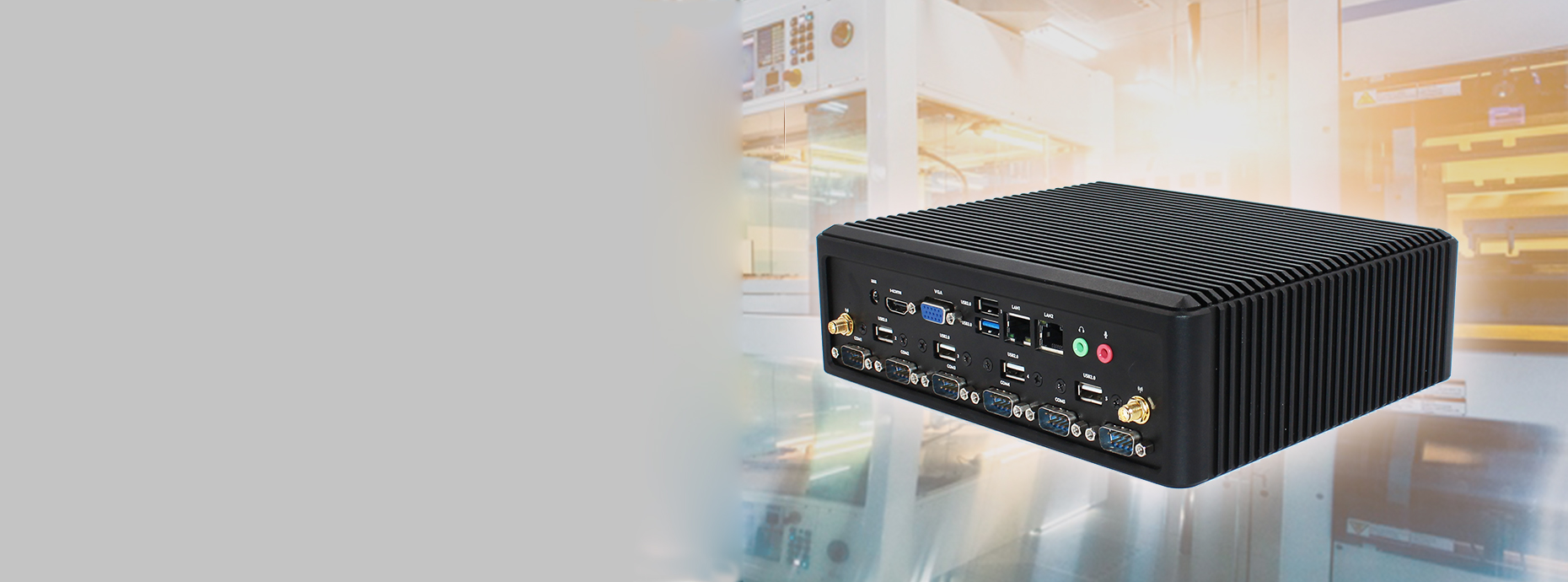

The AXBYT-60 is an embedded fanless industrial PC based on Intel^® Bay Trail processors. It supports 1xSO-DIMM DDR3L up to 8GB with comprehensive I/O interfaces. Dual displays via HDMI^®, VGA with Intel^® Integrated Graphic. Features 2xLAN, 6xCOM, 1xUSB3.2, and 5xUSB2.0 for ease integration, caters to most market requirements.

The AXBYT-60 is fanless and ventless, designed to be an ideal solution for industrial uses. Its ruggedness delivers reliable operation in poor ventilation, withstand harsh environments, a long lifecycle for sustainable development. It has a low power consumption, great for energy saving, retains the robust design of all Maxtang product lines with cost advantages. Provides a great user experience, increases productivity with stability and reliability.

Features

Intel^® Bay Trail Celeron^® J1900/J1800 Processor
Support Single Channel SO-DIMM DDR3L up to 8GB
Full HD 1080P Playback, Display via VGA, HDMI^®
Rich I/O ports: 1 x USB3.2, 5 x USB2.0, 2 x LAN, 6xCOM
mSATA, SATA2.0 for Storage, mini-PCIe for WiFi/4G
Fanless Design with Aluminum Enclosure
Power:12V DC-in, Low Power Consumption

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Technical Parameters
