Intel^® Kaby Lake-U Processor

The 7th Gen Intel^® Kaby Lake-U processors are based on 14-nanometer manufacturing process technology. As compared to the previous generation they offer a greater performance. They feature thermal design power (TDP) options of 15W with the flexibility of 25W cTDP up and 8.5W cTDP down, for an exceptional balance of power and performance; ideal for small, energy-efficient designs including digital signage, point-of-sale terminals, and medical tablets.

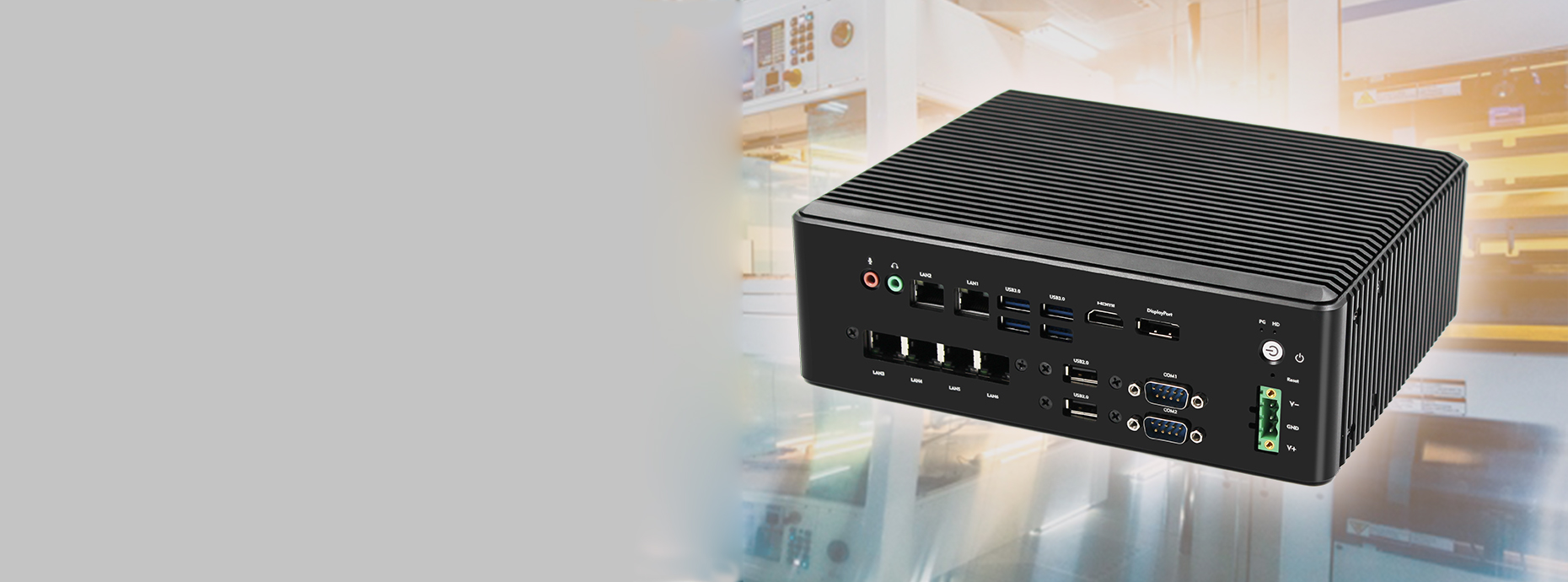

Fanless, Ventless,
Dust-Resistant

The AXKL-10 provides a powerful performance with efficiency
and reliability combined. Its fully made of aluminum enclosure
with fanless design, intend to protect internal components from
dust and debris in harsh industrial environment.

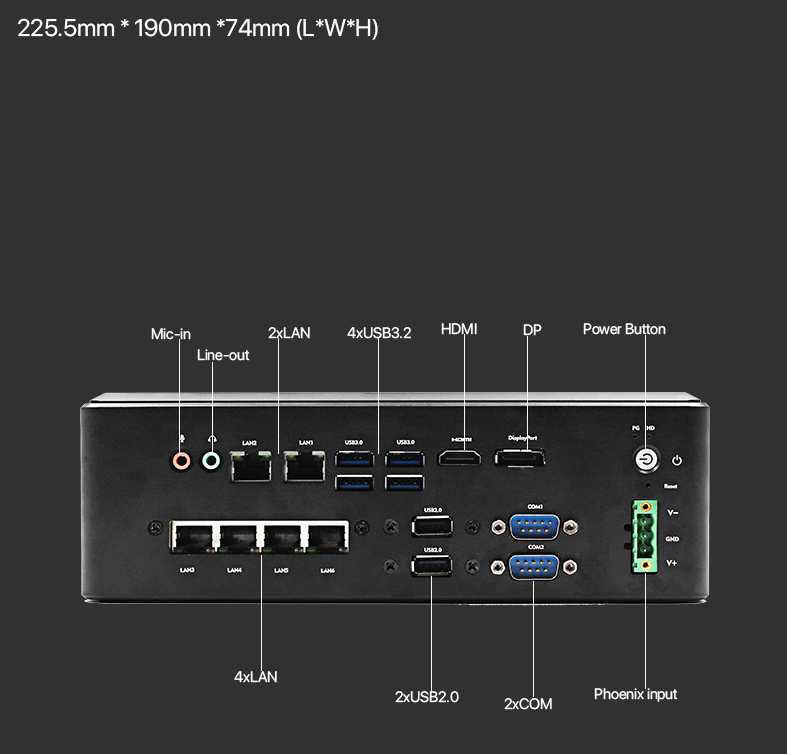

Comprehensive I/O Interface

Features 6xRJ45 10/100/1000Mbps, ethernet controller； SATA3.0, M.2 for storage, additional M.2 for Wi-Fi, HDMI and DP for display. Other ports includes 4x USB3.2, 2xUSB2.0, 2xCOM and Phoenix input, carters most market’s requirements.

10/100/1000 Mbps

Features 6xRJ45 interface LAN ports with a high speed at 10/100/1000 Mbps, offers a much greater one-to-one connection speed, provides you increased work efficiency, better data transfer quality, and strong security.

High-Speed Performance

Its low power consumption perfectly balances efficiency and performance, wrapped in an Aluminum enclosure with a fanless design that protects the system against a harsh dusty environment.

Product description

The AXKL-10 is an embedded fanless industrial PC based on Intel^® Kaby Lake-U processors. It supports 2xSO-DIMM DDR4 up to 32GB, SATA3.0, M.2 for storage with comprehensive I/O interfaces. Dual displays via HDMI, DP with Intel^® HD Graphics, addition M.2 for WiFi and phoenix input optional. Features 6xLAN, 2xCOM, 4xUSB3.2, and 2xUSB2.0 for ease integration, caters to most market requirements.

The AXKL-10 is fanless and ventless, designed to be an ideal solution for industrial uses. Its ruggedness delivers reliable operation in poor ventilation, withstand harsh environments, a long lifecycle for sustainable development. It has a low power consumption, great for energy saving, retains the robust design of all Maxtang product lines with cost advantages. Provides a great user experience, increases productivity with stability and reliability.

Features

Intel^® Kabylake-U/Skylake-U Processor
Support Dual Channel SO-DIMM DDR4 up to 32GB
Intel^® HD Graphic, Display via DP, HDMI^®
Rich I/O ports: 4 x USB3.2, 2 x USB2.0, 6 x LAN, 2xCOM
M.2, SATA3.0 for Storage, additional 2xM.2 for WiFi/4G
Fanless Design with Aluminum Enclosure
Power: Phoenix input/12V DC-in optional

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Technical Parameters
