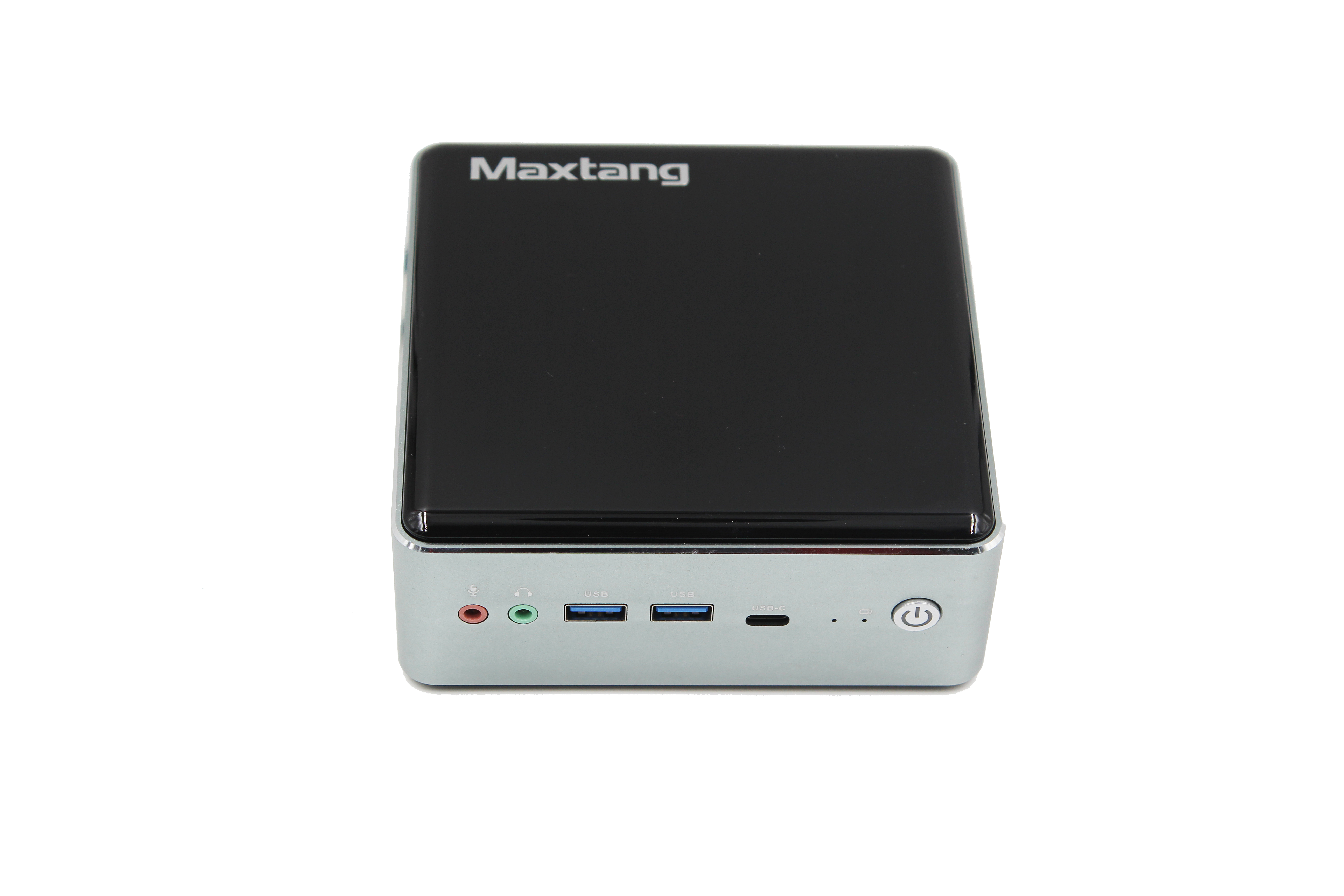

The Maxtang MTN-FP650 is AMD® Ryzen™ 5000 Series and 4000Series mobile processors based compact mini-PC. It can provide you with excellent performance, greater space-saving. Supports dual-channel SO-DIMM DDR4 up to 64GB, dual display via Radeon™ Vega Graphics through 2xHDMI®2.0. Features with one 10/100/1000 Mbps ethernet controller, SATA3.0 and M.2 for storage, additional M.2 for Wi-Fi & Bluetooth. A rich I/O interface includes 2x USB3.2, 2xUSB2.0, 1xLAN, 1x USB-C, Mic-in, and Line-out with standard 12V/19V DC-in caters to most market requirements.
The MTN-FP650 is a compact yet powerful mini PC with low power consumption, operating at just 15W TDP. Despite its small size, it delivers strong performance for smooth multitasking, immersive visuals, and reliable productivity. Designed for versatility, it supports a wide range of applications—from office work, retail, and digital signage to education and healthcare. Its space-saving design makes it ideal for environments where traditional PCs cannot fit, offering a flexible and dependable solution for both work and entertainment.

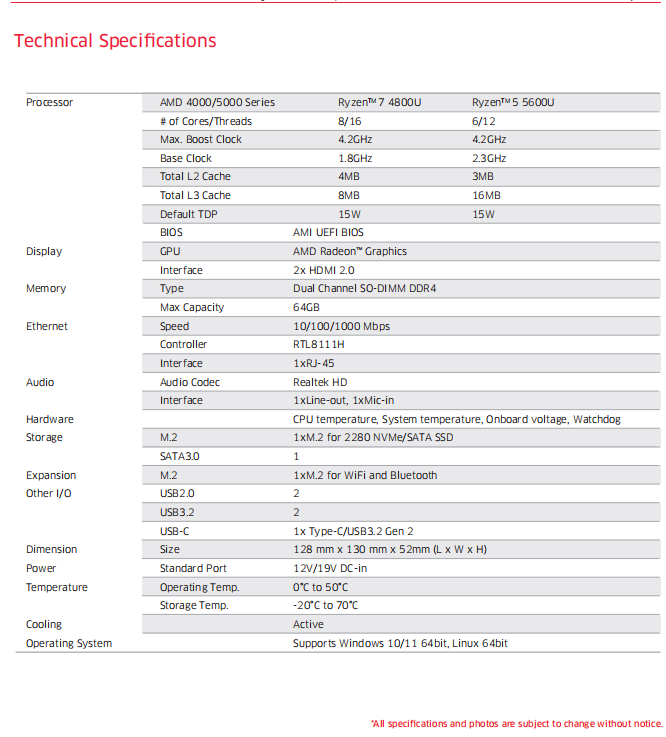

CPU: AMD Ryzen™ Mobile Processors 4000/5000 Series
Memory: Dual Channel DDR4 for Memory up to 64GB
Display: AMD Radeon™ Graphics, Displays via 2xHDMI2.0
I/O Ports: 2xUSB3.2, 2xUSB2.0, 1xLAN, USB-C Gen2, Line-out, Mic-in
Expansion: M.2 for WiFi and Bluetooth
Storage: SATA3.0, M.2 for NVMe/SATA SSD
Power: 12V/19V DC-in
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
User Manual_MTN-FP650
