The BXTL-10 is a compact, fanless embedded industrial PC powered by 11th Gen Intel® Core™ i7/i5/i3 and Celeron® processors. Featuring Intel® Iris® Xe or UHD Graphics with 4× HDMI® 2.0 outputs, it delivers immersive multi-display performance up to 4K resolution. The system supports up to 64GB dual-channel DDR4 memory, dual Gigabit Ethernet ports, and flexible storage via M.2 NVMe and SATA3.0. Its comprehensive I/O includes 4× USB 2.0, 2× USB 3.2, Mic-in, Line-out, and standard DC-in, meeting diverse connectivity requirements.
Engineered for performance-demanding applications, the BXTL-10 combines rugged fanless design with wide temperature tolerance (-20°C to 60°C) for reliable 24/7 operation. Ideal for electronic gaming machines, digital signage, smart retail, and industrial control, it maintains Maxtang’s robust design philosophy at a cost-effective price point, ensuring enhanced productivity, stability, and long-term reliability.

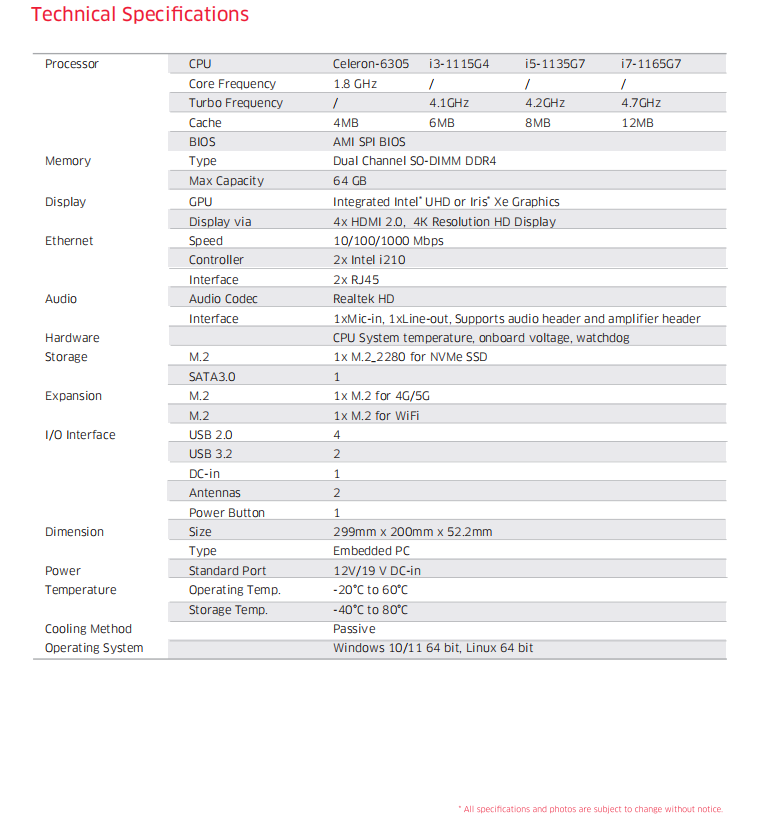

CPU: Intel® Tiger Lake-U Processors
Memory: Dual channel SO-DIMM DDR4 Up to 64 GB
Display: Intel® Iris® Xe/UHD Graphics via HDMI®2.0
Storage: 1xSATA, 1xM.2 SSD NVMe
Expansion: 1x M.2 For WiFi, 1x M.2 for 4G/5G
Power: 12V/19V

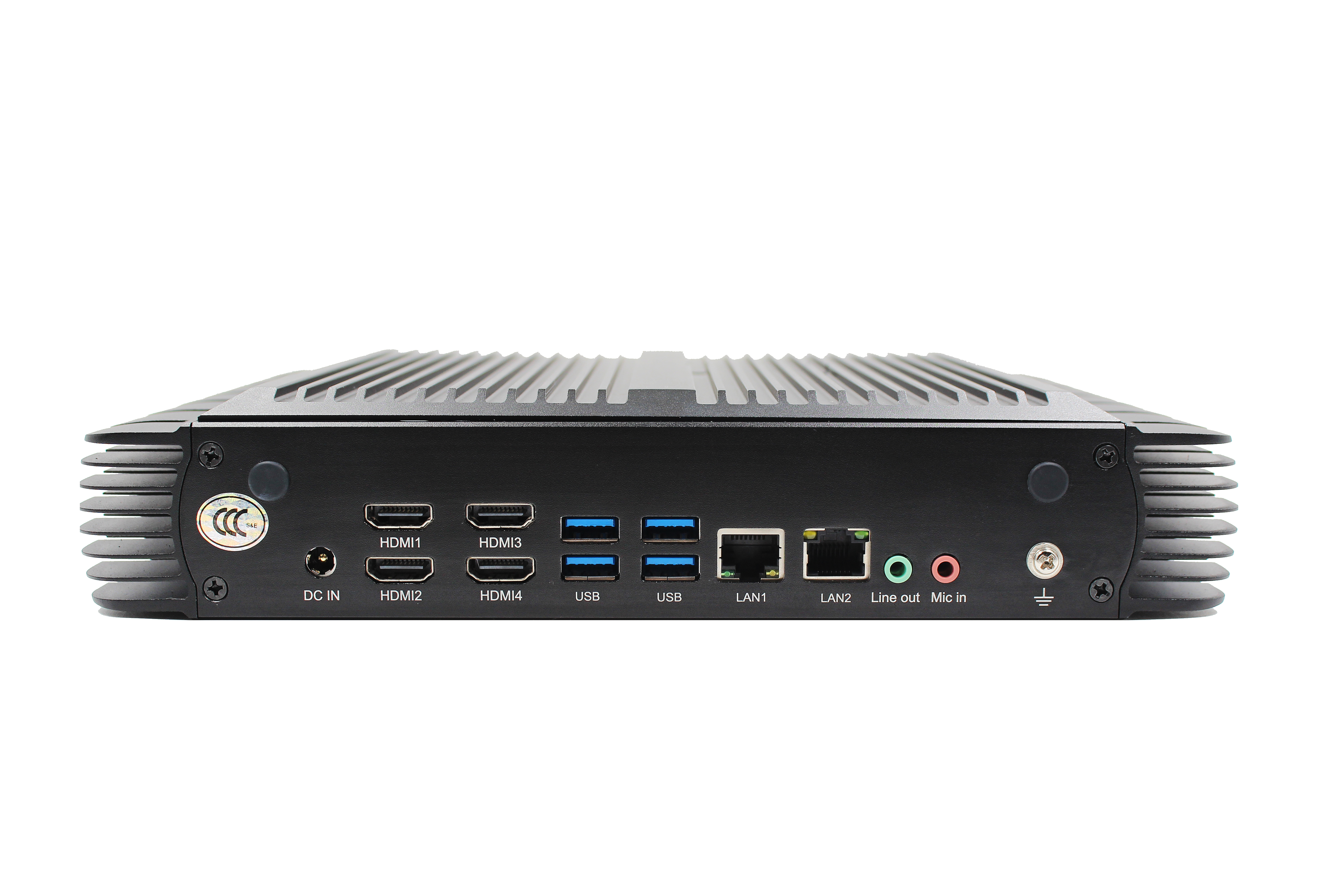

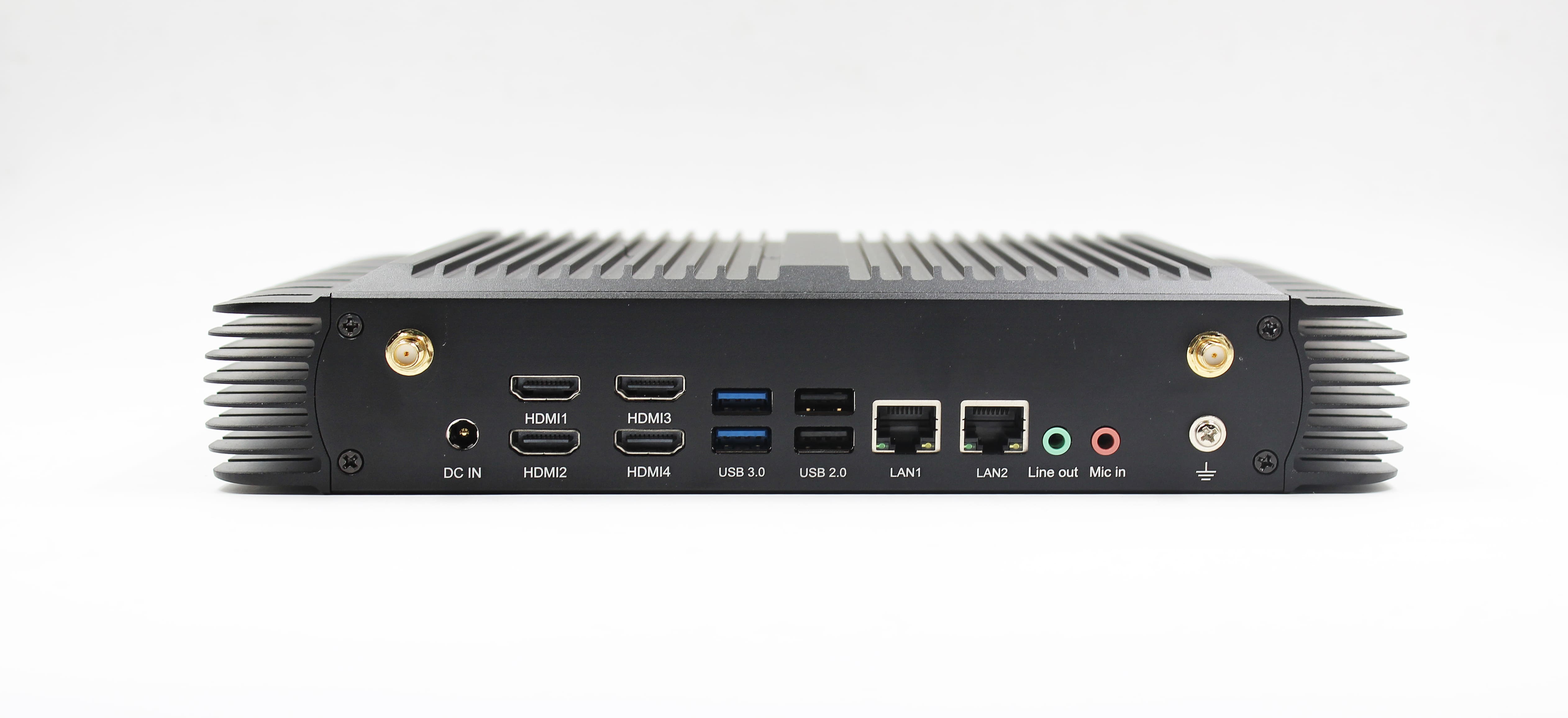

Equipped with 4× HDMI® 2.0 outputs, the BXTL-10 delivers
seamless multi-monitor support beyond the limits of a
single screen. It is ideal for digital signage, electronic gaming
machines, industrial automation dashboards, smart retail
advertising, and control room monitoring, enhancing both
visual performance and workflow efficiency across demanding
applications.
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
