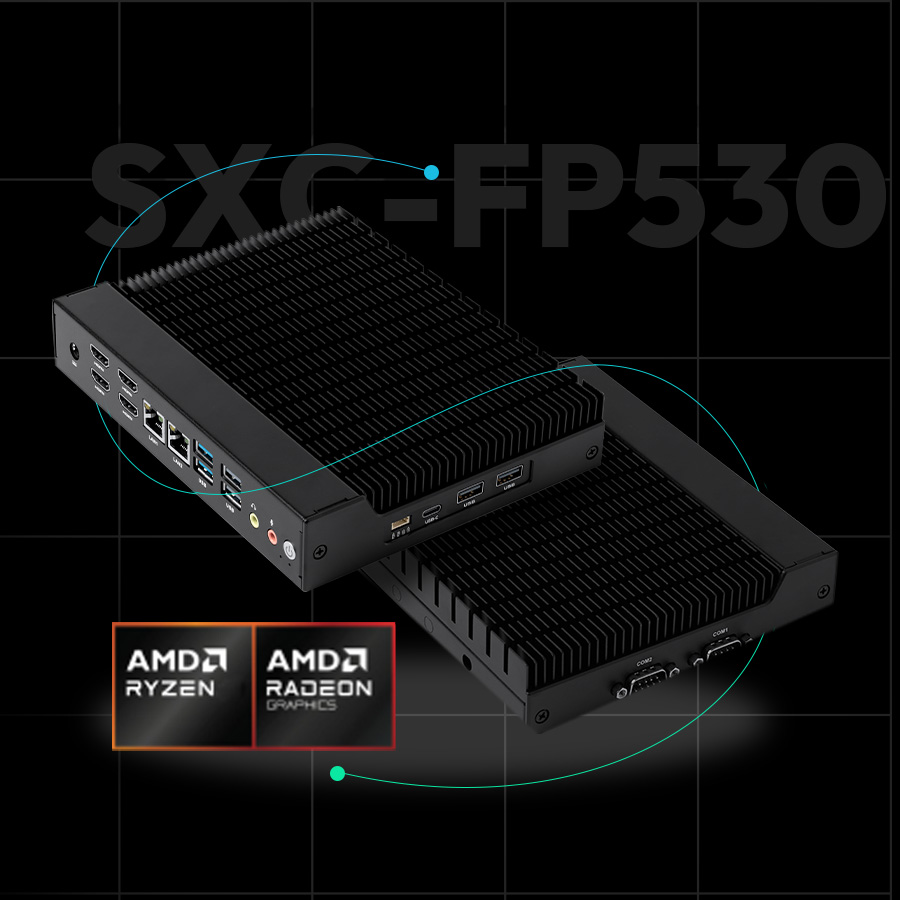

SXC-FP530 Fanless Mini PC — AMD Ryzen™ R2314 for Digital Signage & Industrial Automation

New Product Launch: SXC-FP530 — AMD- Ryzen™ Embedded R2314 Powered Compact Fanless Embedded PC

The MAXTANG SXC-FP530 is a newly launched mini PC built on the AMD Ryzen™ Embedded R2314 processor, offering exceptional performance at a better price point. With integrated Radeon™ Graphics and support for four displays, it is the ideal solution for digital signage, industrial automation, and edge deployments where cost efficiency and reliability matter.

AMD Ryzen™ Embedded R2314 — Price-Performance Advantage

Delivering powerful computing in a cost-effective package:

AMD Ryzen™ Embedded R2314: 4 cores / 4 threads, up to 3.5GHz, 15W(FANLESS) or 35W(FAN) TDP
Excellent performance per dollar for signage and industrial systems
Integrated Radeon™ Graphics for smooth media and visualization
Dual-channel DDR4 SO-DIMM, up to 64GB memory
M.2 Key M (2280) for NVMe/SATA SSD + M.2 Key B (2242/3042) for SATA SSD/4G

AMD-Ryzen-Embedded-R2314-from-Maxtang-factory-level-performance-tuning-vs-Intel-Core-comparison：

AMD-Ryzen-Embedded-R2314-from-Maxtang-factory-level-performance-tuning-vs-Intel-Core-comparison.png

Multi-Display Capability — Four HDMI Outputs

Designed for professional signage and visualization:

4x HDMI 2.0b ports, supporting 1080P (four displays), 4K@60Hz (single display)
Ideal for video walls, synchronized signage, and command centers
Stable HDMI Hot-Plug Lock (HPD LOCK) for reliable switching
Support RTC set up, independently for each day of the week

Industrial-Grade I/O & Expansion

Versatile connectivity for integration into modern and legacy systems:

2x LAN ports: Realtek RTL8111H Gigabit Ethernet
2x COM ports: RS232 default (RS485 optional through hardware changes)
7x USB ports: 4x USB 3.2, 2x USB 2.0, 1x USB-C
Expansion with M.2_E slot for Wi-Fi/BT, plus Nano SIM slot for 4G/LTE

Fanless Rugged Design Choice for Harsh Environments

Built for silent, reliable operation in demanding conditions:

Fanless passive cooling with metal chassis
Compact size: 190 × 150 × 35 mm
Operating temperature: -20°C to 60°C
Flexible power options: 12V/19V DC-IN or 9–35V Phoenix connector
Onboard TPM security for protected deployments

Why the SXC-FP530 is Ideal for Digital Signage, Industrial Automation, and Edge Deployments

For applications like digital signage, industrial automation, and edge computing, performance and reliability are mission-critical. The SXC-FP530 was engineered with these exact requirements in mind:

Digital Signage & Video Walls

The SXC-FP530 provides the performance and display flexibility required in modern signage systems:

Drive up to four independent displays via HDMI 2.0b ports
4K@60Hz playback ensures crisp, smooth visuals for advertising and real-time information boards
Fanless operation guarantees silent and reliable 24/7 deployment in public spaces

Industrial Automation & Process Control

In factory and automation environments, ruggedness and connectivity are essential. The SXC-FP530 delivers:

Wide operating temperature range (-20°C ~ 60°C) to handle harsh industrial conditions
Comprehensive connectivity, including RS232/RS485, USB 3.2, and dual LAN for legacy and modern integration
Fanless design reduces dust ingress and minimizes maintenance downtime

Edge Computing Deployments

Compact yet powerful, the SXC-FP530 is purpose-built for demanding edge workloads:

AMD Ryzen™ Embedded R2314 with Radeon™ Graphics handles AI inferencing, data visualization, and media playback
Flexible storage and expansion with dual M.2 slots and optional 4G/LTE connectivity for remote operations
Onboard TPM and rugged chassis design ensure secure and dependable performance at the edge

Wide Range of Applications：

Now Open for Sample Purchase

The MAXTANG SXC-FP530 is now available for sample orders to qualified partners and customers. Start testing today and unlock AMD-powered, multi-display performance at the best value.

Experience the new SXC-FP530 — Affordable Power. Rugged Reliability. Multi-Display Performance.

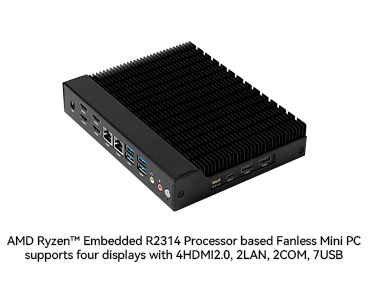

MAXTANG SXC-FP530 compact fanless PC powered by AMD Ryzen Embedded R2314

MAXTANG SXC-FP530 compact fanless PC powered by AMD Ryzen Embedded R2314

Request Sample → Download Datasheet →

Introducing the SXC-FP530: Compact, Reliable, and Powerful Compact Fanless Embedded PC
