Intel Arrow Lake ATX Motherboard with Z890 Chipset - ARD-75

ARD-75
Product Description

High-Performance ATX Motherboard Built for Industrial and Edge AI Workloads

The ARD-75 is an ATX industrial motherboard powered by the Intel® Arrow Lake Core™ Ultra processor and Z890 chipset, featuring a built-in Intel® AI Boost NPU for on-board edge AI inference — no discrete accelerator card required. It supports up to 192GB DDR5 across four UDIMM slots, two PCIe 5.0 x8 slots, six COM ports with RS-232/RS-485 support, dual Intel Gigabit Ethernet, and a hardware watchdog timer. With a 0–60°C operating range and support for Windows 10/11 and Linux, the ARD-75 is a ready-to-deploy platform for industrial automation, machine vision, and edge AI applications.

Features

    Why Engineers Choose the ARD-75

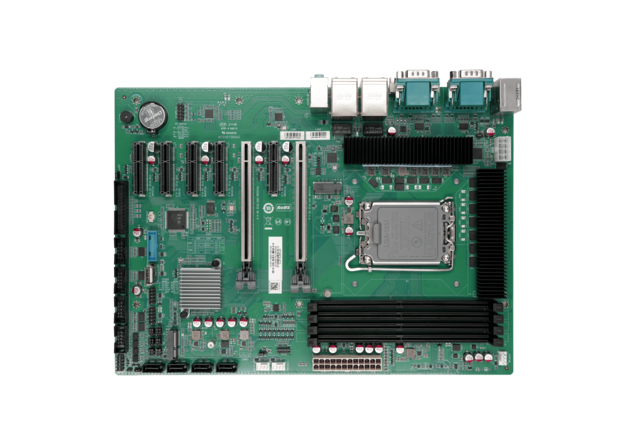

    ARD-75 Front Picture

    • CPU: Intel® Arrow Lake Desktop Series Processor

    • NPU: lntel® AI Boost

    • Memory: 4x UDIMM DDR5 Up to 192GB

    • Display: Integrated Graphics display via HDMI+DVI-I(VGA)

    • Ethernet Controllers: 1xIntel i219+1xIntel i210

    • Storage: 1xM.2 for NVMe/SATA SSD, 4xSATA

    • Expansion: M.2 for Wi-Fi, 1*PCIe1X, 2*PCIe8X, 4*PCIe4X

    • Power: ATX_24PIN + 2*8PIN

On-Board AI Acceleration with Intel® AI Boost NPU

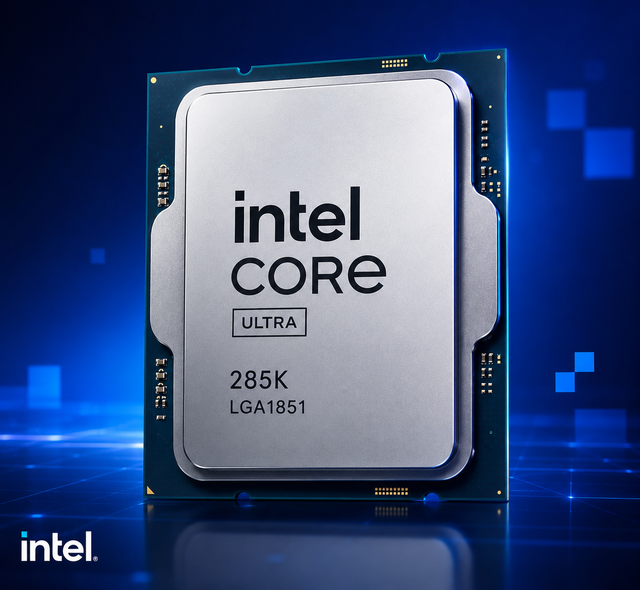

Intel AI Boost NPU + Arrow Lake Core Ultra
The ARD-75 is built on the Intel® Arrow Lake Desktop Series Core™ Ultra processor, which integrates Intel® AI Boost — a dedicated Neural Processing Unit (NPU) that handles AI inference workloads directly on the board. Unlike solutions that rely on discrete AI accelerator cards, the ARD-75 delivers real-time object detection, predictive maintenance, and intelligent edge processing without adding power draw, cost, or expansion slot overhead. For engineers deploying AI-driven industrial systems, this means a leaner, lower-latency architecture from day one.

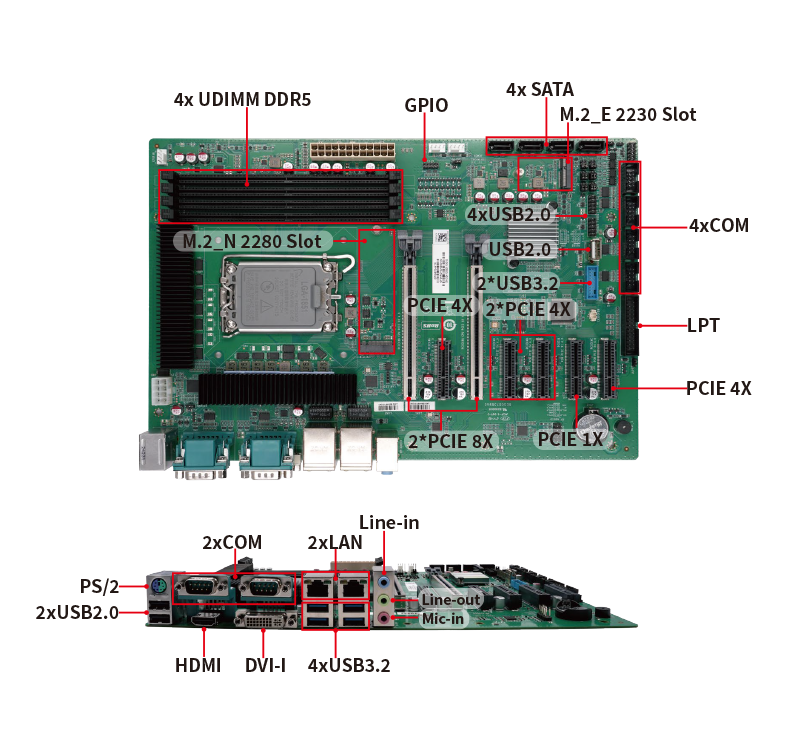

Industrial I/O Designed for Real-World Integration

Industrial-Grade I/O and Connectivity
The ARD-75 ships with the I/O profile that industrial system designers actually need: six COM ports (RS-232 default, RS-485/RS-422 configurable via jumper on COM5/COM6), dual Intel Gigabit Ethernet (i219 + i210), 8-bit GPIO, a hardware watchdog timer, 7× USB 2.0, 6× USB 3.2, HDMI 2.0, DVI-I (VGA), PS/2, and a legacy LPT port. Whether you are connecting serial sensors, PLCs, barcode readers, or legacy peripherals alongside modern high-speed devices, the ARD-75 eliminates the need for add-in converter cards and keeps your system architecture clean and reliable.

192GB DDR5 and PCIe 5.0 — Expandability Without Compromise

Maximum Expandability with PCIe 5.0 and DDR5
Demanding workloads need headroom. The ARD-75 supports up to 192GB of DDR5 memory across four UDIMM slots — delivering the capacity required for memory-intensive applications such as machine vision pipelines, multi-stream video analytics, and large AI model inference. On the expansion side, two PCIe 5.0 x8 slots provide the raw bandwidth needed for high-performance GPU cards and FPGA accelerators, while four PCIe 4.0 x4 slots and one PCIe 4.0 x1 slot add further flexibility for networking, storage, and I/O expansion cards. Combined with an M.2 2280 slot for NVMe/SATA SSD and four SATA 3.0 ports, the ARD-75 gives integrators a future-ready platform that scales with application requirements.
Technical Parameters

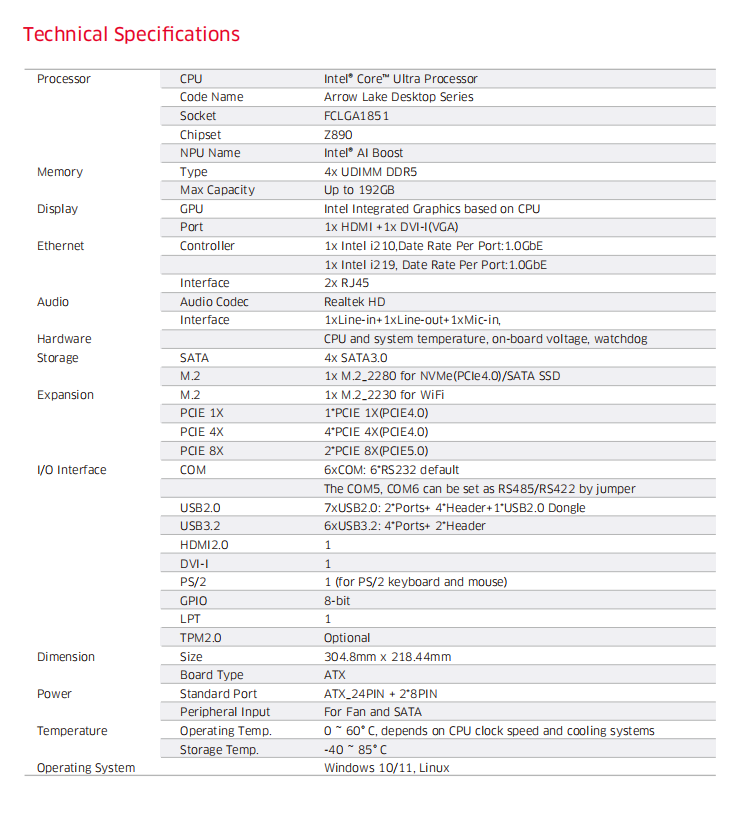

Technical Specifications


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processor does the ARD-75 support?


    The ARD-75 supports the Intel® Core™ Ultra processor (Arrow Lake Desktop Series, socket FCLGA1851) with the Intel® Z890 chipset.

  • Does the ARD-75 support AI workloads?


    Yes. The ARD-75 includes Intel® AI Boost, a built-in NPU that accelerates AI inference directly on the board without requiring a discrete AI accelerator card.

  • How much memory does the ARD-75 support?


    The ARD-75 supports up to 192GB of DDR5 memory across four UDIMM slots.

  • How many COM ports does the ARD-75 have?


    The ARD-75 has 6 COM ports. All six default to RS-232. COM5 and COM6 can be switched to RS-485 or RS-422 via jumper.

  • What PCIe slots does the ARD-75 offer?


    The ARD-75 provides 2× PCIe 5.0 x8, 4× PCIe 4.0 x4, and 1× PCIe 4.0 x1 — seven slots in total for GPU, FPGA, networking, and I/O expansion cards.

  • What storage options are available?


    The ARD-75 includes one M.2 2280 slot for NVMe (PCIe 4.0) or SATA SSD, plus four SATA 3.0 ports for additional drives.

  • What is the operating temperature range?


    The ARD-75 operates from 0°C to 60°C, with a storage temperature range of -40°C to 85°C.

  • What operating systems does the ARD-75 support?


    The ARD-75 supports Windows 10, Windows 11, and Linux out of the box.

  • Does the ARD-75 support dual displays?


    Yes. The ARD-75 supports dual display output via one HDMI 2.0 and one DVI-I (VGA) port, both driven by Intel Integrated Graphics.

  • What is the model name for ordering?


    The order model name is DTZ890-ATX. For customized configurations, please contact your regional Maxtang sales representative.
Downloads
Datasheet_ARD-75
