Intel® Celeron® Processor J6412

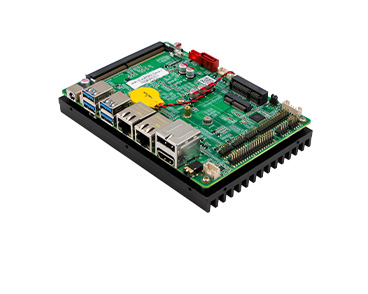

The EHL-35 is a 3.5" disk-size single-board based on the Intel Celeron J6412 processor, 4Cores 4Threads, 1.5M Cache, and up to 2.60GHz for burst frequency. Powered by Intel, the EHL-35 provides you excellent performance with long life expectancies.


Wide Applications
The board provides faster connectivity with overall improved performance
for various applications like industrial automation, network security,
medical equipment, surveillance, kiosk, smart transportation, etc.


Medical
Transportation
IoT Solutions
6COM 8USB 2LAN
The board has 6xCOM, 8xUSB,2xLAN in total, a set of GPIO, CTIA audio jack, and 12V DC-in, which caters to most market requirements.


Product description

The Maxtang EHL-35 is a 3.5" disk-size single-board based on the Intel® Celeron® J6412 processor, 4Cores 4Threads, 1.5M Cache, and up to 2.60GHz for burst frequency. It supports 1xSO-DIMM DDR4 max to 32 GB, and displays via Intel® UHD Graphics through HDMI®, DP, and eDP. Features two 2.5GbE Ethernet controllers, M.2 for Wi-Fi, SATA, and mSATA for storage. A rich input/output interface includes 6xCOM, 8xUSB, GPIO, and CTIA audio jack with standard 12V DC-in, which caters to most market requirements.


The board provides powerful performance with low power consumption, ideal for various industrial applications. It retains a robust design at a new cost-effective price point and is great for energy saving. The sustainable features with a long-lasting life cycle bring increased productivity with stable, reliable real-time production.


Features
    •   CPU: Intel® Celeron® Processor J6412

    •   Memory: Single Channel SO-DIMM DDR4 up to 32GB

    •   Display: Integrated Graphics display via HDMI®, DP, eDP/LVDs

    •   Ethernet: 10/100/1000 Mbps, 2xRJ45, Intel i225/226

    •   Storage: SATA3.0, mSATA

    •   Expansion: 1xM.2 for WiFi

    •   Power: 12V DC input



Technical Parameters




*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.
