Intel^® Elkhart Lake J6412 Processor

Powered by Intel^® Elkhart Lake Celeron^® J6412 processor, the NX6412-4L provides you excellent performance with long life expectancies. The processor has 4cores 4threads, 1.5MB L2 Cache, up to 2.60GHz with a 10W TDP rate. It has a 1.7x improvement in single-thread performance and 1.5x improvement in multi-thread performance generation over generation, 2x performance improvement in graphics over the previous generation

Compact, Fanless,
Robust

The NX6412-4L undergo rigorous noise, vibration, drop,
and thermal shock tests to ensure they meet exacting
Maxtang standard and exceed industry requirements.
We are confident that the product can cope with extreme
conditions like humid and hot environments for long periods.

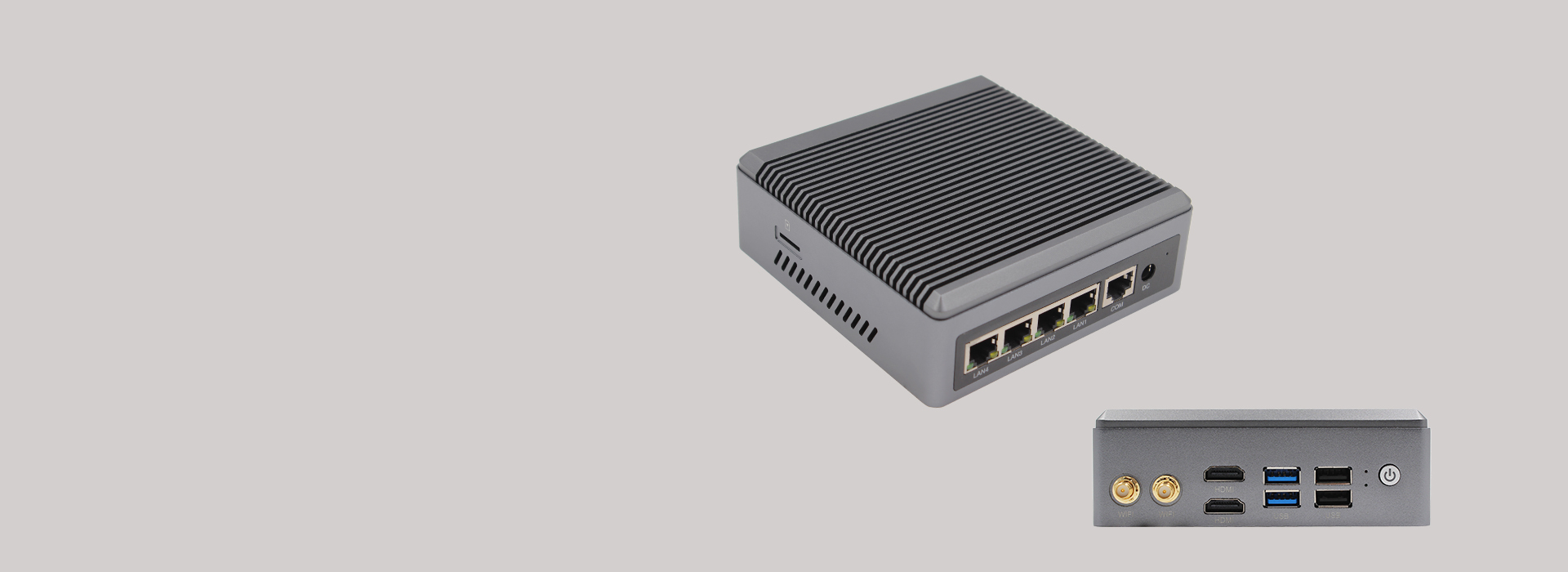

Comprehensive connectivity

It provides comprehensive connectivity with multiple ports
including 2x USB3.2, 2xUSB2.0，4xLAN, 1xCOM, SIM on the side
and 2xHDMI^®2.0 for dual independent display.

Vesa Mounted

Supports VESA mount compliant, allows for versatile integration into hardware systems.

Multiple Display

Display via 2xHDMI^® through Intel UHD graphics. Expanded visual experience, great for multitasking

Product description

The Maxtang’s NX6412-4L incorporated the Intel^® Elkhart Lake processors, offering you greater computing power with cost advantages. Supports 1xSO-DIMM DDR4 up to 32GB, dual independent displays via 2xHDMI^®2.0. A rich i/o interface includes 4xLAN, 2xUSB3.2, 2xUSB2.0, 1xCOM, 1xSIM, and up to 2.5GbE for high speed communication. It provides an excellent customer experience and a long-lasting life expectancy for future development.

Based on small form factors, the compact design at 127mm x 127mm x 43.5mm makes it great for space-saving. The PC has 1xM.2 for storage, 2.5-inch SATA optional, built-in Wi-Fi and Bluetooth, SIM slot for expansion. Desktop ready for easy installation. It builds with advanced cooling construction with a compact, fanless design and overcomes noise challenges. Its comprehensive connectivity makes it suitable for various applications.

Features

CPU: Intel^® Elkhart Lake J6412 Processor
Memory: Single Channel SO-DIMM DDR4 up to 32GB
Display via: Intel^® Integrated Graphics display via 2xHDMI^®2.0
I/O Ports: 4xLAN, 2xUSB3.2, 2xUSB2.0, 1xCOM, 1xSIM
Ethernet: 10/100/1000/2500Mbps, Intel^® i225/i226
Storage: 1x M.2 2242/2280 SSD, 2.5-inch SATA optional
Power: 12V DC-in

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
