Multiple display

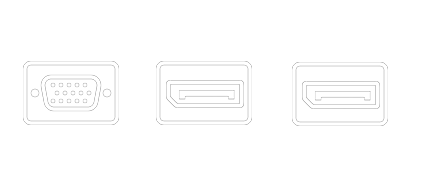

VGA+eDP+LVDS, Supports multiple display and gives you an extraordinary visual experience.
Wide Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
Office
Medical
Transportation
Industry
7COM 8USB
This mini embedded motherboard also has rich I/O interfaces, which meets the requirement of the market.
Product description

The MITX-BYT80 is a small form factor embedded motherboard. Built with Intel Celeron J1900 (2.00GHz, quad-core, TDP10W) or Celeron J1800 (2.41GHz, dual-core, TDP10W) which offers low power. This motherboard supports multiple display via VGA, eDP and LVDS interfaces, and it carries 1x singel-channel DDR3L 1333 up to 8GB RAM to add higher bandwidth and lower latencies for processing. It also features RTL8111F, 10Mbps/100Mbps/1000Mbps, 1 x LAN which makes this embedded system an ideal for applications like network security, firewall.


This compact mini embedded motherboard also has rich I/O interfaces as 1x DC_IN 12, 1x HDMI port(14 Pin header reserved), 1x VGA port(12 Pin header reserved), 1x USB3.0, 7x USB2.0, 2x LAN, 1x Mic-in, 1x Line-out , catering to most requirements in the market. This Celeron J1900 or J1800 based mini motherboard is designed to be high quality, reliable and secure.

Features
    • Bay Trail-D Celeron J1900/J1800 processor

    • Single channel DDR3L up to 8GB

    • Intel HD Graphics, supports VGA, LVDS, eDP, multiple display

    • 6×RS232

    • Support PXE, Wake-on-LAN, Auto-Power-on by hardware setting

    • Low power consumption, fan-less design

    • Sata2.0, mSata, Mini-PCIe
