Intel^® Whiskey Lake /Comet Lake U Processor

Intel^® Whiskey Lake/Comet Lake U processors bring integrated Gigabit Wi-Fi to the thin and light mainstream mini pcs for the first time, delivering up to 12 times faster connectivity speeds. It offers up to 2-times better performance and double-digit gains in office productivity for everyday web browsing and light content creation over the previous generation. This leap in connectivity and performance will help empower people to focus, create, and connect at home, and in the office.

Fanless, Ventless,
Dust-Resistant

The IXWL35 provides a powerful performance with efficiency
and reliability combined. Its fully made of aluminum enclosure
with fanless design, intend to protect internal components from
dust and debris in harsh industrial environment.

Rich I/O Interfaces

Features with 2x LAN, 6x COM, multiple display ports, VGA optional, caters to most market requirements.

Intel^® Processor

Choose between Intel® i3-10110U or i5-10210U for powerful performance with low power consumption. A great user experience of vivid content creation.

Multiple Display

Display via HDMI^®, DP, VGA (optional), Intel^® UHD graphics. Expanded visual experience, great for multitasking

Product description

The IXWL-35 is a compact, fanless embedded industrial PC powered by the Intel Whiskey Lake U/Comet Lake U processor. It supports dual-channel SO-DIMM DDR4 up to 64GB, a TDP rate of 15W, great for energy saving. A rich I/O interface includes HDMI, DP, two RJ45 gigabit network controllers, six serial ports(or 5 COM+1 VGA), and eight USB ports that cater to most market needs.

The system is an ideal solution for various industrial applications, features diverse I/O ports for easy integration, and ruggedized design for harsh environments. The fanless nature protects it from dust, particles,
chemical or moisture ingress. It provides a great user experience based on its stability and reliability.

Features

CPU: Intel® Whiskey Lake U/Comet Lake U processor
Memory: Dual Channel SO-DIMM DDR4 up to 64 GB
Display: Intel® UHD Graphics via HDMI, DP, VGA optional
Ethernet: 10/100/1000Mbps
Storage: SATA3.0, 1x M.2 for 2242 SSD/4G
Expansion: M.2 for WiFi
Power: 12V/19V DC input, Phoenix input optional

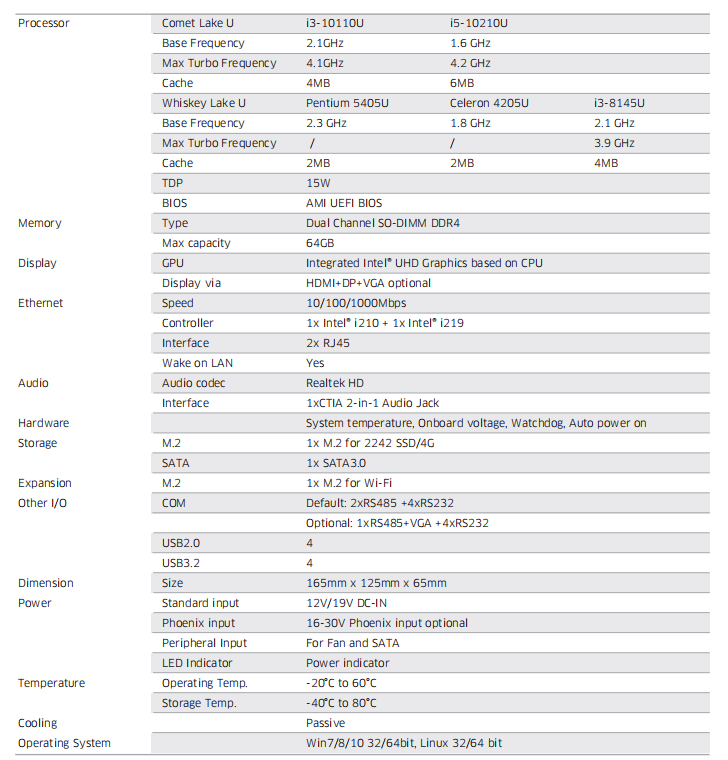

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

Datasheet_IXWL-35

Drivers Audio_Realtek_ALC662

Drivers Audio_Realtek_ALC897

Drivers LAN_Intel_1.0GbE

Drivers Intel Whiskey Lake Series

Drivers Intel Comet Lake Series
